KE70L-ECKDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )

Click highlighted areas on diagram

diagram 87107 87107 87114 87114 87116 87116 8712612010 87150 87150 9011906098 9011906098 9017906115 9017906115 9017906115 9351015016 9351015016 9356654512
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12231

KE70,TE71..LHD..GEN

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12231

KE70,TE71..LHD..GEN

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

CE70,KE70,TE7#

 4
87116 - SPRING, HEATER CASE FASTENING
87116-14010

CE70,KE70,TE7#

 4
87150 - RADIATOR ASSY, HEATER
87150-12081

KE70,TE71..LHD..GEN

 1
87150 - RADIATOR ASSY, HEATER
87150-12081

KE70,TE71..LHD..GEN

 1
Common parts
87126-12010
90119-06098
90179-06115
93510-15016
93566-54512

(7908- )

Click highlighted areas on diagram

diagram 8202 8401 87104 87105 87114 8711614010 8712612010 87130 87138 87138 87188 9009902134 9009902135 9009902210 9009905164 9011906098 9017906115 9351015016 9351024010 9351024010 9356654512 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12120

AE71,KE70,TE7#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

AE71,CE70,KE70,TE7#..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12030

KE70,TE7#..LHD

 1
87130-12031

KE70,TE7#..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-12100

KE70,TE7#..LHD

 1
87138-12090

KE70,TE7#

 1
87138 - RESISTOR, HEATER BLOWER
87138-12100

KE70,TE7#..LHD

 1
87138-12090

KE70,TE7#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-12020

KE70,TE7#..LHD

 1
Common parts
87116-14010
87126-12010
90099-02134
90099-02135
90099-02210
90099-05164
90119-06098
90179-06115
93510-15016
93510-24010
93566-54512
94115-40500
Linked diagrams
8202
8401

(7908- )GEN,SAA

Click highlighted areas on diagram

diagram 87116 8712612010 8712612010 88910 9011906098 9017906115 9351015016
Part # Description Qty Price
87116 - SPRING, HEATER CASE FASTENING
87116-14010

CE70,KE70,TE7#

 4

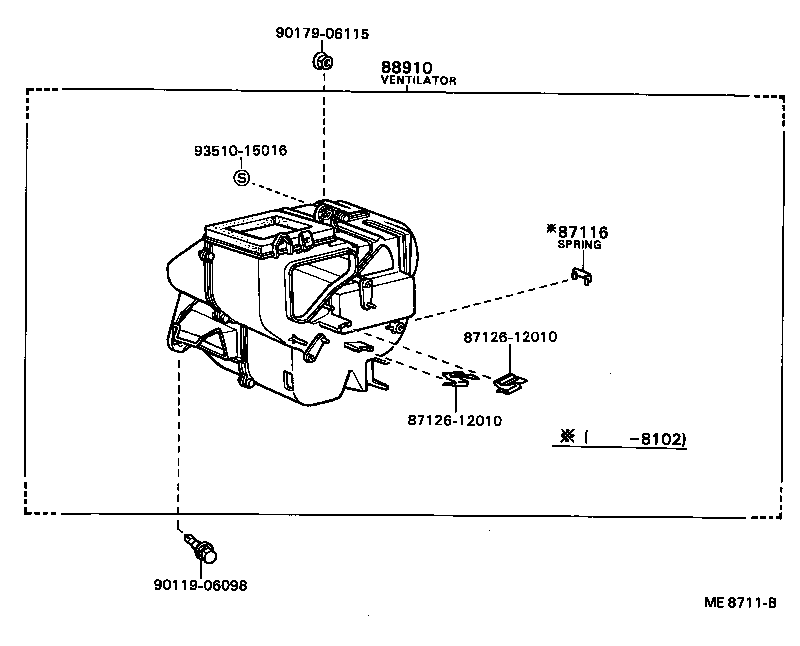

88910 - VENTILATOR ASSY, BOOST
88910-12021

AE71,KE70,TE71..LHD..(GEN,SAA)

 1
Common parts
87126-12010
90119-06098
90179-06115
93510-15016
