CE70LG-EWMDSW (1983)
Toyota Corolla

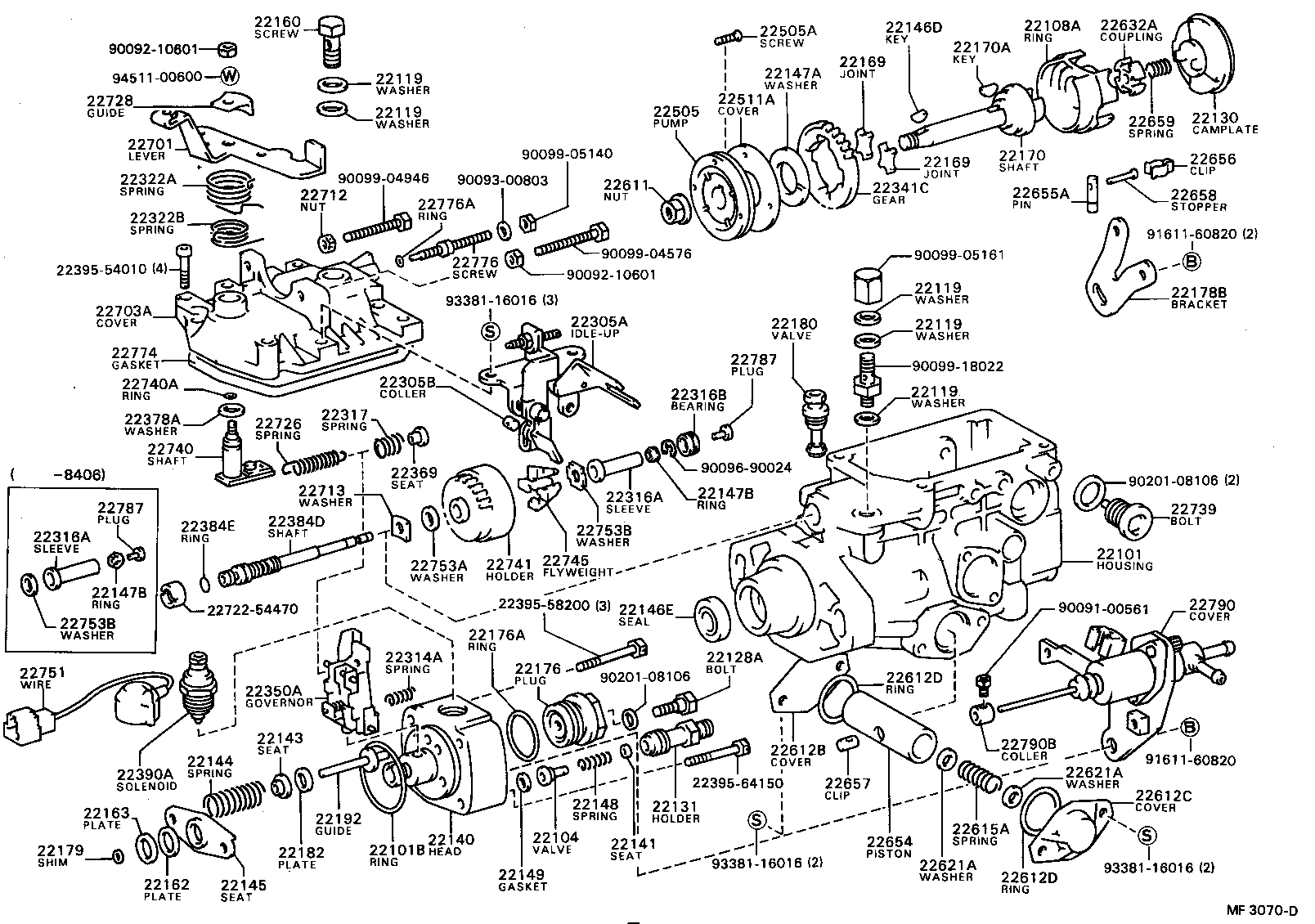

(8305-8508)1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64270 |
1C..CE70 |
1 | ||
| 22101-64230 |
1C..CE70 |
1 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
1C..CE70 |
1 | ||
| 22108-54010 |
1C..CE70 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-54170 |
1C..CE70 |
4 | ||
| 22190-64740 |
1C..CE70 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64150 |
1C..CE70 |
1 | ||
| 22140-64400 |
1C..CE70 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
1C..CE70 |
4 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
1C..CE70 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1C..CE70 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1C..CE70 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64230 |
1C..CE70 |
1 | ||
| 22305-64020 |
1C..CE70 |
1 | ||
| 22305B - COLLAR(FOR IDLE-UP) | ||||
| 22674-64151 |
1C..CE70 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64360 |
1C..CE70 |
1 | ||
| 22316-54351 |
1C..CE70 MARK 28 |
1 | ||
| 22316-54360 |
1C..CE70 ID=0.75 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64360 |
1C..CE70 |
1 | ||
| 22316-54351 |
1C..CE70 MARK 28 |
1 | ||
| 22316-54360 |
1C..CE70 ID=0.75 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1C..CE70 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64010 |
1C..CE70 |
1 | ||
| 22322B - SPRING, RETURN(INNER) | ||||
| 22322-64740 |
1C..CE70 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64020 |
1C..CE70 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
1C..CE70 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
1C..CE70 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54180 |
1C..CE70 K=3.00,L=37.3 |
1 | ||
| 22615-64010 |
1C..CE70 K=3.30,L=37.1 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
1C..CE70 T=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1C..CE70 T=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1C..CE70 T=1.0,T=1.0 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
1C..CE70 T=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1C..CE70 T=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1C..CE70 T=1.0,T=1.0 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-64740 |
1C..CE70 |
1 | ||
| 22654-64630 |
1C..CE70 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
1C..CE70 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1C..CE70 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-64820 |
1C..CE70 MARK"174" |
1 | ||
| 22701-64830 |
1C..CE70 MARK"175" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
1C..CE70 |
1 | ||
| 22703-54020 |
1C..CE70 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-6A060 |
1C..CE70 |
1 | ||
| 22726-64010 |
1C..CE70 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-64820 |
1C..CE70 |
1 | ||
| 22740-64010 |
1C..CE70 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1C..CE70 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1C..CE70 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
1C..CE70 L=3.4,L=3.4 |
1 | ||
| 22787-64641 |
1C..CE70 L=3.0,L=3.0 |
1 | ||
| 22787-54026 |
1C..CE70 L=3.3,L=3.3 |
1 | ||
| 22787-64661 |
1C..CE70 L=2.3,L=2.3 |
1 | ||
| 22787-64642 |
1C..CE70 L=3.1,L=3.1 |
1 | ||
| 22787-64666 |
1C..CE70 L=2.8,L=2.8 |
1 | ||
| 22787-64664 |
1C..CE70 L=2.6,L=2.6 |
1 | ||
| 22787-64665 |
1C..CE70 L=2.7,L=2.7 |
1 | ||
| 22787-64662 |
1C..CE70 L=2.4,L=2.4 |
1 | ||
| 22787-64667 |
1C..CE70 L=2.9,L=2.9 |
1 | ||
| 22787-64643 |
1C..CE70 L=3.2,L=3.2 |
1 | ||
| 22787-64663 |
1C..CE70 L=2.5,L=2.5 |
1 | ||
| 22787-64660 |
1C..CE70 L=2.2,L=2.2 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
1C..CE70 L=3.4,L=3.4 |
1 | ||
| 22787-64641 |
1C..CE70 L=3.0,L=3.0 |
1 | ||
| 22787-54026 |
1C..CE70 L=3.3,L=3.3 |
1 | ||
| 22787-64661 |
1C..CE70 L=2.3,L=2.3 |
1 | ||
| 22787-64642 |
1C..CE70 L=3.1,L=3.1 |
1 | ||
| 22787-64666 |
1C..CE70 L=2.8,L=2.8 |
1 | ||
| 22787-64664 |
1C..CE70 L=2.6,L=2.6 |
1 | ||
| 22787-64665 |
1C..CE70 L=2.7,L=2.7 |
1 | ||
| 22787-64662 |
1C..CE70 L=2.4,L=2.4 |
1 | ||
| 22787-64667 |
1C..CE70 L=2.9,L=2.9 |
1 | ||
| 22787-64643 |
1C..CE70 L=3.2,L=3.2 |
1 | ||
| 22787-64663 |
1C..CE70 L=2.5,L=2.5 |
1 | ||
| 22787-64660 |
1C..CE70 L=2.2,L=2.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22601-64160 |
1C..CE70 |
1 | ||
| 22601-64150 |
1C..CE70 |
1 | ||
| 22790-64740 |
1C..CE70 |
1 | ||
| 22790B - COLLAR(FOR TIMER COVER) | ||||
| 22674-64150 |
1C..CE70 |
1 | ||
| Common parts | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22395-64150 | ||||
| 22722-54470 | ||||
| 90091-00561 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 91611-60820 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||

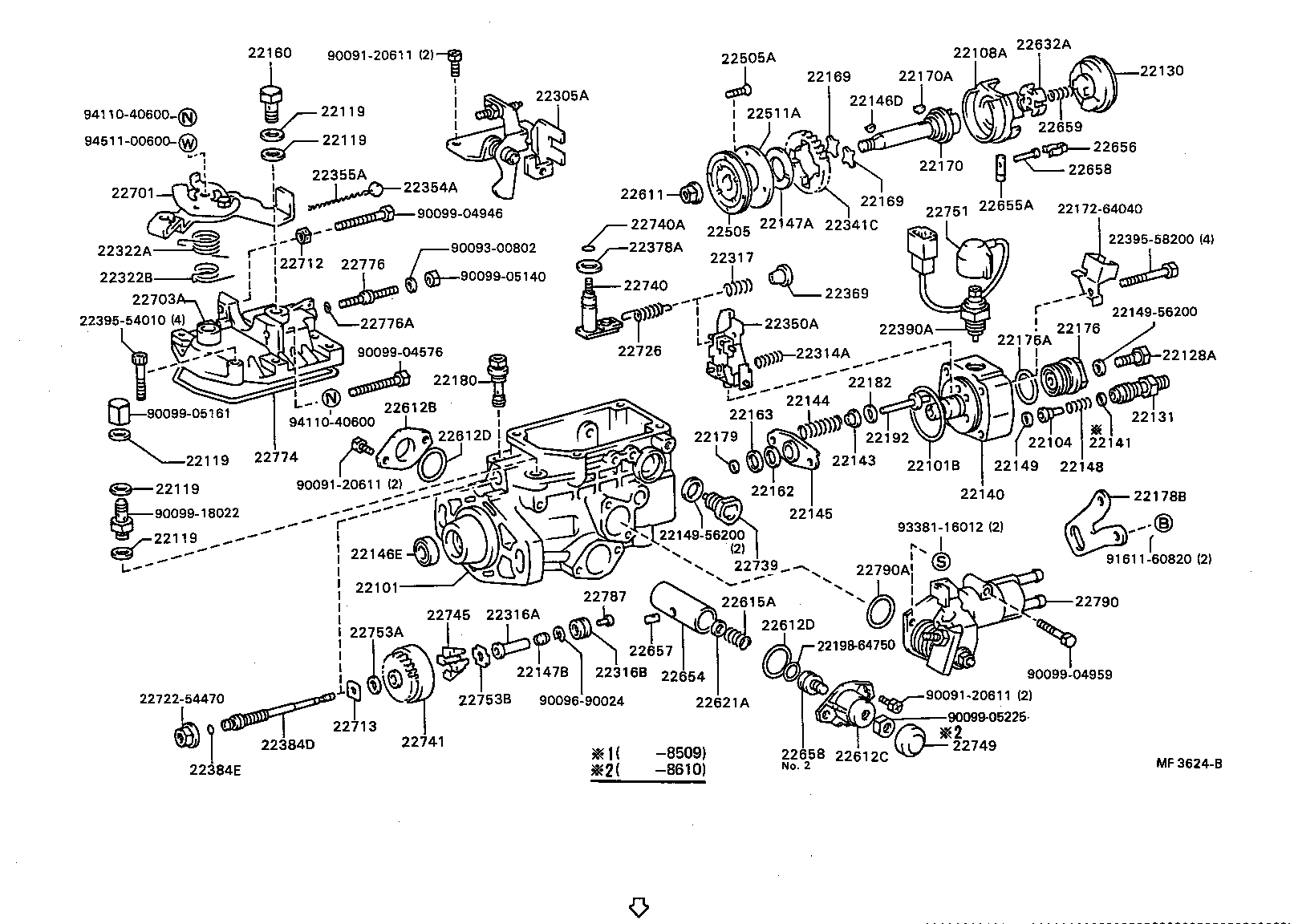

(8508- )1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64270 |
1C..CE70 |
1 | ||
| 22101-64230 |
1C..CE70 |
1 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
1C..CE70 |
1 | ||
| 22108-54010 |
1C..CE70 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1C..CE70 |
5 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-54170 |
1C..CE70 |
4 | ||
| 22190-64740 |
1C..CE70 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64150 |
1C..CE70 |
1 | ||
| 22140-64400 |
1C..CE70 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
1C..CE70 |
4 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
1C..CE70 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1C..CE70 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64230 |
1C..CE70 |
1 | ||
| 22305-64020 |
1C..CE70 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64360 |
1C..CE70 |
1 | ||
| 22316-54351 |
1C..CE70 MARK 28 |
1 | ||
| 22316-54360 |
1C..CE70 ID=0.75 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1C..CE70 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64010 |
1C..CE70 |
1 | ||
| 22322B - SPRING, RETURN(INNER) | ||||
| 22322-64740 |
1C..CE70 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64020 |
1C..CE70 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
1C..CE70 |
2 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
1C..CE70 |
2 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
1C..CE70 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
1C..CE70 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54180 |
1C..CE70 K=3.00,L=37.3 |
1 | ||
| 22615-64010 |
1C..CE70 K=3.30,L=37.1 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
1C..CE70 T=0.5,T=0.5 |
1 | ||
| 22625-54271 |
1C..CE70 T=0.2,T=0.2 |
1 | ||
| 22625-54277 |
1C..CE70 T=1.0,T=1.0 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-64740 |
1C..CE70 |
1 | ||
| 22654-64630 |
1C..CE70 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
1C..CE70 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
1C..CE70 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1C..CE70 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-64820 |
1C..CE70 MARK"174" |
1 | ||
| 22701-64830 |
1C..CE70 MARK"175" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
1C..CE70 |
1 | ||
| 22703-54020 |
1C..CE70 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-6A060 |
1C..CE70 |
1 | ||
| 22726-64010 |
1C..CE70 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-64820 |
1C..CE70 |
1 | ||
| 22740-64010 |
1C..CE70 |
1 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-54450 |
1C..CE70 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
1C..CE70 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
1C..CE70 L=3.4,L=3.4 |
1 | ||
| 22787-64641 |
1C..CE70 L=3.0,L=3.0 |
1 | ||
| 22787-54026 |
1C..CE70 L=3.3,L=3.3 |
1 | ||
| 22787-64661 |
1C..CE70 L=2.3,L=2.3 |
1 | ||
| 22787-64642 |
1C..CE70 L=3.1,L=3.1 |
1 | ||
| 22787-64666 |
1C..CE70 L=2.8,L=2.8 |
1 | ||
| 22787-64664 |
1C..CE70 L=2.6,L=2.6 |
1 | ||
| 22787-64665 |
1C..CE70 L=2.7,L=2.7 |
1 | ||
| 22787-64662 |
1C..CE70 L=2.4,L=2.4 |
1 | ||
| 22787-64667 |
1C..CE70 L=2.9,L=2.9 |
1 | ||
| 22787-64643 |
1C..CE70 L=3.2,L=3.2 |
1 | ||
| 22787-64663 |
1C..CE70 L=2.5,L=2.5 |
1 | ||
| 22787-64660 |
1C..CE70 L=2.2,L=2.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22601-64160 |
1C..CE70 |
1 | ||
| 22601-64150 |
1C..CE70 |
1 | ||
| 22790-64740 |
1C..CE70 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1C..CE70 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-64040 | ||||
| 22198-64750 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90091-20611 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-04959 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
