CE70L-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8305)4D ; (8305-8308)SAA

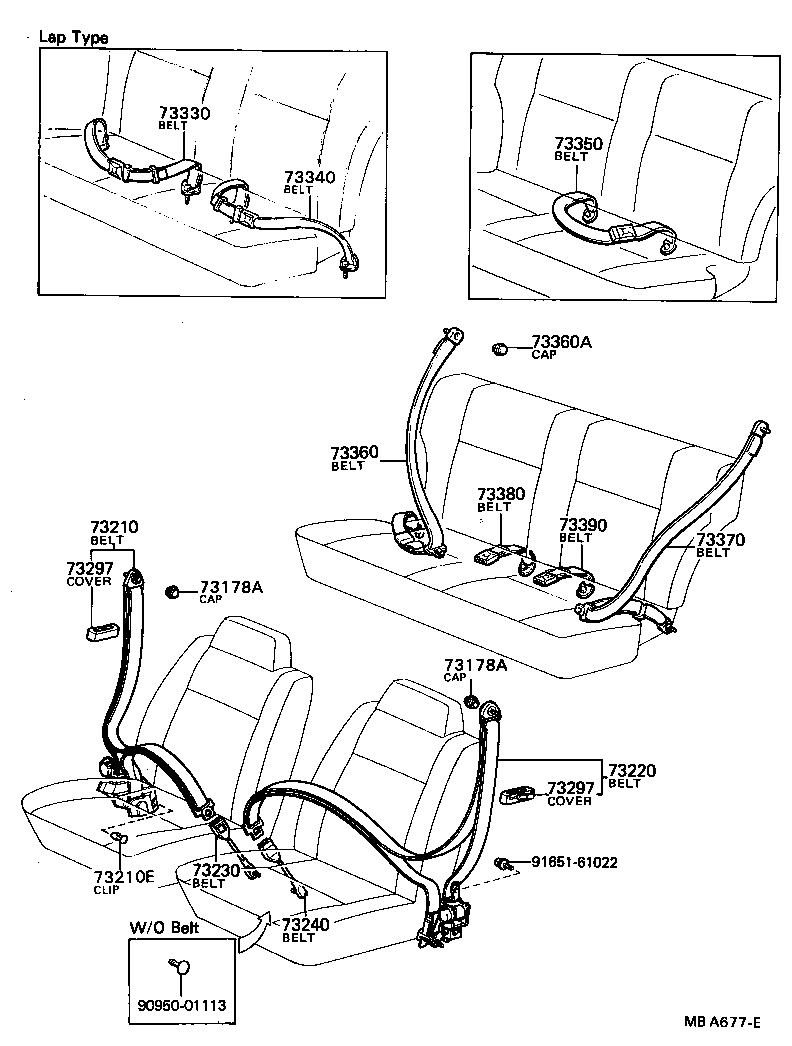

Click highlighted areas on diagram

diagram 73178A 73178A 73210 73210E 73220 73230 73240 73297 73297 73330 73340 73350 73360 73360A 73370 73380 73390 9095001113 9165161022
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-1201026

CE70,KE70,TE71..(DV,SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 2
73178-1201011

CE70,KE70,TE71..(DV,SED,WG)..EUR

BLACK,BLACK,TRIM0#,2#

 2
73178-1201004

CE70,KE70,TE71..(DV,SED,WG)..EUR

BLUE,BLUE,TRIM8#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-1201026

CE70,KE70,TE71..(DV,SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 2
73178-1201011

CE70,KE70,TE71..(DV,SED,WG)..EUR

BLACK,BLACK,TRIM0#,2#

 2
73178-1201004

CE70,KE70,TE71..(DV,SED,WG)..EUR

BLUE,BLUE,TRIM8#

 2
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1202004

CE70,KE70,TE71..4D..(EUR,GEN,SAA)

RH,BLUE,BLUE,TRIM8#

 1
73298-1202004

CE70,KE70,TE71..4D..(EUR,GEN,SAA)

LH,BLUE,BLUE,TRIM8#

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1202004

CE70,KE70,TE71..4D..(EUR,GEN,SAA)

RH,BLUE,BLUE,TRIM8#

 1
73298-1202004

CE70,KE70,TE71..4D..(EUR,GEN,SAA)

LH,BLUE,BLUE,TRIM8#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1201004

CE70,KE70,TE71..SED..LHD..EUG

BLUE,BLUE,TRIM8#

 1
73350-1201001

CE70,KE70,TE71..SED..LHD..EUG

BLACK,BLACK,TRIM0#,2#

 1
73360A - CAP, REAR SEAT BELT ANCHOR
73178-1201004

TE72..SDN;CE70,KE70,TE71..EUR

BLUE,BLUE,TRIM8#

 2
73178-1201011

TE72..SDN;CE70,KE70,TE71..EUR

BLACK,BLACK,TRIM0#,2#

 2
Common parts
90950-01113
91651-61022
