CE70L-EDMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8305)TE71..RHD..GEN ; (7908- )KE70..LHD..EUR ; (8007- )SA ; (8210-8305)

Click highlighted areas on diagram

.RHD

diagram 44610 44610 44610 44696 44696 44730Q 44730Q 44731 44731 44731 44785 44785 44785 9017908038 9017908038 9017908038
Part # Description Qty Price
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
Common parts
90179-08038

(7908-8305)TE71..RHD..GEN ; (7908- )KE70..LHD..EUR ; (8007- )SA ; (8210-8305)

Click highlighted areas on diagram

.RHD

diagram 04443 44608 44626 44629 44642 44643 44647 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 9331914008
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12230

CE70..LHD

AISIN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

CE70..LHD

AISIN

 1
Common parts
93319-14008

(8210- )CE70..LHD ; (8501- )CE70..RHD

Click highlighted areas on diagram

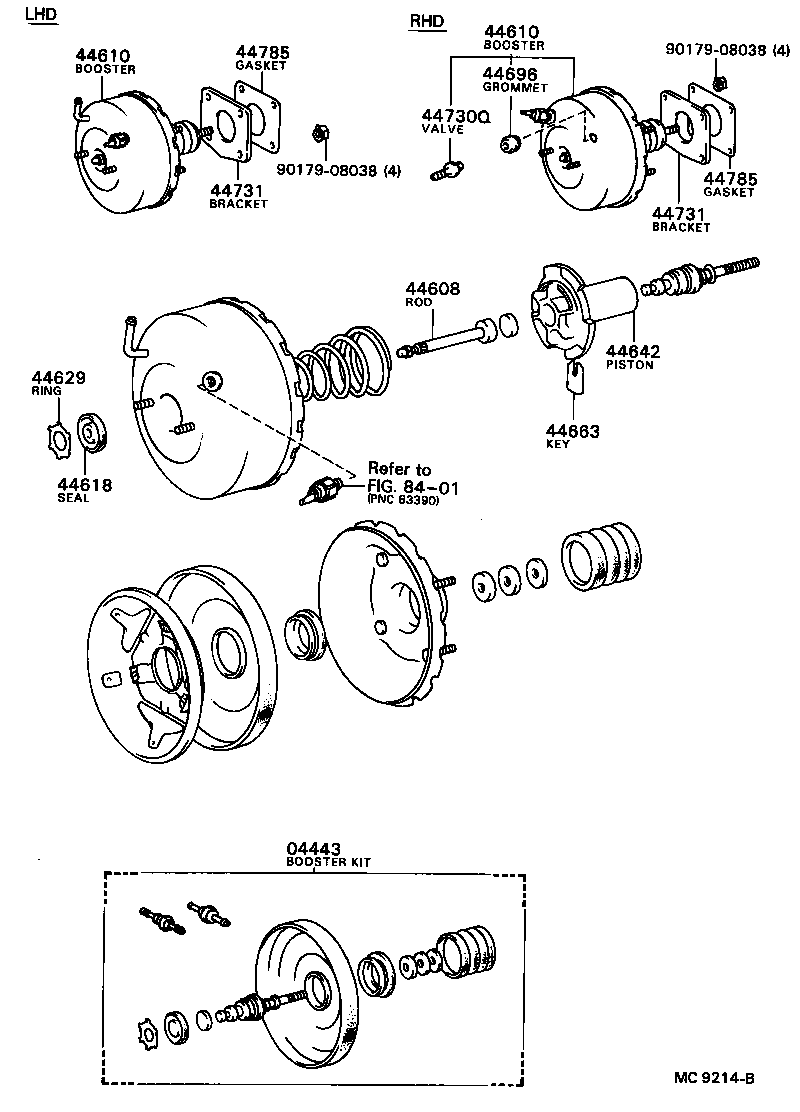

diagram 04443 44608 44610 44610 44618 44629 44642 44663 44696 44730Q 44731 44731 44785 44785 8401 9017908038 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12230

CE70..LHD

AISIN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

CE70..LHD

AISIN

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
Common parts
90179-08038
Linked diagrams
8401

(8210-8305)CE70

Click highlighted areas on diagram

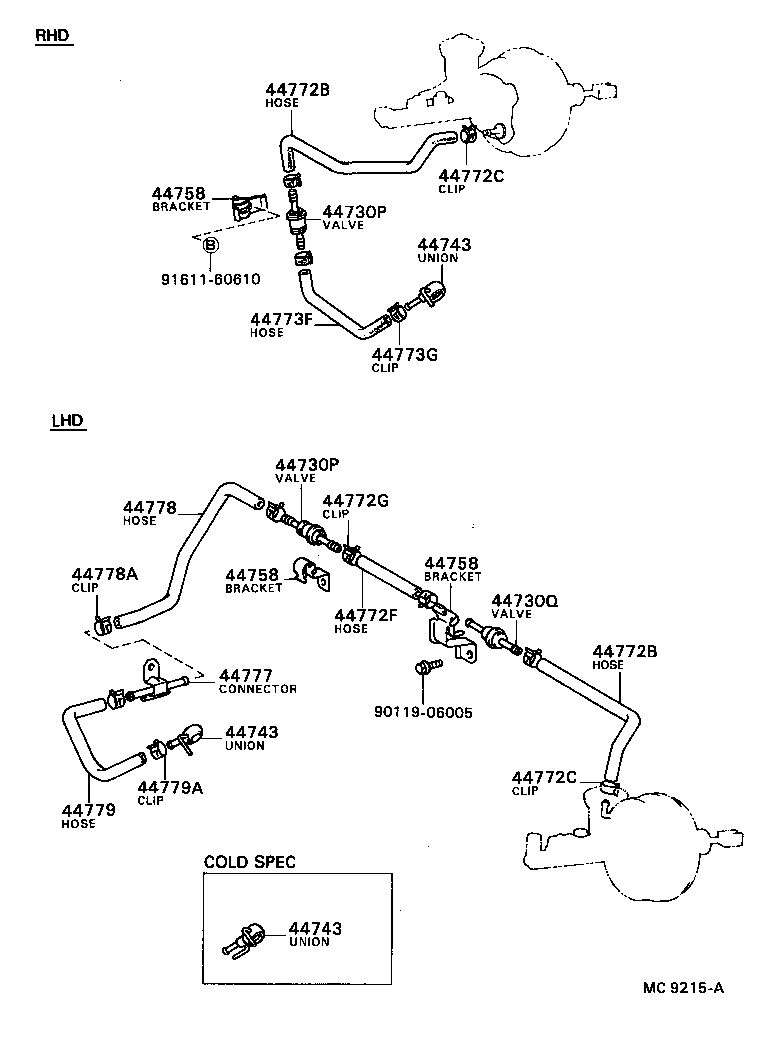

diagram 44730P 44730P 44730Q 44743 44743 44743 44758 44758 44758 44772B 44772B 44772C 44772C 44772F 44772G 44773F 44773G 44777 44778 44778A 44779 44779A 9011906005 9161160610
Part # Description Qty Price
44743 - UNION(FOR VACUUM PUMP)
90405-09058

CE70..LHD

COLD SPEC

 1
90405-09057

CE70

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09058

CE70..LHD

COLD SPEC

 1
90405-09057

CE70

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09058

CE70..LHD

COLD SPEC

 1
90405-09057

CE70

 1
44772F - HOSE, CHECK VALVE TO CHECK VALVE
90445-17053

CE70..LHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44763-32010

CE70..LHD

 1
44763-32011

CE70..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44772-12160

CE70..LHD

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002

CE70..LHD

 2
44779 - HOSE, UNION TO CONNECTOR
44774-12020

CE70..LHD

 1
44779A - CLIP(FOR UNION TO CONNECTOR HOSE)
90467-16002

CE70..LHD

 2
Common parts
90119-06005
91611-60610
