AE71R-EEHDCQ (1983)

Toyota Corolla

Production May 1983 - Oct 1984
Engine 4AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4A#

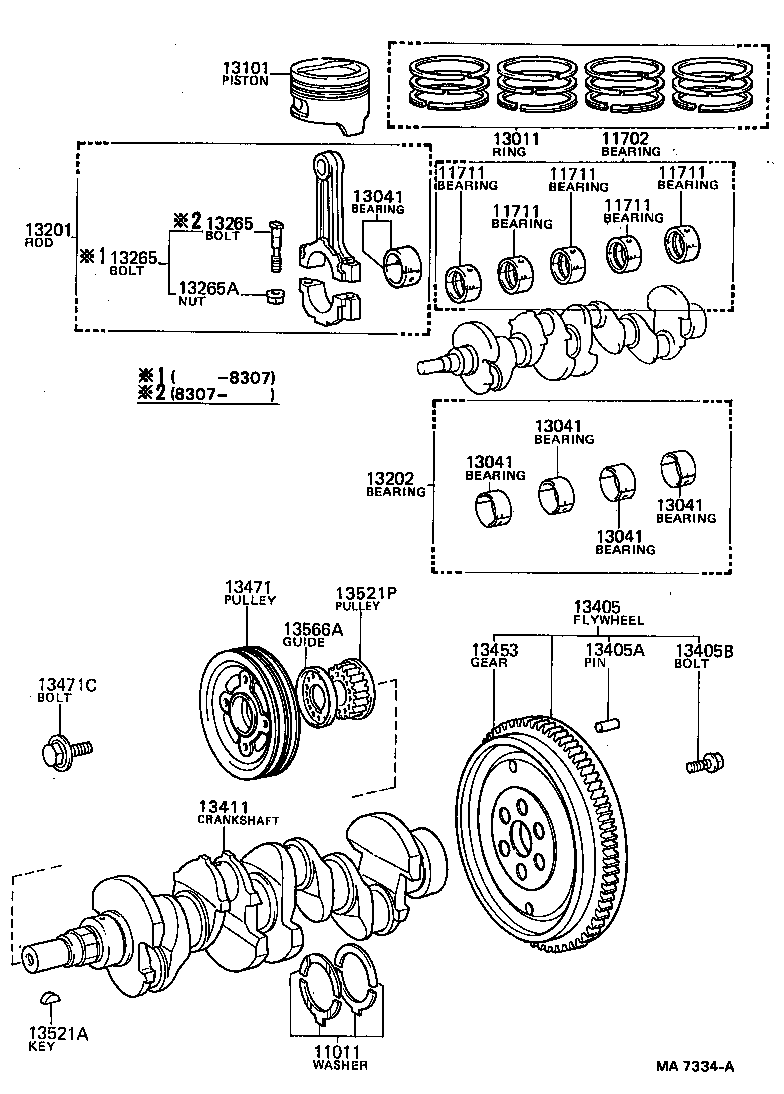

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P 13566A
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-1503003

4AC..AE71

MARK"3",MARK 3

 5
11701-1503001

4AC..AE71

MARK"1",MARK 1

 5
11701-1503002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601001

4AC..AE71

MARK"1",MARK 1

 5
11701-1601002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601003

4AC..AE71

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1503003

4AC..AE71

MARK"3",MARK 3

 5
11701-1503001

4AC..AE71

MARK"1",MARK 1

 5
11701-1503002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601001

4AC..AE71

MARK"1",MARK 1

 5
11701-1601002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601003

4AC..AE71

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1503003

4AC..AE71

MARK"3",MARK 3

 5
11701-1503001

4AC..AE71

MARK"1",MARK 1

 5
11701-1503002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601001

4AC..AE71

MARK"1",MARK 1

 5
11701-1601002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601003

4AC..AE71

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1503003

4AC..AE71

MARK"3",MARK 3

 5
11701-1503001

4AC..AE71

MARK"1",MARK 1

 5
11701-1503002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601001

4AC..AE71

MARK"1",MARK 1

 5
11701-1601002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601003

4AC..AE71

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-1503003

4AC..AE71

MARK"3",MARK 3

 5
11701-1503001

4AC..AE71

MARK"1",MARK 1

 5
11701-1503002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601001

4AC..AE71

MARK"1",MARK 1

 5
11701-1601002

4AC..AE71

MARK"2",MARK 2

 5
11701-1601003

4AC..AE71

MARK"3",MARK 3

 5
13041 - BEARING, CONNECTING ROD
13041-1501103

4AC..AE71

MARK"3",MARK 3

 4
13041-1501101

4AC..AE71

MARK"1",MARK 1

 4
13041-1501102

4AC..AE71

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4AC..AE71

MARK"3",MARK 3

 4
13041-1501101

4AC..AE71

MARK"1",MARK 1

 4
13041-1501102

4AC..AE71

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4AC..AE71

MARK"3",MARK 3

 4
13041-1501101

4AC..AE71

MARK"1",MARK 1

 4
13041-1501102

4AC..AE71

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4AC..AE71

MARK"3",MARK 3

 4
13041-1501101

4AC..AE71

MARK"1",MARK 1

 4
13041-1501102

4AC..AE71

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1501103

4AC..AE71

MARK"3",MARK 3

 4
13041-1501101

4AC..AE71

MARK"1",MARK 1

 4
13041-1501102

4AC..AE71

MARK"2",MARK 2

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-19045

4AC..AE71

 4
13201-19016

4AC..AE71

 4
13202 - BEARING SET, CONNECTING ROD
13204-15011

4AC..AE71

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-19015

4AC..AE71

 8
13265 - BOLT, CONNECTING ROD
13265-19015

4AC..AE71

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-08014

4AC..AE71

 8
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4A#..AE71

 1
