AE71LG-EWHDS (1985)
Toyota Corolla
Production
Aug 1985
-
Jul 1987
Engine
4A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )AE71..GEN

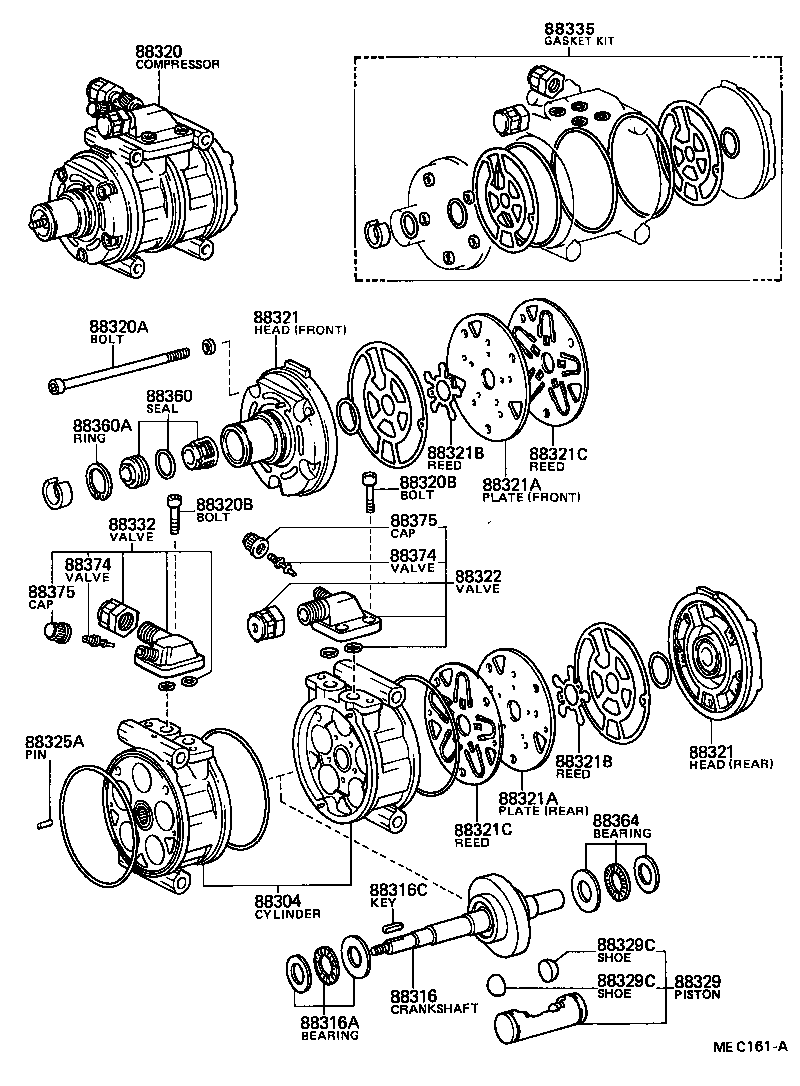

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14041 |
AE71..GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14021 |
AE71..GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
AE71..GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13012 |
AE71..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12240 |
AE71..GEN |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
AE71..GEN |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
AE71..GEN |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
AE71..GEN |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AE71..GEN RR |
1 | ||
| 88321-14011 |
AE71..GEN FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
AE71..GEN RR |
1 | ||
| 88321-14011 |
AE71..GEN FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
AE71..GEN FR |
1 | ||
| 88342-14010 |
AE71..GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
AE71..GEN FR |
1 | ||
| 88342-14010 |
AE71..GEN RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AE71..GEN |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
AE71..GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AE71..GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
AE71..GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-22140 |
AE71..GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
AE71,KE70,TE71..GEN,SAA |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
AE71..GEN |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
AE71..GEN |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
AE71..GEN |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-12160 |
AE71..GEN |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
AE71..GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
AE71..GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE71..GEN |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
AE71..GEN |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
AE71,KE70,TE71..GEN,SAA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
AE71,KE70,TE71..GEN,SAA |
2 | ||
