TE51R-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7603-7908)LB

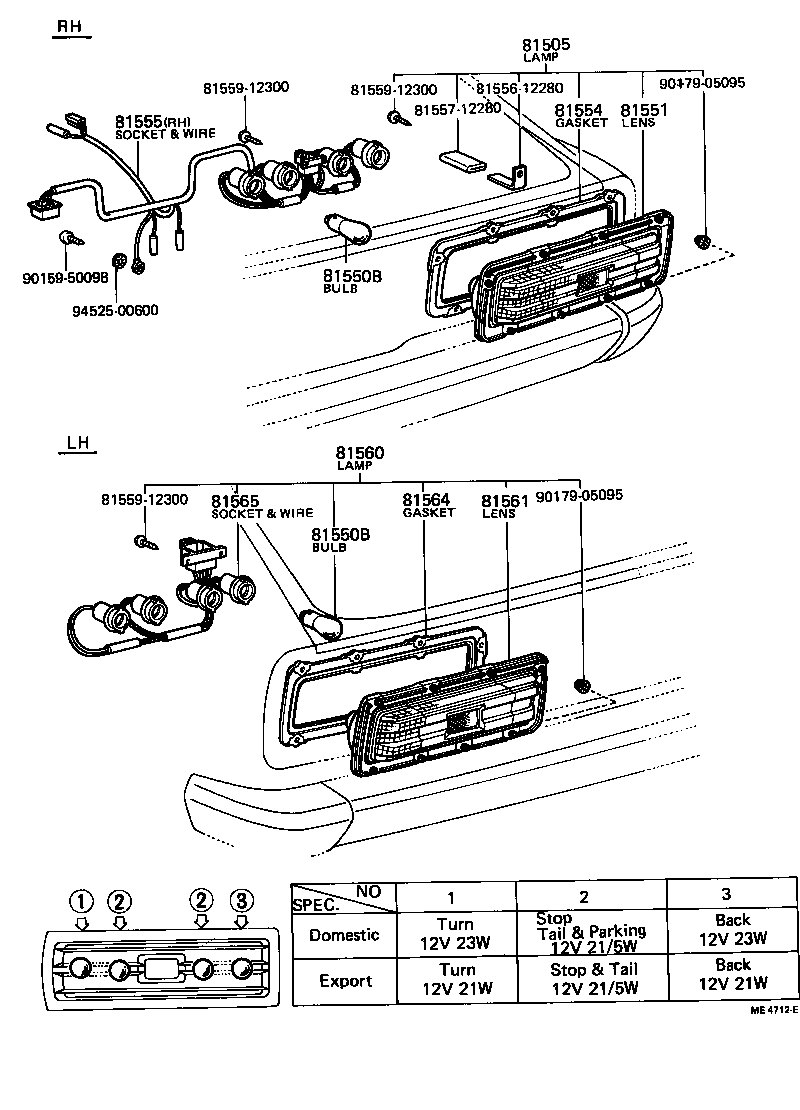

Click highlighted areas on diagram

diagram 81505 81550B 81550B 81551 81554 81555 8155612280 8155712280 8155912300 8155912300 8155912300 81560 81561 81564 81565 9015950098 9017905095 9017905095 9452500600
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19025

KE5#,TE51..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12370

KE5#,TE51..LB

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12280

KE5#,TE51..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12370

KE50,TE51

 1
81555-12371

KE5#,TE51..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19795

KE5#,TE51..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12370

KE5#,TE51..LB

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12280

KE5#,TE51..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12370

KE5#,TE51..LB

 1
Common parts
81556-12280
81557-12280
81559-12300
90159-50098
90179-05095
94525-00600
