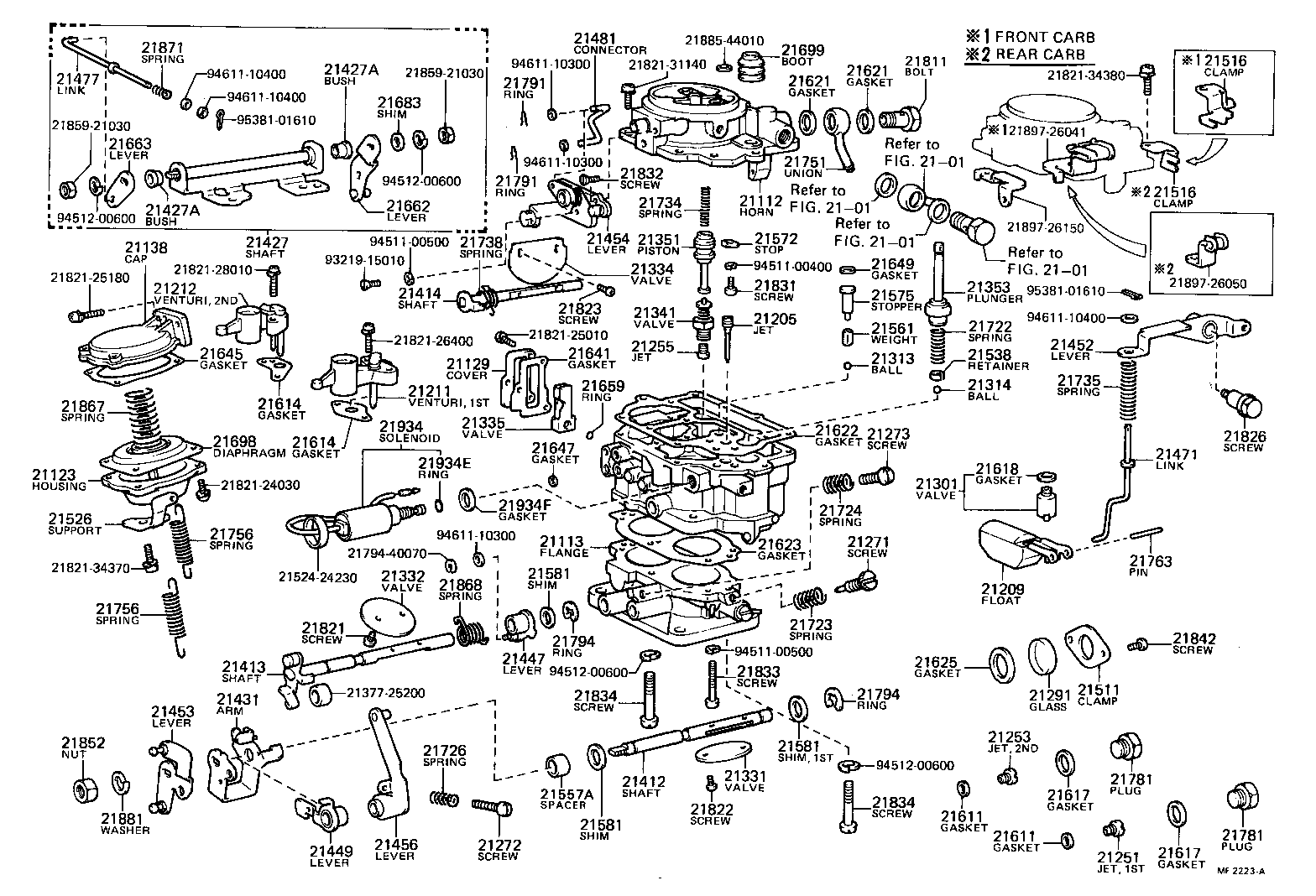

TE51R-LMQB (1976)
Toyota Corolla/Trueno
(7408-8004)2TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21112-26721 |
2T..TE31,47,51..MTM |
1 | ||
| 21112-26052 |
2TB..TE3#,47,51 RR CARBURETOR |
1 | ||
| 21112-26042 |
2TB..TE3#,47,51 FR CARBURETOR |
1 | ||
| 21113 - FLANGE, CARBURETOR | ||||
| 21103-26441 |
2T..TE3#,47,51 |
1 | ||
| 21113-26053 |
2TB..TE47,51 RR CARBURETOR |
1 | ||
| 21123 - HOUSING, DIAPHRAGM | ||||
| 21123-44100 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-26040 |
2TB..TE3#,47,51 ID=0.47 |
2 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-26042 |
2TB..TE3#,47,51 |
2 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41080 |
2TB..TE3#,47,51 ID=0.80 |
2 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42132 |
2TB..TE3#,47,51 ID=1.32 |
2 | ||
| 21255 - JET, POWER | ||||
| 21255-26040 |
2TB..TE3#,47,51 ID=0.47 |
2 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26100 |
2TB..TE47,51 |
2 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-30052 |
2TB..TE3#,47,51 |
2 | ||
| 21828-25180 |
2T..TE3#,47,51 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-60200 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-25010 |
2T..TE3#,47,51 |
1 | ||
| 21335-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-26440 |
2T..TE3#,47,51 |
1 | ||
| 21414-31022 |
2TB..TE3#,47,51 |
2 | ||
| 21427 - SHAFT, CHOKE CONNECTOR | ||||
| 21414-26250 |
2TB..TE47,51 |
1 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
2TB..TE47,51 |
2 | ||
| 21427A - BUSH, SHAFT CHOKE CONNECTOR | ||||
| 21895-22060 |
2TB..TE47,51 |
2 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-26041 |
2TB..TE3#,47,51 |
2 | ||
| 21447 - LEVER, DIAPHRAGM | ||||
| 21447-44100 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21449 - LEVER, 2ND KICK | ||||
| 21449-26041 |
2TB..TE3#,47,51 |
2 | ||
| 21452 - LEVER, PUMP | ||||
| 21452-26220 |
2TB..TE3#,47,51 |
2 | ||
| 21453 - LEVER, 1ST THROTTLE | ||||
| 21453-27011 |
2T..TE31,47,51..RHD |
1 | ||
| 21453-26042 |
2TB..TE3#,47,51 |
2 | ||
| 21454 - LEVER, CHOKE | ||||
| 21454-26042 |
2TB..TE3#,47,51 |
2 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-26041 |
2TB..TE3#,47,51 |
2 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21471-27011 |
2T..TE3#,47,51 |
1 | ||
| 21471-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21477 - LINK, CHOKE LEVER | ||||
| 21478-26051 |
2TB..TE3#,47,51 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-33010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21516 - CLAMP, CONNECTOR | ||||
| 21574-26140 |
2T..TE3#,47,51 |
1 | ||
| 21574-26220 |
2TB..TE3#,47,51 FR CARBURETOR |
1 | ||
| 21574-26200 |
2TB..TE3#,47,51 RR CARBURETOR |
1 | ||
| 21516 - CLAMP, CONNECTOR | ||||
| 21574-26140 |
2T..TE3#,47,51 |
1 | ||
| 21574-26220 |
2TB..TE3#,47,51 FR CARBURETOR |
1 | ||
| 21574-26200 |
2TB..TE3#,47,51 RR CARBURETOR |
1 | ||
| 21526 - SUPPORT, BACK SPRING | ||||
| 21526-44100 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21557A - SPACER, NO.2 | ||||
| 21557-60200 |
2T,2TB..TE3#,47,51 |
1 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21585-25010 |
2T,2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21582-25010 |
2T,2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21581-25010 |
2T,2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21583-25010 |
2T,2TB..TE3#,47,51 T=0.6 |
1 | ||
| 21583-21010 |
2T,2TB..TE3#,47,51 T=0.6,(2TB=2ND) |
2 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21585-25010 |
2T,2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21582-25010 |
2T,2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21581-25010 |
2T,2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21583-25010 |
2T,2TB..TE3#,47,51 T=0.6 |
1 | ||
| 21583-21010 |
2T,2TB..TE3#,47,51 T=0.6,(2TB=2ND) |
2 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21585-25010 |
2T,2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21582-25010 |
2T,2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21581-25010 |
2T,2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21583-25010 |
2T,2TB..TE3#,47,51 T=0.6 |
1 | ||
| 21583-21010 |
2T,2TB..TE3#,47,51 T=0.6,(2TB=2ND) |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33080 |
2T,2TB..TE3#,47,51 2ND VENTURI |
2 | ||
| 21614-33010 |
2T,2TB..TE3#,47,51 1ST VENTURI |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33080 |
2T,2TB..TE3#,47,51 2ND VENTURI |
2 | ||
| 21614-33010 |
2T,2TB..TE3#,47,51 1ST VENTURI |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-24030 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-30010 |
2T..TE3#,47,51 |
1 | ||
| 21633-24030 |
2T,2TB..TE3#,47,51 FUEL INLET |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-30010 |
2T..TE3#,47,51 |
1 | ||
| 21633-24030 |
2T,2TB..TE3#,47,51 FUEL INLET |
2 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21645-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21641-24030 |
2T,2TB..TE3#,47,51 |
1 | ||
| 21662 - LEVER, CHOKE CONNECTOR SHAFT, NO.1 | ||||
| 21454-26051 |
2TB..TE47,51 |
1 | ||
| 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 | ||||
| 21664-26041 |
2TB..TE47,51 |
1 | ||
| 21683 - SHIM, CHOKE CONNECTOR SHAFT | ||||
| 21681-21060 |
2TB..TE47,51 T=0.1 |
1 | ||
| 21682-21060 |
2TB..TE47,51 T=0.2 |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-25010 |
2T..TE3#,47,51 |
1 | ||
| 21669-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
2TB..TE3#,47,51 |
2 | ||
| 21734-33080 |
2T..TE3#,47,51 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-21032 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21738-26040 |
2TB..TE3#,47,51 |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 90405-06167 |
2T,2TB..TE3#,47,51 FUEL INLET |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-26040 |
2TB..TE3#,47,51 WD=1.2,CW=11 |
2 | ||
| 21756-31270 |
2T..TE3#,47,51 WD=1.0,CW=11.5 |
1 | ||
| 21756-33080 |
2T,2TB..TE3#,47,51 WD=0.9,CW=20.5 |
2 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-26040 |
2TB..TE3#,47,51 WD=1.2,CW=11 |
2 | ||
| 21756-31270 |
2T..TE3#,47,51 WD=1.0,CW=11.5 |
1 | ||
| 21756-33080 |
2T,2TB..TE3#,47,51 WD=0.9,CW=20.5 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2T,2TB..TE3#,47,51 |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2T,2TB..TE3#,47,51 |
6 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-34031 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-44101 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) | ||||
| 21832-31020 |
2TB..TE3#,47,51 |
2 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31140 |
2T,2TB..TE3#,47,51 2T=1 (7511- ) |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31140 |
2T,2TB..TE3#,47,51 2T=1 (7511- ) |
4 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21867 - SPRING, DIAPHRAGM | ||||
| 21867-41010 |
2TB..TE3#,47,51 |
2 | ||
| 21868 - SPRING, DIAPHRAGM RELIEF | ||||
| 21868-33080 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21871 - SPRING, CHOKE CONNECTING LINK | ||||
| 21864-22060 |
2TB..TE3#,47,51 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2T,2TB..TE3#,47,51 |
4 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-26130 |
2TB..TE3#,47,51 RR CARBURETOR |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2T,2TB..TE3#,47,51 3KH=AUSTRALIA SPEC |
2 | ||
| 21655-44101 |
2T,2TB..TE3#,47,51 |
2 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2T,2TB..TE3#,47,51 |
2 | ||
| Common parts | ||||
| 21377-25200 | ||||
| 21524-24230 | ||||
| 21794-40070 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21859-21030 | ||||
| 21885-44010 | ||||
| 21897-26041 | ||||
| 21897-26050 | ||||
| 21897-26150 | ||||
| 93219-15010 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
| Linked diagrams | ||||
| 2101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
