TE51R-LKDW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7701-7908)LB

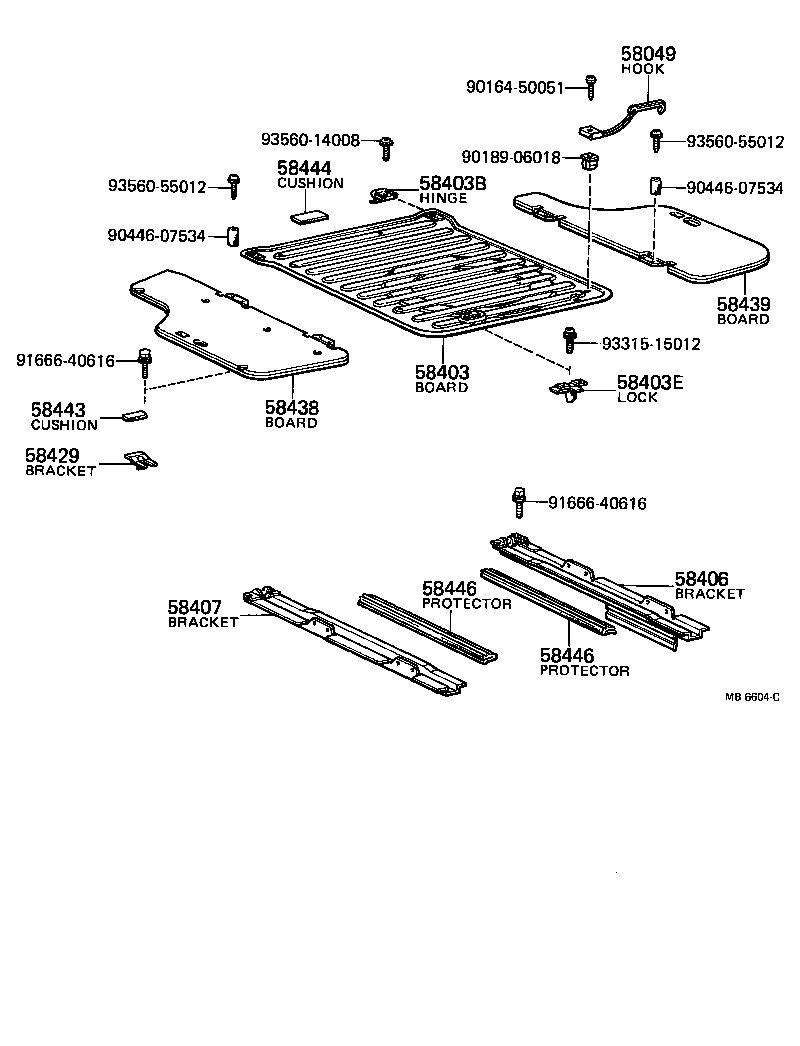

Click highlighted areas on diagram

diagram 58049 58403 58403B 58403E 58406 58407 58429 58438 58439 58443 58444 58446 58446 9016450051 9018906018 9044607534 9044607534 9166640616 9166640616 9331515012 9356014008 9356055012 9356055012
Part # Description Qty Price
58403 - BOARD SUB-ASSY, DECK
58412-12900

KE5#,TE51..LB

 1
58406 - BRACKET SUB-ASSY, DECK BOARD, RH
58406-12030

KE5#,TE51..LB

 1
58407 - BRACKET SUB-ASSY, DECK BOARD, LH
58407-12020

KE5#,TE51..LB

 1
58429 - BRACKET, DECK BOARD, NO.4
58427-12010

KE50,TE51

 1
58438 - BOARD, DECK, NO.2
58438-12020

KE5#,TE51..LB

 1
58439 - BOARD, DECK, NO.1
58411-12030

KE5#,TE51..LB

 1
58443 - CUSHION, DECK BOARD, NO.1
58445-12020

KE5#,TE51..LB

 1
58446 - PROTECTOR, DECK BOARD BRACKET
58446-12020

KE5#,TE51..LB

 1
58446 - PROTECTOR, DECK BOARD BRACKET
58446-12020

KE5#,TE51..LB

 1
Common parts
90164-50051
90189-06018
90446-07534
91666-40616
93315-15012
93560-14008
93560-55012
