TE51R-LKD (1976)
Toyota Corolla/Trueno

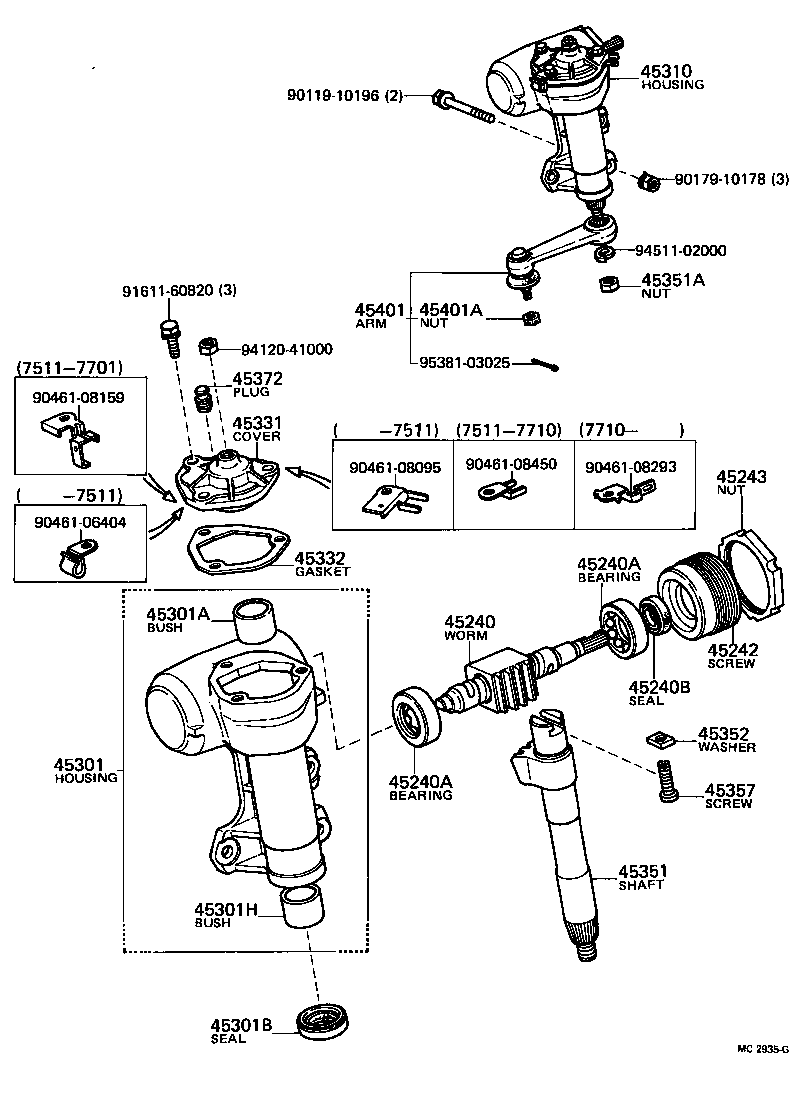

(7408-7912)KE3#,5#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12010 |
KE3#,5#,TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50,TE3#,47,51 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50,TE3#,47,51 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
KE3#,50,TE3#,47,51 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12170 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45301-12140 |
KE3#,5#..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73008 |
KE3#,5# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
KE3#,50,TE3#,47,51 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73008 |
KE3#,5# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12150 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45304-20020 |
KE3#,5#..RHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-12040 |
KE3#,5#..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
KE3#,50,TE3#,47,51..RHD T=2.00,T=2.00 |
1 | ||
| 45352-14030 |
KE3#,50,TE3#,47,51..RHD T=2.08,T=2.08 |
1 | ||
| 45352-14020 |
KE3#,50,TE3#,47,51..RHD T=2.04,T=2.04 |
1 | ||
| 45352-14050 |
KE3#,50,TE3#,47,51..RHD T=2.16,T=2.16 |
1 | ||
| 45352-14040 |
KE3#,50,TE3#,47,51..RHD T=2.12,T=2.12 |
1 | ||
| 45352-14060 |
KE3#,50,TE3#,47,51..RHD T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
KE3#,5#,TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19085 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,5#,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90119-10196 | ||||
| 90179-10178 | ||||
| 90461-06404 | ||||
| 90461-08095 | ||||
| 90461-08159 | ||||
| 90461-08293 | ||||
| 90461-08450 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 95381-03025 | ||||

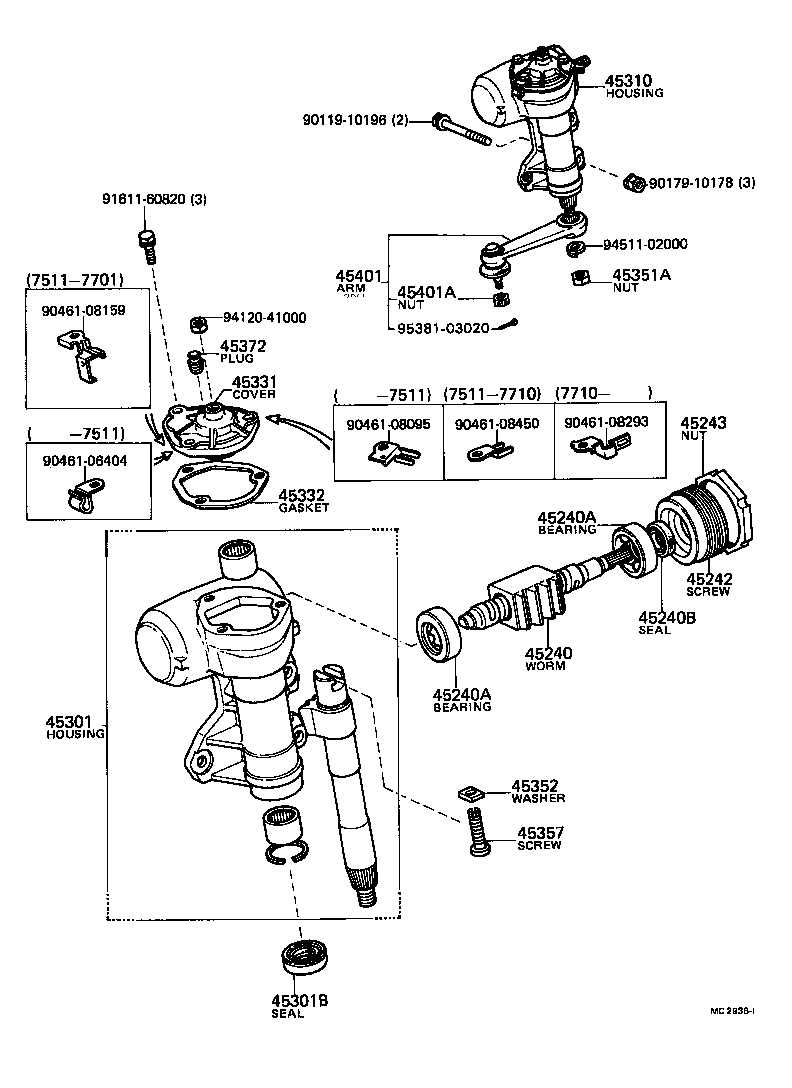

(7408-7912)TE3#,47,51..RHD ; (7912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12010 |
KE3#,5#,TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50,TE3#,47,51 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50,TE3#,47,51 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
KE3#,50,TE3#,47,51 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12170 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45301-12140 |
KE3#,5#..RHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
KE3#,50,TE3#,47,51 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12150 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-12020 |
TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45304-20020 |
KE3#,5#..RHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14010 |
KE3#,50,TE3#,47,51..RHD T=2.00,T=2.00 |
1 | ||
| 45352-14030 |
KE3#,50,TE3#,47,51..RHD T=2.08,T=2.08 |
1 | ||
| 45352-14020 |
KE3#,50,TE3#,47,51..RHD T=2.04,T=2.04 |
1 | ||
| 45352-14050 |
KE3#,50,TE3#,47,51..RHD T=2.16,T=2.16 |
1 | ||
| 45352-14040 |
KE3#,50,TE3#,47,51..RHD T=2.12,T=2.12 |
1 | ||
| 45352-14060 |
KE3#,50,TE3#,47,51..RHD T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
KE3#,5#,TE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD) |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19085 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,5#,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90119-10196 | ||||
| 90179-10178 | ||||
| 90461-06404 | ||||
| 90461-08095 | ||||
| 90461-08159 | ||||
| 90461-08293 | ||||
| 90461-08450 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 95381-03020 | ||||
