TE51R-LHDW (1977)
Toyota Corolla/Trueno

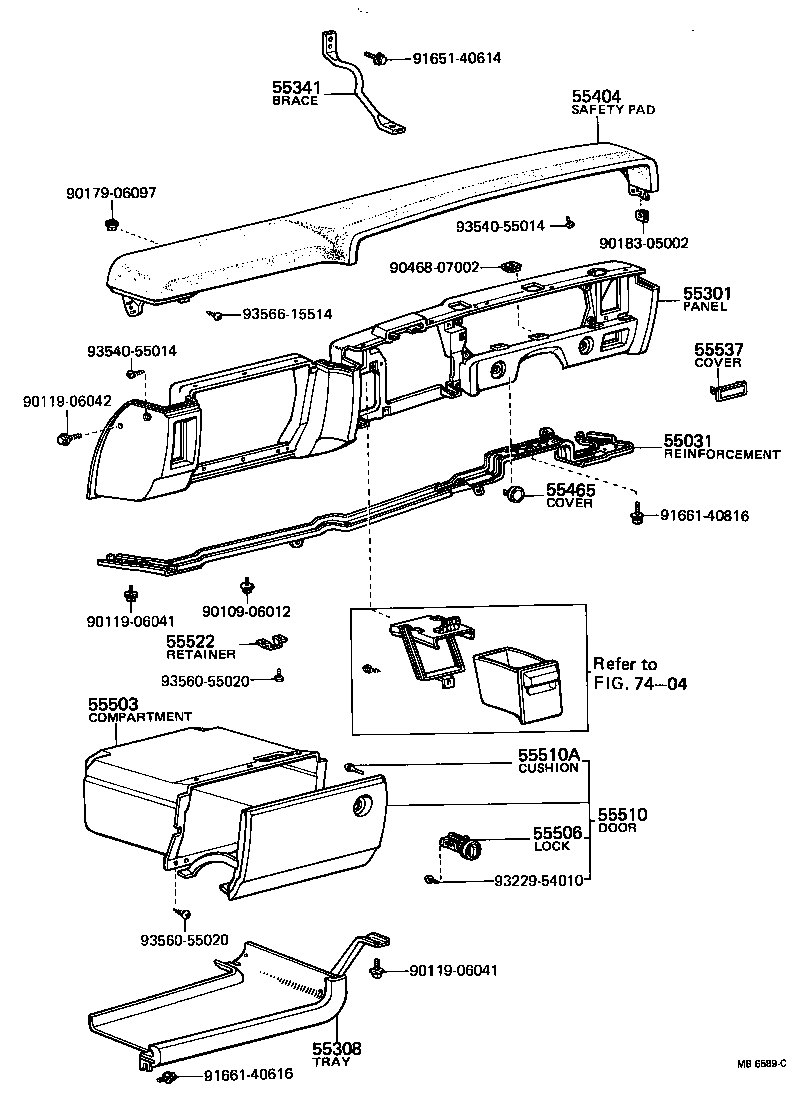

(7701-7908)CP,LB..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12020 |
KE50,TE47,51..RHD LH |
1 | ||
| 55330-12050 |
KE50,TE47,51..LHD RH |
1 | ||
| 55332-12050 |
KE50,TE47,51..LHD LH |
1 | ||
| 55305-12030 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55332-12020 |
KE50,TE47,51..RHD RH |
1 | ||
| 55305-12040 |
KE50,TE47,51..LHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1205001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1202001 |
KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1205006 |
KE50,TE47,51..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55311-1212001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1212004 |
KE50,TE47,51..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-1202006 |
KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55311-1211001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1211006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1212006 |
KE50,TE47,51..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1211004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1207006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55601-1207004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55601-12070 |
KE50,TE47,51..RHD |
1 | ||
| 55601-1207001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12070 |
KE50,TE47,51..LHD |
1 | ||
| 55341-12050 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1206006 |
KE50,TE51..RHD..EUG W/SIDE DEFROSTER,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1205001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1205006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1208001 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1207006 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1207001 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1208004 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1206001 |
KE50,TE51..RHD..EUG W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1207004 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1208006 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1205004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12100 |
KE50,TE47,51..LHD |
1 | ||
| 55581-12020 |
KE50,TE47,51..RHD |
1 | ||
| 55581-12060 |
KE50,TE47,51..LHD |
1 | ||
| 55581-12090 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1203001 |
KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1210006 |
KE50,TE47,51..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1213006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1214006 |
KE50,TE47,51..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1213004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1203006 |
KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1210001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1214001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1213001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1214004 |
KE50,TE47,51..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 90119-06041 | ||||
| 90119-06042 | ||||
| 90179-06097 | ||||
| 90183-05002 | ||||
| 90468-07002 | ||||
| 91651-40614 | ||||
| 91661-40616 | ||||
| 91661-40816 | ||||
| 93229-54010 | ||||
| 93540-55014 | ||||
| 93560-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 7404 | ||||

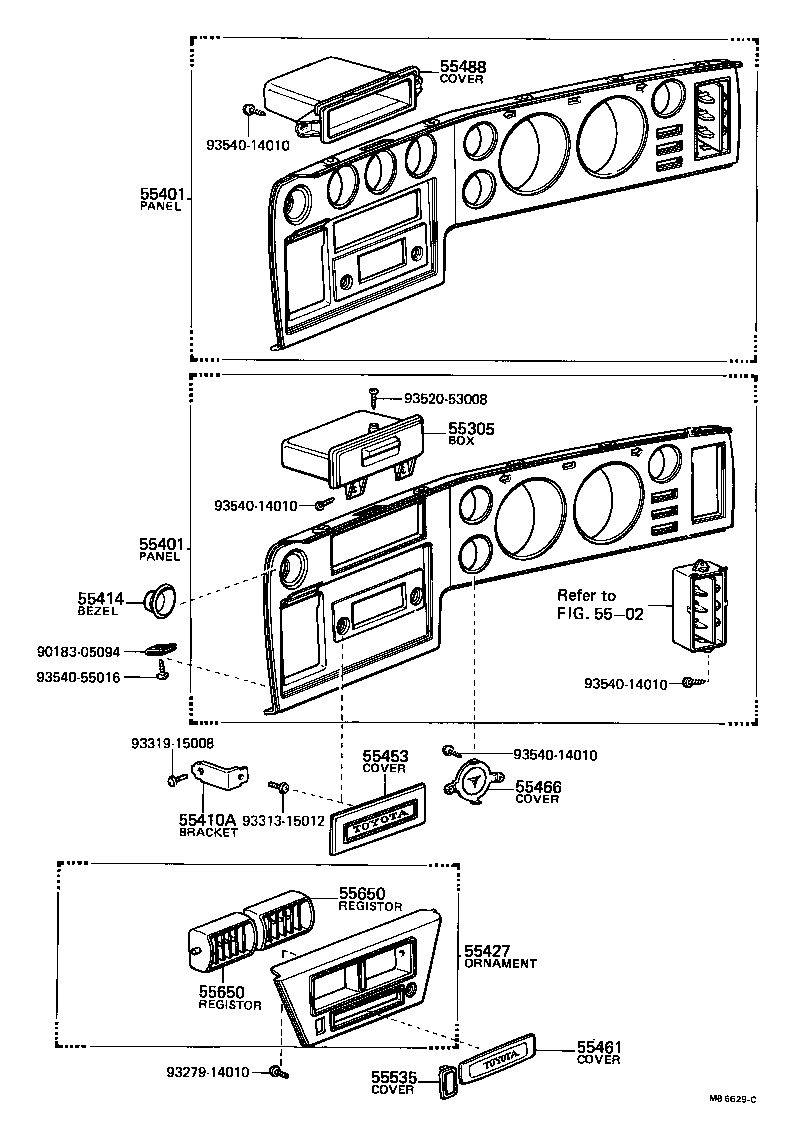

(7701-7908)CP,LB..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305 - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12070 |
KE5#,TE51..DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12340 |
KE50,TE51..LHD..DLX |
1 | ||
| 55410-12470 |
KE50,TE51..RHD..DLX..(EUR,GEN) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12340 |
KE50,TE51..LHD..DLX |
1 | ||
| 55410-12470 |
KE50,TE51..RHD..DLX..(EUR,GEN) |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55426-12020 |
KE50,TE47,51..RHD..(EUR,GEN) |
1 | ||
| 55427-12040 |
KE50,TE47,51..LHD |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12240 |
KE5#,TE51..LB..RHD..DLX |
1 | ||
| 55406-12260 |
KE50,TE51..LHD..DLX |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12050 |
KE50,TE47,51..EUR,GEN |
1 | ||
| 55522-12020 |
KE50,TE47,51 |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-12040 |
KE50,TE51..LHD..(A40,K40)..EUG |
1 | ||
| 55466 - COVER, CLOCK HOLE | ||||
| 55533-12030 |
KE50,TE47,51..DLX,LT |
1 | ||
| 55533-12050 |
KE50,TE47,51..(DLX,LT)..(EUR,GEN) |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 55534-12060 |
KE5#,TE47,51..CP,LB |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93279-14010 | ||||
| 93313-15012 | ||||
| 93319-15008 | ||||
| 93520-53008 | ||||
| 93540-14010 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 5502 | ||||
(7701-7908)KE50,TE47,51..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12020 |
KE50,TE47,51..RHD LH |
1 | ||
| 55330-12050 |
KE50,TE47,51..LHD RH |
1 | ||
| 55332-12050 |
KE50,TE47,51..LHD LH |
1 | ||
| 55305-12030 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55332-12020 |
KE50,TE47,51..RHD RH |
1 | ||
| 55305-12040 |
KE50,TE47,51..LHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1205001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1202001 |
KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1205006 |
KE50,TE47,51..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55311-1212001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1212004 |
KE50,TE47,51..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-1202006 |
KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55311-1211001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1211006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1212006 |
KE50,TE47,51..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55311-1211004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1207006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55601-1207004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55601-12070 |
KE50,TE47,51..RHD |
1 | ||
| 55601-1207001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12070 |
KE50,TE47,51..LHD |
1 | ||
| 55341-12050 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1206006 |
KE50,TE51..RHD..EUG W/SIDE DEFROSTER,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1205001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1205006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1208001 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1207006 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1207001 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1208004 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1206001 |
KE50,TE51..RHD..EUG W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1207004 |
KE50,TE51..LHD..EUR W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1208006 |
KE50,TE47,51..LHD..(A40,K40,T40,T50) LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1205004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12100 |
KE50,TE47,51..LHD |
1 | ||
| 55581-12020 |
KE50,TE47,51..RHD |
1 | ||
| 55581-12060 |
KE50,TE47,51..LHD |
1 | ||
| 55581-12090 |
KE5#,TE47,51..(CP,LB)..RHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1203001 |
KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1210006 |
KE50,TE47,51..LHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1213006 |
KE5#,TE47,51..(CP,LB)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1214006 |
KE50,TE47,51..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1213004 |
KE5#,TE47,51..(CP,LB)..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1203006 |
KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1210001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1214001 |
KE50,TE47,51..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1213001 |
KE5#,TE47,51..(CP,LB)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55550-1214004 |
KE50,TE47,51..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06002 | ||||
| 90119-06041 | ||||
| 90119-06042 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 90183-05002 | ||||
| 91651-40614 | ||||
| 91661-40616 | ||||
| 91661-40816 | ||||
| 93229-54010 | ||||
| 93540-55014 | ||||
| 93560-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 7404 | ||||
(7701-7908)KE50,TE47,51..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305 - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12070 |
KE5#,TE51..DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12340 |
KE50,TE51..LHD..DLX |
1 | ||
| 55410-12470 |
KE50,TE51..RHD..DLX..(EUR,GEN) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12340 |
KE50,TE51..LHD..DLX |
1 | ||
| 55410-12470 |
KE50,TE51..RHD..DLX..(EUR,GEN) |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55426-12020 |
KE50,TE47,51..RHD..(EUR,GEN) |
1 | ||
| 55427-12040 |
KE50,TE47,51..LHD |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12240 |
KE5#,TE51..LB..RHD..DLX |
1 | ||
| 55406-12260 |
KE50,TE51..LHD..DLX |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12050 |
KE50,TE47,51..EUR,GEN |
1 | ||
| 55522-12020 |
KE50,TE47,51 |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-12040 |
KE50,TE51..LHD..(A40,K40)..EUG |
1 | ||
| 55466 - COVER, CLOCK HOLE | ||||
| 55533-12030 |
KE50,TE47,51..DLX,LT |
1 | ||
| 55533-12050 |
KE50,TE47,51..(DLX,LT)..(EUR,GEN) |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 55534-12060 |
KE5#,TE47,51..CP,LB |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93279-14010 | ||||
| 93313-15012 | ||||
| 93319-15008 | ||||
| 93520-53008 | ||||
| 93540-14010 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 5502 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
