TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)LHD

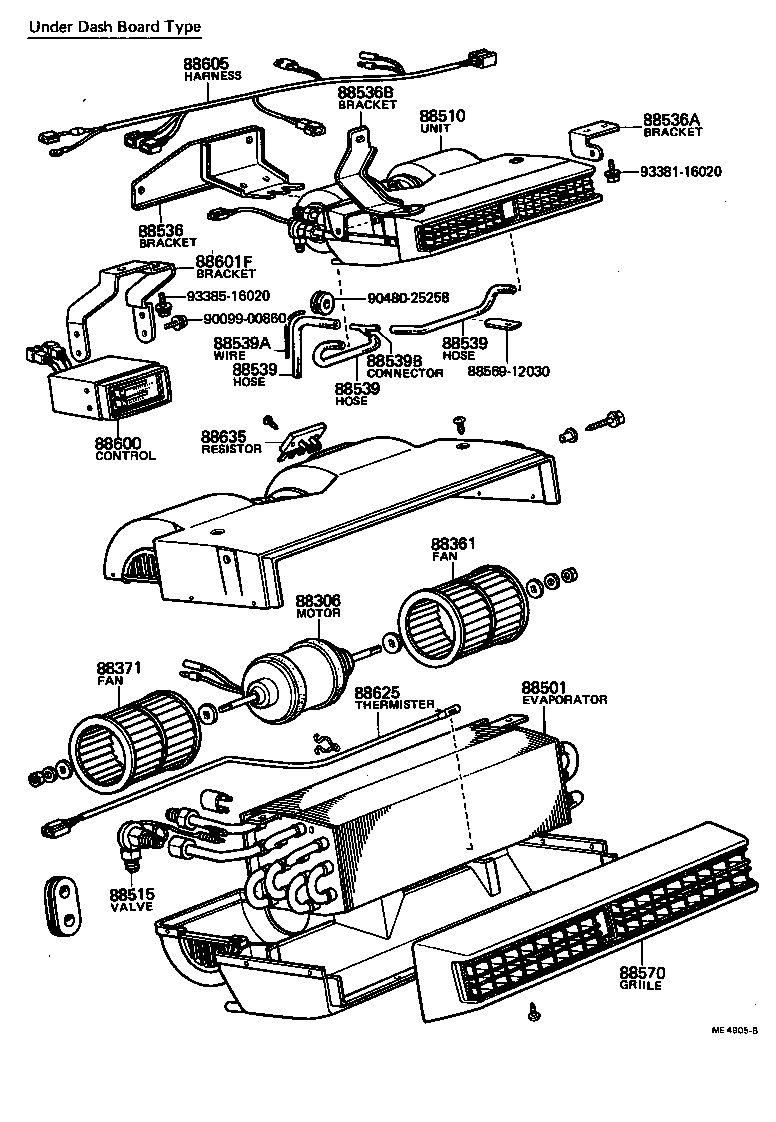

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88515 88536 88536A 88536B 88539 88539 88539 88539A 88539B 8856912030 88570 88600 88601F 88605 88625 88635 9009900860 9048025258 9338516020 9338516020 9412040600 9412040600
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12111

KE3#,50..LHD

 1
88550-12112

TE47,51..LHD..GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12100

KE3#,50..LHD

 1
88501-12130

TE47,51..LHD..GEN

 1
88501-12140

KE30,35,36,50..LHD..GEN

 1
88501-12220

TE51..LHD..GEN

 1
88510 - UNIT ASSY, COOLER
88510-12100

KE3#,50..LHD

 1
88510-12140

TE47,51..LHD..GEN

 1
88510-12150

KE30,35,36,50..LHD..GEN

 1
88510-12240

TE51..LHD..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-20031

KE3#,50..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12140

KE3#,50..LHD

(A)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

TE47,51..GEN

 1
Common parts
88569-12030
90099-00860
90480-25258
93385-16020
94120-40600

(7701-7708)LHD

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88515 88536 88536A 88536B 88539 88539 88539 88539A 88539B 8856912030 88570 88600 88601F 88605 88625 88635 9009900860 9048025258 9338116020 9338516020
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12111

KE3#,50..LHD

 1
88550-12112

TE47,51..LHD..GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12100

KE3#,50..LHD

 1
88501-12130

TE47,51..LHD..GEN

 1
88501-12140

KE30,35,36,50..LHD..GEN

 1
88501-12220

TE51..LHD..GEN

 1
88510 - UNIT ASSY, COOLER
88510-12100

KE3#,50..LHD

 1
88510-12140

TE47,51..LHD..GEN

 1
88510-12150

KE30,35,36,50..LHD..GEN

 1
88510-12240

TE51..LHD..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-20031

KE3#,50..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12140

KE3#,50..LHD

(A)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

TE47,51..GEN

 1
Common parts
88569-12030
90099-00860
90480-25258
93381-16020
93385-16020

(7701-7805)LHD

Click highlighted areas on diagram

diagram 88306 88501 88510 88515 88539 8856912020 88605 88605 88625 88648 88650 88716F 9048025258 9338116025
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12111

KE3#,50..LHD

 1
88550-12112

TE47,51..LHD..GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12100

KE3#,50..LHD

 1
88501-12130

TE47,51..LHD..GEN

 1
88501-12140

KE30,35,36,50..LHD..GEN

 1
88501-12220

TE51..LHD..GEN

 1
88510 - UNIT ASSY, COOLER
88510-12100

KE3#,50..LHD

 1
88510-12140

TE47,51..LHD..GEN

 1
88510-12150

KE30,35,36,50..LHD..GEN

 1
88510-12240

TE51..LHD..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-20031

KE3#,50..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12140

KE3#,50..LHD

(A)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12140

KE3#,50..LHD

(A)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

TE47,51..GEN

 1
88648 - WIRING, COOLER, NO.1
88648-12120

KE30,35,36,50,TE47,51..LHD..GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14021

TE47,51..GEN

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12340

KE3#,50..LHD

 1
88716-12390

TE47,51..LHD..GEN

 1
88716-12400

KE30,35,36,50..LHD..GEN

 1
Common parts
88569-12020
90480-25258
93381-16025

(7805- )

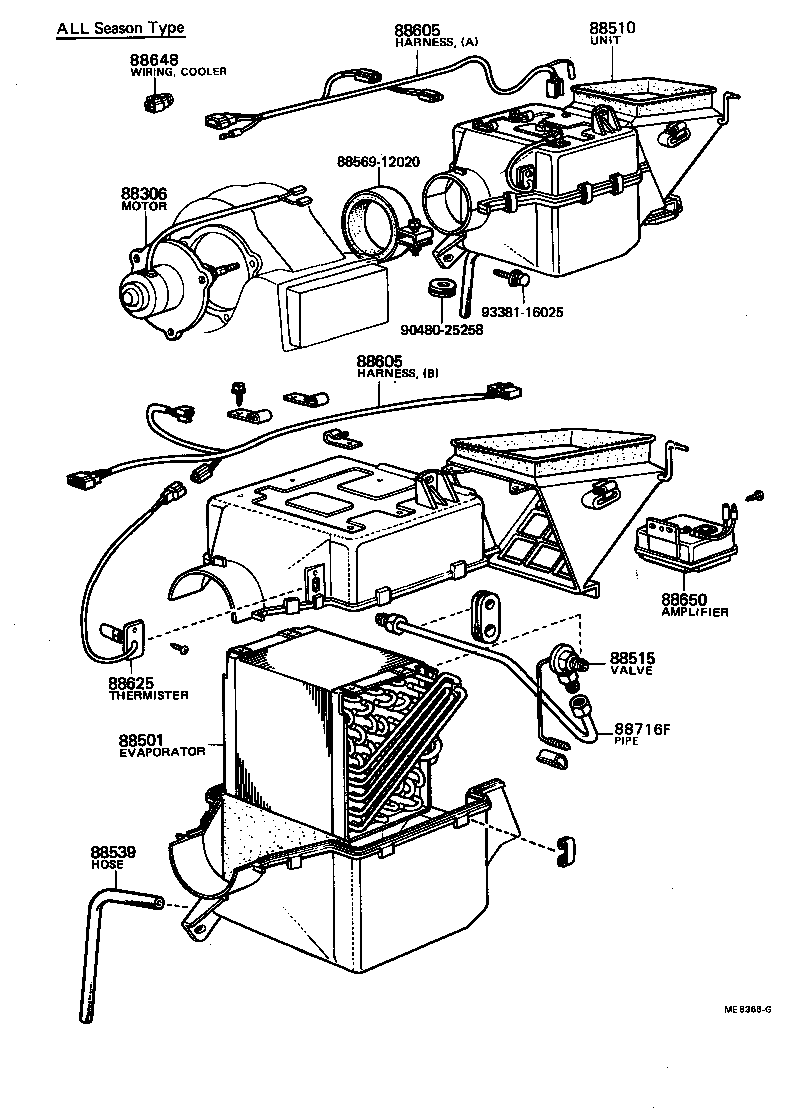

Click highlighted areas on diagram

diagram 8302 8401 8712 88306 88501 88510 88515 88539 8856912020 88605 88625 88645G 88648 88650 88716F 8871812090 9048025258 9338116025 9351016016 9461210600
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-12111

KE3#,50..LHD

 1
88550-12112

TE47,51..LHD..GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12100

KE3#,50..LHD

 1
88501-12130

TE47,51..LHD..GEN

 1
88501-12140

KE30,35,36,50..LHD..GEN

 1
88501-12220

TE51..LHD..GEN

 1
88510 - UNIT ASSY, COOLER
88510-12100

KE3#,50..LHD

 1
88510-12140

TE47,51..LHD..GEN

 1
88510-12150

KE30,35,36,50..LHD..GEN

 1
88510-12240

TE51..LHD..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-20031

KE3#,50..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12021

TE47,51..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12140

KE3#,50..LHD

(A)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12050

TE47,51..GEN

 1
88648 - WIRING, COOLER, NO.1
88648-12120

KE30,35,36,50,TE47,51..LHD..GEN

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14021

TE47,51..GEN

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-12340

KE3#,50..LHD

 1
88716-12390

TE47,51..LHD..GEN

 1
88716-12400

KE30,35,36,50..LHD..GEN

 1
Common parts
88569-12020
88718-12090
90480-25258
93381-16025
93510-16016
94612-10600
Linked diagrams
8302
8401
8712
