TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7408-7701)

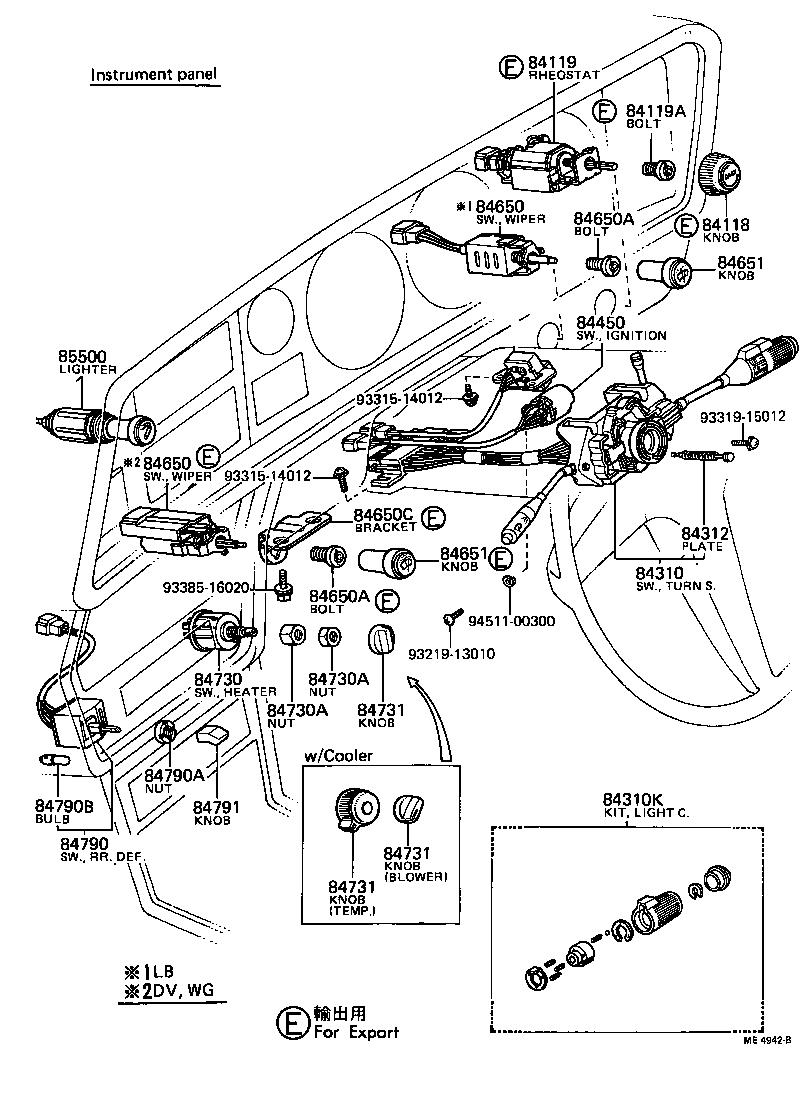

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12161 |
KE3#,50,TE47,51..LHD |
1 | ||
| 84310-12220 |
KE3#,50,TE47,51..LHD |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30130 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 04841-30131 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84653-12010 |
TE51 RR WIPER |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84653-12030 |
KE50,TE51..GEN RR WIPER,W/O HEATER |
1 | ||
| 84653-12020 |
KE50,TE51..EUR,GEN RR WIPER |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84653-12010 |
TE51 RR WIPER |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84653-12030 |
KE50,TE51..GEN RR WIPER,W/O HEATER |
1 | ||
| 84653-12020 |
KE50,TE51..EUR,GEN RR WIPER |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90984-01006 |
TE51 RR WIPER |
1 | ||
| 90984-01011 |
KE50,TE51..GEN |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90984-01006 |
TE51 RR WIPER |
1 | ||
| 90984-01011 |
KE50,TE51..GEN |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-21010 |
KE50,TE51..GEN RR WIPER |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-21010 |
KE50,TE51..GEN RR WIPER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12032 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12033 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12050 |
KE3#,50,TE47..ARL,GEN,SA W/COOLER |
1 | ||
| 84732-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12040 |
KE50,TE47,51..LHD |
1 | ||
| 84790A - BOLT OR NUT, REAR WINDOW DEFOGGER SWITCH SET | ||||
| 90179-14191 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84791 - KNOB, REAR WINDOW DEFOGGER SWITCH | ||||
| 84791-12020 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93385-16020 | ||||
| 94511-00300 | ||||
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

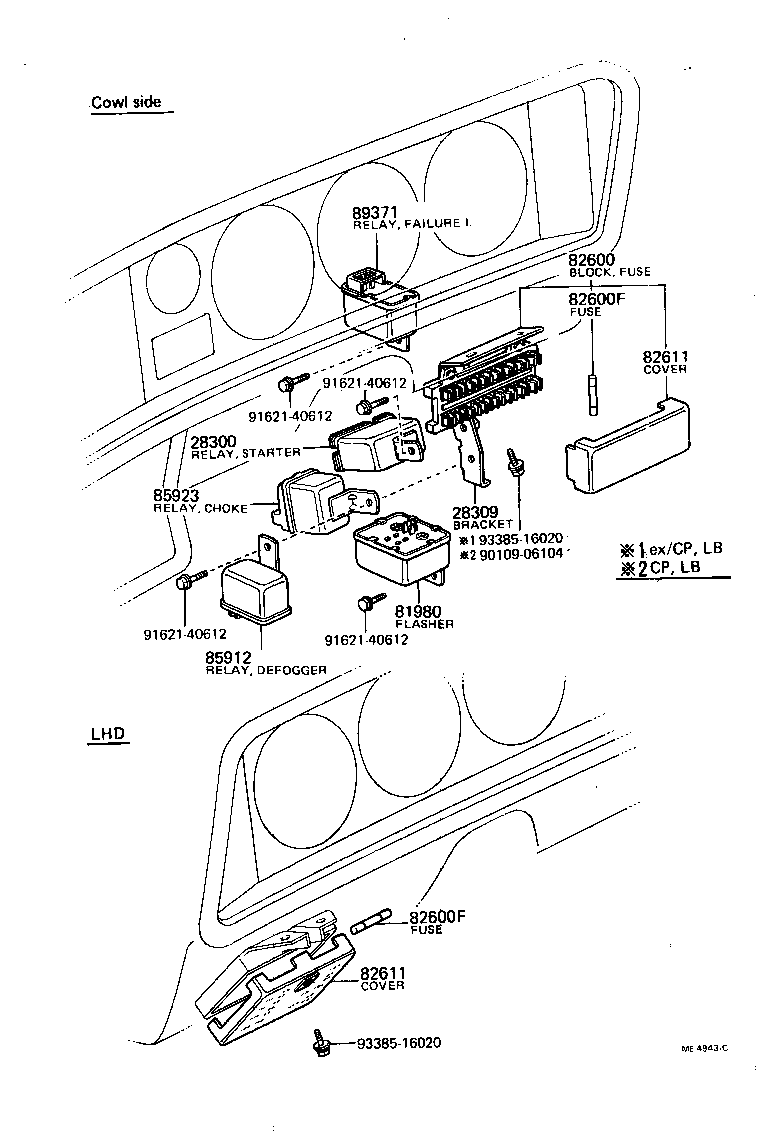

| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12040 |
KE3#,50,TE47,51..LHD W/RED INDICATOR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82611-12040 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82611-12040 |
KE3#,50,TE47,51..LHD |
1 | ||
| Common parts | ||||
| 90109-06104 | ||||
| 91612-40612 | ||||
| 91621-40612 | ||||
| 93385-16020 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19025 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84112-19045 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12161 |
KE3#,50,TE47,51..LHD |
1 | ||
| 84310-12220 |
KE3#,50,TE47,51..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84653-12010 |
TE51 RR WIPER |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84653-12030 |
KE50,TE51..GEN RR WIPER,W/O HEATER |
1 | ||
| 84653-12020 |
KE50,TE51..EUR,GEN RR WIPER |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84653-12010 |
TE51 RR WIPER |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84653-12030 |
KE50,TE51..GEN RR WIPER,W/O HEATER |
1 | ||
| 84653-12020 |
KE50,TE51..EUR,GEN RR WIPER |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84653-12010 |
TE51 RR WIPER |
1 | ||
| 84652-19035 |
KE3#,50,TE47,51..LHD TOKAIRIKA |
1 | ||
| 84652-19075 |
KE3#,50,TE47,51..LHD MATSUSHITA |
1 | ||
| 84653-12030 |
KE50,TE51..GEN RR WIPER,W/O HEATER |
1 | ||
| 84653-12020 |
KE50,TE51..EUR,GEN RR WIPER |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90984-01006 |
TE51 RR WIPER |
1 | ||
| 90984-01011 |
KE50,TE51..GEN |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-21010 |
KE50,TE51..GEN RR WIPER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12032 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12033 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12050 |
KE3#,50,TE47..ARL,GEN,SA W/COOLER |
1 | ||
| 84732-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12040 |
KE50,TE47,51..LHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12040 |
KE50,TE47,51..LHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84792 - SOCKET SUB-ASSY, REAR WINDOW DEFOGGER SWITCH | ||||
| 83101-14010 |
KE5#,TE47,51..CP,LB |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90201-11001 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 94511-00300 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12040 |
KE3#,50,TE47,51..LHD W/RED INDICATOR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82611-12040 |
KE3#,50,TE47,51..LHD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85919-20012 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85919-20012 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 91621-40012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
