TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7408-7701)KE50,TE47,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

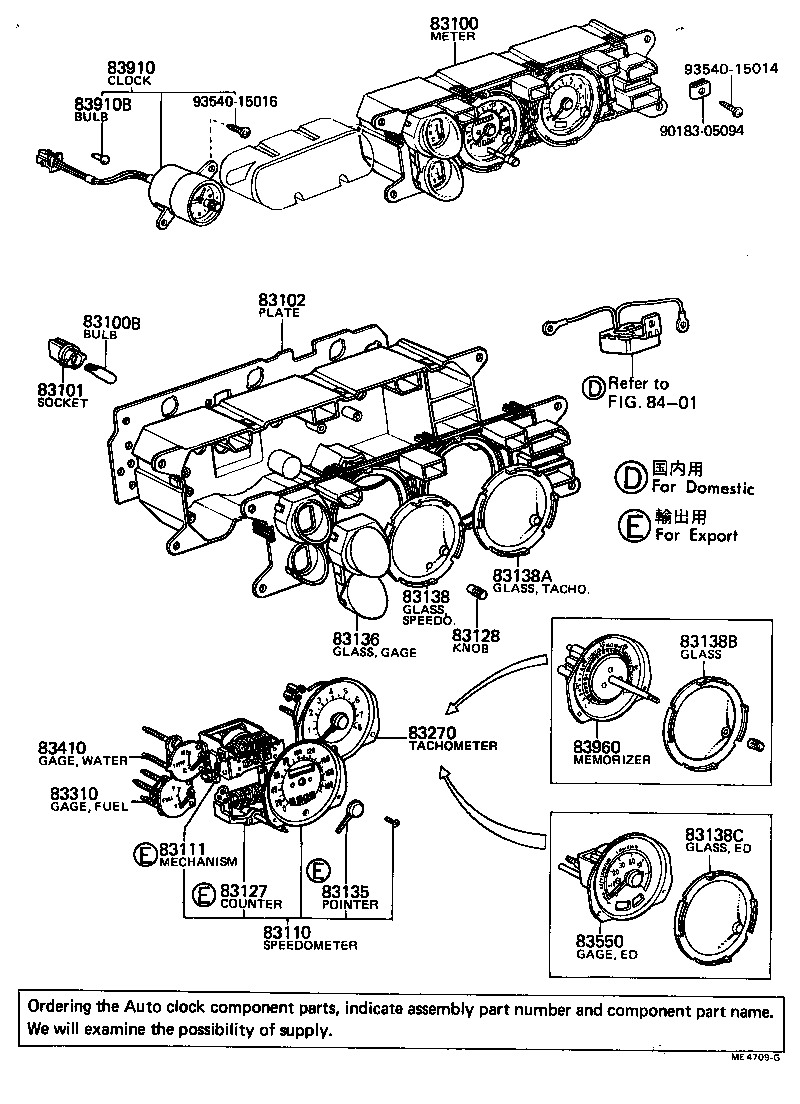

| 83100 - METER ASSY, COMBINATION | ||||
| 83200-12220 |
TE47,51..LHD..(GSL,GT) MILE |
1 | ||
| 83200-12210 |
TE47,51..LHD..(GSL,GT) KM |
1 | ||
| 83010-12060 |
TE51..LHD..GSL MILE,W/TACHOMETER |
1 | ||
| 83010-12140 |
TE51..LHD..GSL KM,W/TACHOMETER |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KE5#,TE47,51..CP,LB 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
KE3#,5#,TE3#,47,51 12V 3.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
KE3#,50,TE3#,47,51 |
12 | ||
| 83101-14040 |
KE5#,TE47,51..CP,LB |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12120 |
KE50,TE47,51..LHD |
1 | ||
| 83247-12340 |
KE50,TE47,51..LHD W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-12120 |
TE47,51..GSL,GT KM |
1 | ||
| 83241-12230 |
KE50,TE47,51..DLX,GSL,LT,ST KM |
1 | ||
| 83241-12271 |
KE50,TE47,51..EUR,GEN MILE & KM |
1 | ||
| 83241-12272 |
KE50,TE47,51 MILE & KM |
1 | ||
| 83241-12231 |
KE50,TE47,51..DLX,GSL,LT,ST KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83111-12540 |
KE3#,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST KM |
1 | ||
| 83111-12560 |
KE3#,50,TE47,51..DLX,GSL,GT,LT,SR,ST MILE |
1 | ||
| 83127 - COUNTER, TRIP | ||||
| 83127-12280 |
KE3#,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST KM |
1 | ||
| 83127-12860 |
KE3#,50,TE47,51..DLX,GSL,GT,LT,SR,ST MILE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12650 |
KE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-12220 |
KE3#,50,TE3#,47,51 |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
KE50,TE47,51 |
1 | ||
| 83138-12340 |
KE50,TE47,51 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12650 |
KE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST |
1 | ||
| 83138A - GLASS, TACHOMETER | ||||
| 83138-12640 |
KE35,50,TE37,47,51 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12191 |
KE50,TE47,51..DLX,GSL,LT,ST |
1 | ||
| 83242-12190 |
KE50,TE47,51..DLX,GSL,LT,ST |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12030 |
KE50,TE47,51..LHD |
1 | ||
| 83243-12090 |
KE50,TE47,51..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12130 |
KE50,TE47,51..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12190 |
KE50,TE47,51 SMALL TYPE,CITIZEN |
1 | ||
| 83910-12060 |
KE50,TE47,51..LHD |
1 | ||
| 83910-12170 |
KE50,TE47,51 SMALL TYPE,JECO |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KE30,TE31..DLX;KE30..STD..(ARL,GEN);KE35,36,50,TE37,47,51 12V 3.4W |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93540-15014 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7701-7908)CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83200-12220 |
TE47,51..LHD..(GSL,GT) MILE |
1 | ||
| 83200-12210 |
TE47,51..LHD..(GSL,GT) KM |
1 | ||
| 83010-12060 |
TE51..LHD..GSL MILE,W/TACHOMETER |
1 | ||
| 83010-12140 |
TE51..LHD..GSL KM,W/TACHOMETER |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KE5#,TE47,51..CP,LB 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
KE3#,5#,TE3#,47,51 12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KE5#,TE47,51..CP,LB 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
KE3#,5#,TE3#,47,51 12V 3.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
KE3#,50,TE3#,47,51 |
12 | ||
| 83101-14040 |
KE5#,TE47,51..CP,LB |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
KE3#,50,TE3#,47,51 |
12 | ||
| 83101-14040 |
KE5#,TE47,51..CP,LB |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12120 |
KE50,TE47,51..LHD |
1 | ||
| 83247-12340 |
KE50,TE47,51..LHD W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-12120 |
TE47,51..GSL,GT KM |
1 | ||
| 83241-12230 |
KE50,TE47,51..DLX,GSL,LT,ST KM |
1 | ||
| 83241-12271 |
KE50,TE47,51..EUR,GEN MILE & KM |
1 | ||
| 83241-12272 |
KE50,TE47,51 MILE & KM |
1 | ||
| 83241-12231 |
KE50,TE47,51..DLX,GSL,LT,ST KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12650 |
KE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
KE50,TE47,51 |
1 | ||
| 83138-12340 |
KE50,TE47,51 |
2 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
KE50,TE47,51 |
1 | ||
| 83138-12340 |
KE50,TE47,51 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12650 |
KE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST |
1 | ||
| 83138A - GLASS, TACHOMETER | ||||
| 83138-12640 |
KE35,50,TE37,47,51 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12191 |
KE50,TE47,51..DLX,GSL,LT,ST |
1 | ||
| 83242-12190 |
KE50,TE47,51..DLX,GSL,LT,ST |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12030 |
KE50,TE47,51..LHD |
1 | ||
| 83243-12090 |
KE50,TE47,51..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12130 |
KE50,TE47,51..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12190 |
KE50,TE47,51 SMALL TYPE,CITIZEN |
1 | ||
| 83910-12060 |
KE50,TE47,51..LHD |
1 | ||
| 83910-12170 |
KE50,TE47,51 SMALL TYPE,JECO |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12190 |
KE50,TE47,51 SMALL TYPE,CITIZEN |
1 | ||
| 83910-12060 |
KE50,TE47,51..LHD |
1 | ||
| 83910-12170 |
KE50,TE47,51 SMALL TYPE,JECO |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KE30,TE31..DLX;KE30..STD..(ARL,GEN);KE35,36,50,TE37,47,51 12V 3.4W |
1 | ||
| Common parts | ||||
| 83128-12660 | ||||
| 90168-55001 | ||||
| 90183-05094 | ||||
| 93540-15014 | ||||
| 93540-15016 | ||||
