TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7408-7701)KE50,TE51

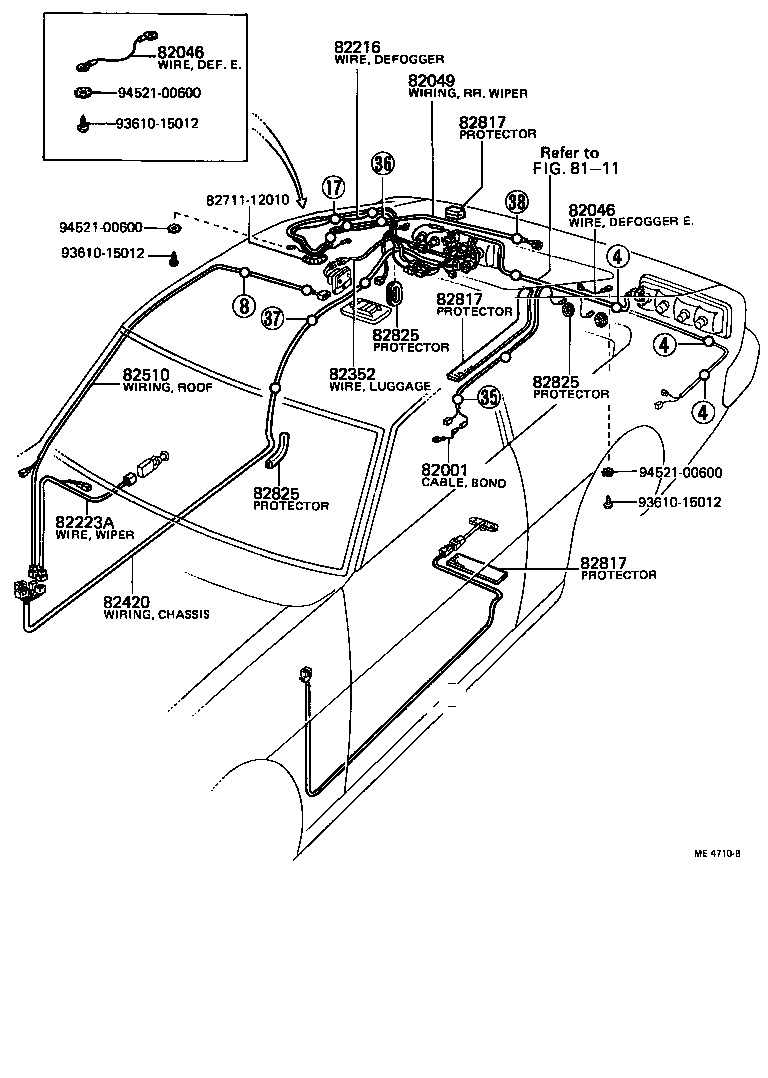

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82049 - WIRING SUB-ASSY, REAR WIPER | ||||
| 82049-12020 |
KE5#,TE51..LB W/DEFOGGER |
1 | ||
| 82049-12010 |
KE50,TE51 |
1 | ||
| 82049-12010 |
KE50,TE51..GEN W/O DEFOGGER |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12020 |
KE50,TE51 |
1 | ||
| 82216-12020 |
KE50,TE51..EUR,GEN |
1 | ||
| 82216-12030 |
KE50,TE51..LHD COLD SPEC(200W DEFOGGER) |
1 | ||
| 82223A - WIRE, REAR WIPER SWITCH | ||||
| 82223-12290 |
KE50,TE51..GEN W/O HEATER & *BV |
1 | ||
| 82223-12050 |
TE51..LHD |
1 | ||
| 82352 - WIRE, LUGGAGE COMPARTMENT LAMP | ||||
| 82214-12030 |
TE51 |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-12170 |
KE50,TE51 |
1 | ||
| 82420-12180 |
KE50,TE51..LHD COLD SPEC |
1 | ||
| 82420-12180 |
KE50,TE51 |
1 | ||
| 82420-12231 |
KE50,TE51 |
1 | ||
| 82420-12270 |
KE50,TE51 W/*RW |
1 | ||
| 82420-12230 |
TE51;KE50..RHD;KE50..LHD..K40 |
1 | ||
| 82420-12271 |
KE5#,TE51..LB W/*RW |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12090 |
KE50,TE51 |
1 | ||
| 82510-12060 |
KE50,TE47,51 |
1 | ||
| 82510-12020 |
KE36,50,TE31,47,51 |
1 | ||
| 82510-12020 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82510-12150 |
KE5#,TE51..LB |
1 | ||
| 82510-12020 |
KE36,50,TE47,51 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| Common parts | ||||
| 82711-12010 | ||||
| 93610-15012 | ||||
| 94521-00600 | ||||
| Linked diagrams | ||||
| 8111 | ||||
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-12390 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82201-12391 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-12643 |
KE3#,50..LHD..MTM |
1 | ||
| 82270-12010 |
KE3#,50..LHD..MTM |
1 | ||
| 82270-12200 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82270-12410 |
KE30,35,36,50..LHD |
1 | ||
| 82270-12430 |
TE47,51..LHD |
1 | ||
| 82270-12440 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08032 |
TE47,51..GSL,GT W/AMMETER |
1 | ||
| 90982-08053 |
TE47,51..GSL,GT W/AMMETER |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-12031 |
TE51 RR ROOM LAMP |
1 | ||
| 82214-12030 |
TE51 RR ROOM LAMP |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-12081 |
TE3#,47,51..MTM |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-12060 |
KE50,TE47,51..LHD |
1 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82261-12070 |
KE3#,50 |
1 | ||
| 82261-12090 |
TE47,51..GSL,GT,ST |
1 | ||
| 82261-12091 |
TE47,51..GSL,GT,ST |
1 | ||
| 82261-12011 |
KE3#,50 |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-12010 |
TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 82291-12010 |
TE47,51..GSL,GT,ST |
1 | ||
| 82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82829-12010 |
KE3#,50,TE3#,47,51 LH |
1 | ||
| 82817-12080 |
KE3#,50,TE3#,47,51 RH |
1 | ||
| 82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82829-12010 |
KE3#,50,TE3#,47,51 LH |
1 | ||
| 82817-12080 |
KE3#,50,TE3#,47,51 RH |
1 | ||
| 82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 53797-12030 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| Common parts | ||||
| 91611-40616 | ||||
| 91611-41016 | ||||
| 91616-40616 | ||||
| 91656-41022 | ||||
| 93540-14012 | ||||
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90461-04026 | ||||
| 90461-06012 | ||||
| 90461-06032 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-06645 | ||||
| 90461-06921 | ||||
| 90461-08025 | ||||
| 90461-08066 | ||||
| 90461-08093 | ||||
| 90461-08095 | ||||
| 90461-08450 | ||||
| 90461-10029 | ||||
| 90461-10037 | ||||
| 90461-10098 | ||||
| 90461-10541 | ||||
| 90463-04013 | ||||
| 90463-04079 | ||||
| 90463-04133 | ||||
| 90463-04259 | ||||
| 90463-04558 | ||||
| 90463-04572 | ||||
| 90463-04573 | ||||
| 90463-06042 | ||||
| 90463-06161 | ||||
| 90463-06547 | ||||
| 90463-10521 | ||||
| 90463-15346 | ||||
| 90463-15385 | ||||
| 90463-15617 | ||||
| 90464-00020 | ||||
| 90464-00039 | ||||
| 90464-00041 | ||||
| 90464-00052 | ||||
| 90468-08079 | ||||
| 90480-15172 | ||||
| 90480-22082 | ||||
| 90480-25385 | ||||
| 90480-37472 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-12390 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82201-12391 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-12643 |
KE3#,50..LHD..MTM |
1 | ||
| 82270-12010 |
KE3#,50..LHD..MTM |
1 | ||
| 82270-12200 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82270-12410 |
KE30,35,36,50..LHD |
1 | ||
| 82270-12430 |
TE47,51..LHD |
1 | ||
| 82270-12440 |
TE47,51..LHD..(GSL,GT) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08032 |
TE47,51..GSL,GT W/AMMETER |
1 | ||
| 90982-08053 |
TE47,51..GSL,GT W/AMMETER |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-12081 |
TE3#,47,51..MTM |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-12060 |
KE50,TE47,51..LHD |
1 | ||
| 82223A - WIRE, REAR WIPER SWITCH | ||||
| 82223-12290 |
KE50,TE51..GEN W/O HEATER & *BV |
1 | ||
| 82223-12050 |
TE51..LHD |
1 | ||
| 82230 - WIRING ASSY, FRONT SIDE | ||||
| 82230-12250 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82230-12520 |
KE3#,50,TE47,51..LHD |
1 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82261-12070 |
KE3#,50 |
1 | ||
| 82261-12090 |
TE47,51..GSL,GT,ST |
1 | ||
| 82261-12091 |
TE47,51..GSL,GT,ST |
1 | ||
| 82261-12011 |
KE3#,50 |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-12010 |
TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 82291-12010 |
TE47,51..GSL,GT,ST |
1 | ||
| 82375 - WIRE, WIPER SWITCH | ||||
| 82375-12100 |
TE47,51..LHD |
1 | ||
| 82375-12070 |
KE3#,50..LHD |
1 | ||
| 82375-12280 |
TE47,51..LHD |
1 | ||
| 82375-12270 |
KE30,35,36,50..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| Common parts | ||||
| 82817-12160 | ||||
| 82817-12170 | ||||
| 82817-12180 | ||||
| 90109-06002 | ||||
| 90109-06012 | ||||
| 93319-15008 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82411-12010 |
KE50,TE51 FUEL SENDER |
1 | ||
| 90980-07107 |
TE47,51;KE50..RHD;KE50..LHD..K40 RADIO TUNER |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12060 |
KE50,TE51..GEN W/*RW,EXCL/DEFOGGER |
1 | ||
| 82046-12040 |
KE5#,TE51..LB |
1 | ||
| 82049 - WIRING SUB-ASSY, REAR WIPER | ||||
| 82049-12020 |
KE5#,TE51..LB W/DEFOGGER |
1 | ||
| 82049-12010 |
KE50,TE51 |
1 | ||
| 82049-12010 |
KE50,TE51..GEN W/O DEFOGGER |
1 | ||
| 82049 - WIRING SUB-ASSY, REAR WIPER | ||||
| 82049-12020 |
KE5#,TE51..LB W/DEFOGGER |
1 | ||
| 82049-12010 |
KE50,TE51 |
1 | ||
| 82049-12010 |
KE50,TE51..GEN W/O DEFOGGER |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-12031 |
TE51 RR ROOM LAMP |
1 | ||
| 82214-12030 |
TE51 RR ROOM LAMP |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-12031 |
TE51 RR ROOM LAMP |
1 | ||
| 82214-12030 |
TE51 RR ROOM LAMP |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12020 |
KE50,TE51 |
1 | ||
| 82216-12020 |
KE50,TE51..EUR,GEN |
1 | ||
| 82216-12030 |
KE50,TE51..LHD COLD SPEC(200W DEFOGGER) |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12020 |
KE50,TE51 |
1 | ||
| 82216-12020 |
KE50,TE51..EUR,GEN |
1 | ||
| 82216-12030 |
KE50,TE51..LHD COLD SPEC(200W DEFOGGER) |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-12170 |
KE50,TE51 |
1 | ||
| 82420-12180 |
KE50,TE51..LHD COLD SPEC |
1 | ||
| 82420-12180 |
KE50,TE51 |
1 | ||
| 82420-12231 |
KE50,TE51 |
1 | ||
| 82420-12270 |
KE50,TE51 W/*RW |
1 | ||
| 82420-12230 |
TE51;KE50..RHD;KE50..LHD..K40 |
1 | ||
| 82420-12271 |
KE5#,TE51..LB W/*RW |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12090 |
KE50,TE51 |
1 | ||
| 82510-12060 |
KE50,TE47,51 |
1 | ||
| 82510-12020 |
KE36,50,TE31,47,51 |
1 | ||
| 82510-12020 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82510-12150 |
KE5#,TE51..LB |
1 | ||
| 82510-12020 |
KE36,50,TE47,51 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12190 |
KE5#,TE51..LB *RW WIRE |
1 | ||
| 82817-12110 |
KE50,TE51 L=450 |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-12130 |
KE5#,TE51..LB L=300 |
1 | ||
| 82817-12120 |
KE5#,TE51..LB L=150 |
3 | ||
| Common parts | ||||
| 62978-13010 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 93540-15012 | ||||
| 93610-15012 | ||||
| 94521-00600 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12060 | ||||
| 82711-12070 | ||||
| 82711-12080 | ||||
| 82711-12090 | ||||
| 82711-12100 | ||||
| 82711-12110 | ||||
| 82711-12120 | ||||
| 82711-22090 | ||||
| 90461-04026 | ||||
| 90461-06034 | ||||
| 90461-06053 | ||||
| 90461-06083 | ||||
| 90461-06098 | ||||
| 90461-06101 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-06921 | ||||
| 90461-08025 | ||||
| 90461-08093 | ||||
| 90461-08159 | ||||
| 90461-08175 | ||||
| 90461-08186 | ||||
| 90461-08187 | ||||
| 90461-10179 | ||||
| 90461-10223 | ||||
| 90463-04013 | ||||
| 90463-06042 | ||||
| 90463-10521 | ||||
| 90463-12009 | ||||
| 90463-15419 | ||||
| 90463-15617 | ||||
| 90464-00041 | ||||
| 90464-00052 | ||||
| 90468-08002 | ||||
| 90480-15172 | ||||
| 90480-22082 | ||||
| 90480-23246 | ||||
| 90480-25385 | ||||
| 90480-37472 | ||||
(7805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90462-06008 | ||||
| 90463-15346 | ||||
| 90468-08079 | ||||
| 90480-25009 | ||||
| 90480-30211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
