TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7603-7908)LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12080 |
KE50,TE51..MTM |
1 | ||
| 77017-12081 |
KE5#,TE51..LB..MTM |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
KE36,38,5#,TE51..DV,LB,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
KE36,50,TE51 *H,L=50 |
1 | ||
| 95331-04024 |
KE50,TE51 *H,L=240 |
1 | ||
| 95332-04024 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95331-06065 |
KE50,TE51 *H,L=650 |
3 | ||
| 95332-06080 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 95332-04030 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95332-06005 |
KE36,38,5#,TE51..DV,LB,WG *H,L=50 |
1 | ||
| 95332-06065 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
KE36,50,TE51 *H,L=50 |
1 | ||
| 95331-04024 |
KE50,TE51 *H,L=240 |
1 | ||
| 95332-04024 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95331-06065 |
KE50,TE51 *H,L=650 |
3 | ||
| 95332-06080 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 95332-04030 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95332-06005 |
KE36,38,5#,TE51..DV,LB,WG *H,L=50 |
1 | ||
| 95332-06065 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
KE36,50,TE51 *H,L=50 |
1 | ||
| 95331-04024 |
KE50,TE51 *H,L=240 |
1 | ||
| 95332-04024 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95331-06065 |
KE50,TE51 *H,L=650 |
3 | ||
| 95332-06080 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 95332-04030 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95332-06005 |
KE36,38,5#,TE51..DV,LB,WG *H,L=50 |
1 | ||
| 95332-06065 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
KE36,50,TE51 *H,L=50 |
1 | ||
| 95331-04024 |
KE50,TE51 *H,L=240 |
1 | ||
| 95332-04024 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95331-06065 |
KE50,TE51 *H,L=650 |
3 | ||
| 95332-06080 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 95332-04030 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95332-06005 |
KE36,38,5#,TE51..DV,LB,WG *H,L=50 |
1 | ||
| 95332-06065 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
KE36,50,TE51 *H,L=50 |
1 | ||
| 95331-04024 |
KE50,TE51 *H,L=240 |
1 | ||
| 95332-04024 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95331-06065 |
KE50,TE51 *H,L=650 |
3 | ||
| 95332-06080 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 95332-04030 |
KE5#,TE51..LB *H,L=240 |
1 | ||
| 95332-06005 |
KE36,38,5#,TE51..DV,LB,WG *H,L=50 |
1 | ||
| 95332-06065 |
KE5#,TE51..LB *H,L=650 |
3 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-12900 |
KE50,TE51 |
1 | ||
| 77101-12100 |
KE5#,TE51..LB |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 77100C - GASKET, FUEL SUCTION TUBE, SET | ||||
| 77169-12010 |
KE50,TE51 |
1 | ||
| 77108 - PROTECTOR SUB-ASSY, FUEL TANK | ||||
| 77266-12010 |
KE5#,TE51..LB |
1 | ||
| 77108A - CUSHION, FUEL PROTECTOR | ||||
| 77286-12010 |
KE5#,TE51..LB |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77039-12010 |
KE50,TE51 |
1 | ||
| 77267-12030 |
KE5#,TE51..LB |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77039-12010 |
KE50,TE51 |
1 | ||
| 77267-12030 |
KE5#,TE51..LB |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12190 |
KE5#,TE51..LB |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18868 |
KE5#,TE51..LB |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-12120 |
KE5#,TE51..LB |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-12020 |
KE30,35,50,TE3#,47,51 |
1 | ||
| 77251-12021 |
KE30,35,50,TE3#,47,51 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-06016 |
KE30,35,50,TE3#,47,51 *H,L=160 |
1 | ||
| 95332-06016 |
KE30,35,5#,TE3#,47,51 *H,L=160 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-12051 |
KE5#,TE51..LB |
1 | ||
| 77252-12050 |
KE50,TE51 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95331-06022 |
KE50,TE51 *H,L=220 |
1 | ||
| 95331-06020 |
KE50,TE51 *H,L=200 |
1 | ||
| 95332-06020 |
KE5#,TE51..LB *H,L=200 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-04013 |
KE30,35,5#,TE3#,47,51 *H,L=130 |
1 | ||
| 95331-04012 |
KE30,35,50,TE3#,47,51 *H,L=120 |
1 | ||
| 95331-04013 |
KE30,35,50,TE3#,47,51 *H,L=130 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77261-12060 |
KE50,TE51 |
1 | ||
| 77261-12061 |
KE5#,TE51..LB |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77371-12100 |
KE5#,TE51..LB |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77620-12010 |
KE5#,TE51..LB LH |
1 | ||
| 77610-12010 |
KE5#,TE51..LB RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77620-12010 |
KE5#,TE51..LB LH |
1 | ||
| 77610-12010 |
KE5#,TE51..LB RH |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12030 |
KE5#,TE51..LB |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12020 |
KE5#,TE51..LB |
1 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-12010 |
KE5#,TE51..LB |
1 | ||
| Common parts | ||||
| 90109-08009 | ||||
| 90119-08155 | ||||
| 90159-40013 | ||||
| 90159-60047 | ||||
| 90179-06078 | ||||
| 90179-08143 | ||||
| 90215-08002 | ||||
| 90460-63001 | ||||
| 90461-06084 | ||||
| 90462-16005 | ||||
| 90462-16230 | ||||
| 90464-00118 | ||||
| 90480-01018 | ||||
| 90480-01044 | ||||
| 90480-01045 | ||||
| 90480-21456 | ||||
| 90480-35279 | ||||
| 90480-75001 | ||||
| 91131-60840 | ||||
| 91651-40614 | ||||
| 91651-60845 | ||||
| 93319-15010 | ||||
| 93540-55010 | ||||
| 93560-55012 | ||||
| 96112-10200 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||

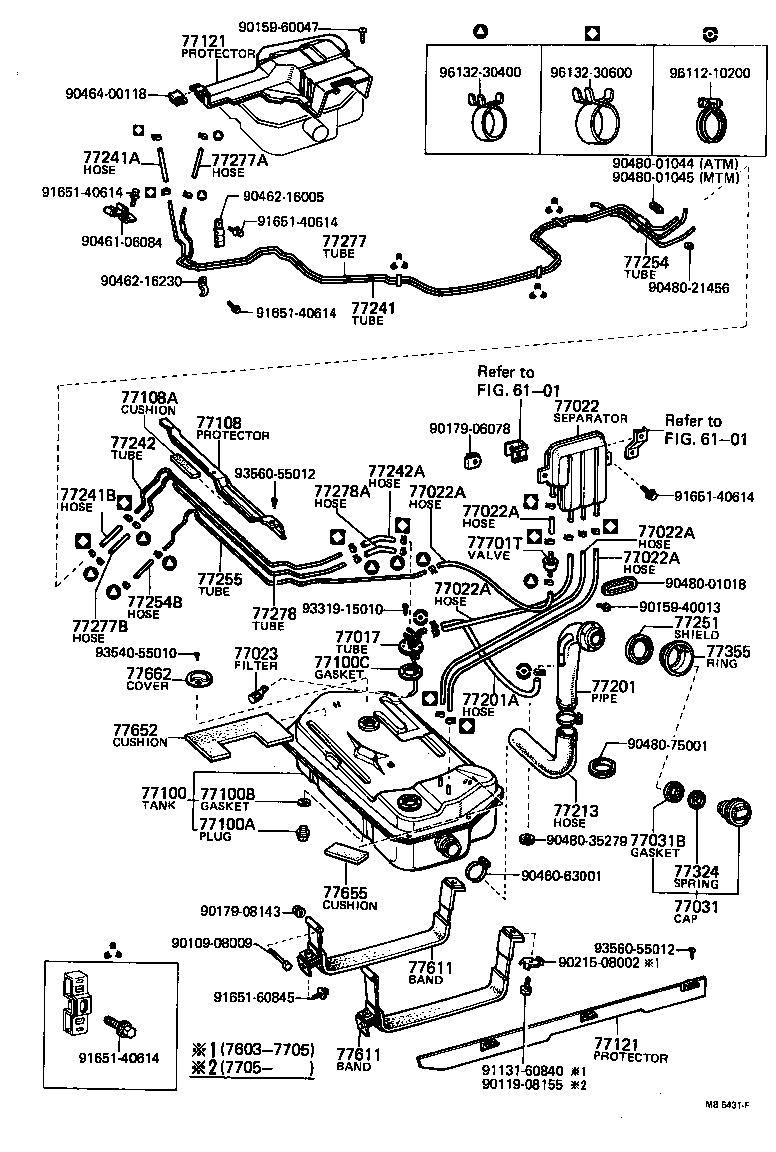

| Linked diagrams | ||||
| 6101 | ||||
