Toyota Corolla/trueno TE51 FRONT SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
COROLLA/TRUENO
TE51L-LMQB (1976)
7101 - FRONT SEAT & SEAT TRACK

TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979

Engine 2TB

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7408-7701) ; (7701- )ARL

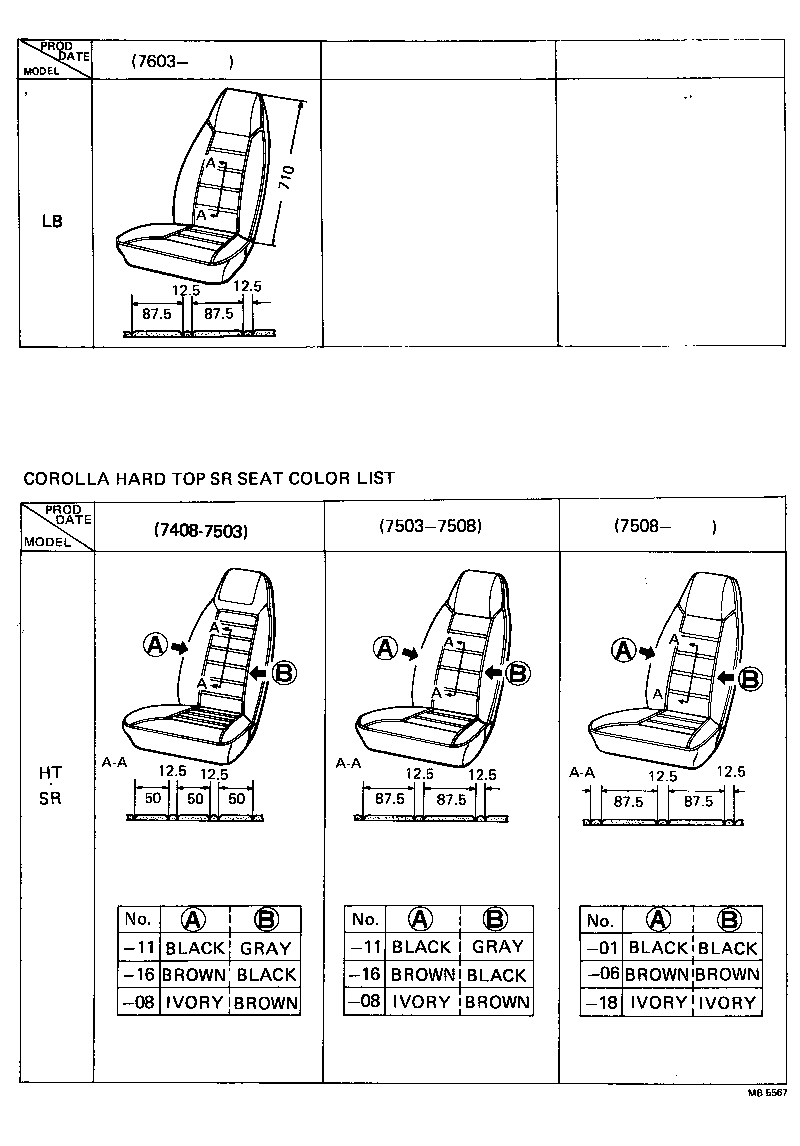

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1251001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71071-1251006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71071-1250008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71071-1251008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71071-1250006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71071-1250001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71071-1286106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71071-1286001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71071-1286103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71071-1286104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71071-1286006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-1251001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71072-1250001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71072-1250006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71072-1250008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71072-1251008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71072-1251006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71072-1286104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71072-1286001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71072-1286006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71072-1286106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71072-1286103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1260001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1260008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1289006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71073-1261008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1261006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1261001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1289001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71073-1289106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71073-1289103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71073-1289104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-1261001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1260008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1261006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1289001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71073-1261008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1289006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71073-1289106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71073-1289104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71073-1289103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-1256001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71410-1257001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71410-1256008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71410-1257008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71410-1256006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71410-1A03006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71410-1257006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71410-1A03104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71410-1A03106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71410-1A03001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71410-1A03103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-1260008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71420-1259006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71420-1259001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71420-1260001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71420-1259008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71420-1260006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71420-1A03001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71420-1A03006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71420-1A03103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71420-1A03106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71420-1A03104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-1262006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71430-1271001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71430-1271006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71430-1262008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71430-1271008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71430-1262001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71430-1288001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71430-1288006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71430-1288106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71430-1288103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71430-1288104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-1261001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71440-1261006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71440-1262001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71440-1261008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71440-1262006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71440-1288001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71440-1262008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71440-1288006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71440-1288104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71440-1288106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71440-1288103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-12161	KE30,35,50,TE47,51	08/1974 - 01/1977	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-12151	KE30,35,50,TE47,51	08/1974 - 01/1977	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	KE30,35,5#,TE47,51	08/1974 - 07/1981	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	KE30,35,5#,TE47,51	08/1974 - 07/1981	1
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-12272	KE3#,5#,TE3#,47,51 W/O RECLINING	08/1974 - 07/1981	2
90506-14508	KE3#,5#,TE3#,47,51 W/RECLINING	08/1974 - 07/1981	2
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-12272	KE3#,5#,TE3#,47,51 W/O RECLINING	08/1974 - 07/1981	2
90506-14508	KE3#,5#,TE3#,47,51 W/RECLINING	08/1974 - 07/1981	2
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-12272	KE3#,5#,TE3#,47,51 W/O RECLINING	08/1974 - 07/1981	2
90506-14508	KE3#,5#,TE3#,47,51 W/RECLINING	08/1974 - 07/1981	2
72553 - COVER, RECLINING PEDAL
72553-12020	KE35,50,TE47,51 ARAKAWA	08/1974 - 07/1981	1
Common parts
71854-12010
90119-10017
90176-08010
90386-12191
90564-14155
94511-00800
94612-10800

(7408-7701)KE35,50,TE37,51

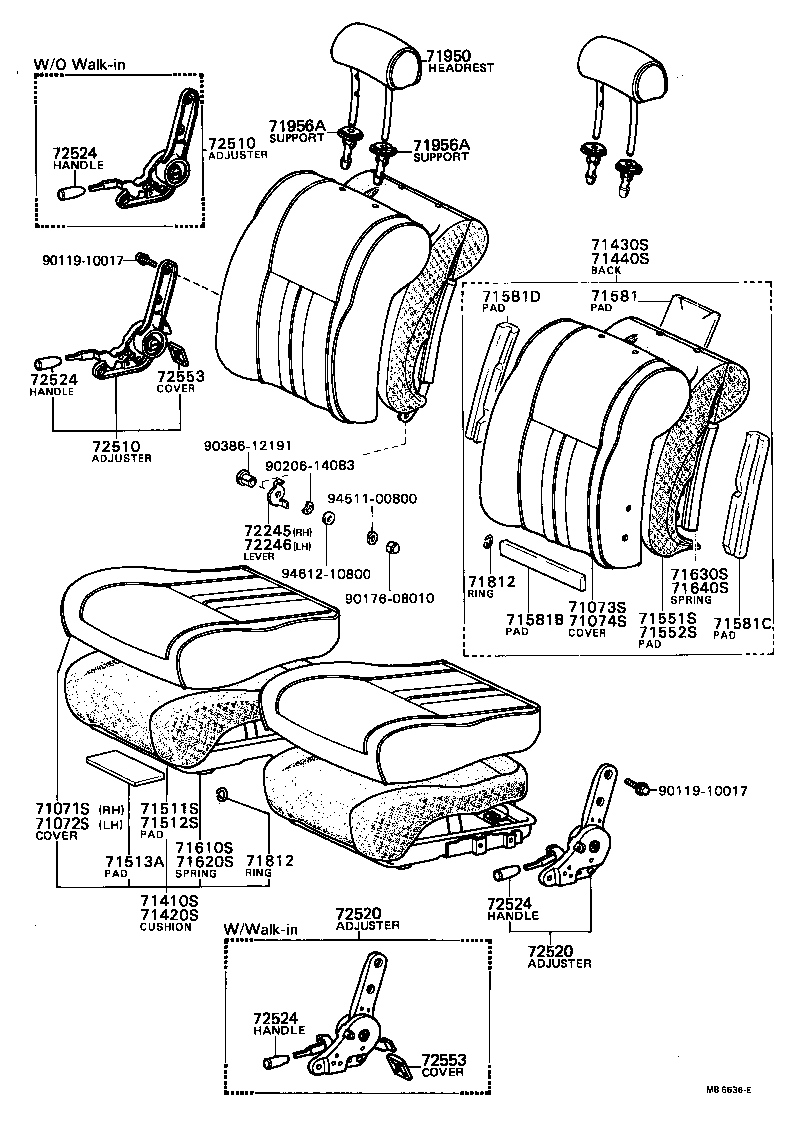

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

(7701- )EUR,GEN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1251001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71071-1251006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71071-1250008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71071-1251008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71071-1250006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71071-1250001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71071-1286106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71071-1286001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71071-1286103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71071-1286104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71071-1286006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-1251001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71072-1250001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71072-1250006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71072-1250008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71072-1251008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71072-1251006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71072-1286104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71072-1286001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71072-1286006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71072-1286106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71072-1286103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1260001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1260008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1289006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71073-1261008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1261006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1261001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1289001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71073-1289106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71073-1289103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71073-1289104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-1261001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71073-1260006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1260008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1261006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71073-1289001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71073-1261008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71073-1289006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71073-1289106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71073-1289104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71073-1289103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-1256001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71410-1257001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71410-1256008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71410-1257008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71410-1256006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71410-1A03006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71410-1257006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71410-1A03104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71410-1A03106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71410-1A03001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71410-1A03103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-1260008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71420-1259006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71420-1259001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71420-1260001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71420-1259008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71420-1260006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71420-1A03001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71420-1A03006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71420-1A03103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71420-1A03106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71420-1A03104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-1262006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71430-1271001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71430-1271006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71430-1262008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71430-1271008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71430-1262001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71430-1288001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71430-1288006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71430-1288106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71430-1288103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71430-1288104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-1261001	KE50,TE51 FB,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71440-1261006	KE50,TE51 FB,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71440-1262001	TE51..GSL K-TY,BLACK,BLACK,TRIM2#	03/1976 - 01/1977	1
71440-1261008	KE50,TE51 FB,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71440-1262006	TE51..GSL K-TY,BROWN,BROWN,TRIM4#	03/1976 - 01/1977	1
71440-1288001	KE50,TE47,51..EUR,GEN FB,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71440-1262008	TE51..GSL K-TY,IVORY,IVORY,TRIM0#	03/1976 - 01/1977	1
71440-1288006	KE50,TE47,51..EUR,GEN FB,LIGHT BROWN,BROWN,TRIM4#	01/1977 - 05/1978	1
71440-1288104	KE50,TE47,51 FB,BLUE,BLUE,TRIM8#	05/1978 - 08/1979	1
71440-1288106	KE50,TE47,51 FB,LIGHT BROWN,BROWN,TRIM4#	05/1978 - 08/1979	1
71440-1288103	KE50,TE47,51 FB,GRAY & BLACK,GRAY,TRIM2#	05/1978 - 08/1979	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-12161	KE30,35,50,TE47,51	08/1974 - 01/1977	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-12151	KE30,35,50,TE47,51	08/1974 - 01/1977	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	KE30,35,5#,TE47,51	08/1974 - 07/1981	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071	KE30,35,5#,TE47,51	08/1974 - 07/1981	1
71950 - HEADREST ASSY, FRONT SEAT
71910-3015101	KE3#,50,TE47,51..EUR,GEN DENMARK SPEC,BLACK,BLACK,TRIM2#	01/1977 - 05/1978	1
71910-3015105	KE3#,50,TE47,51..EUR,GEN DENMARK SPEC,BEIGE,BEIGE,TRIM4#	01/1977 - 05/1978	1
72553 - COVER, RECLINING PEDAL
72553-12020	KE35,50,TE47,51 ARAKAWA	08/1974 - 07/1981	1
72553 - COVER, RECLINING PEDAL
72553-12020	KE35,50,TE47,51 ARAKAWA	08/1974 - 07/1981	1
Common parts
90119-10017
90176-08010
90206-14083
90386-12191
94511-00800
94612-10800

TE51L-LMQB (1976)

(7408-7701) ; (7701- )ARL

(7408-7701)KE35,50,TE37,51

(7701- )EUR,GEN,SA

Part Price Details
