TE51L-LMQB (1976)
Toyota Corolla/Trueno
Production
Mar 1976
-
Aug 1979
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7603-7908)LB

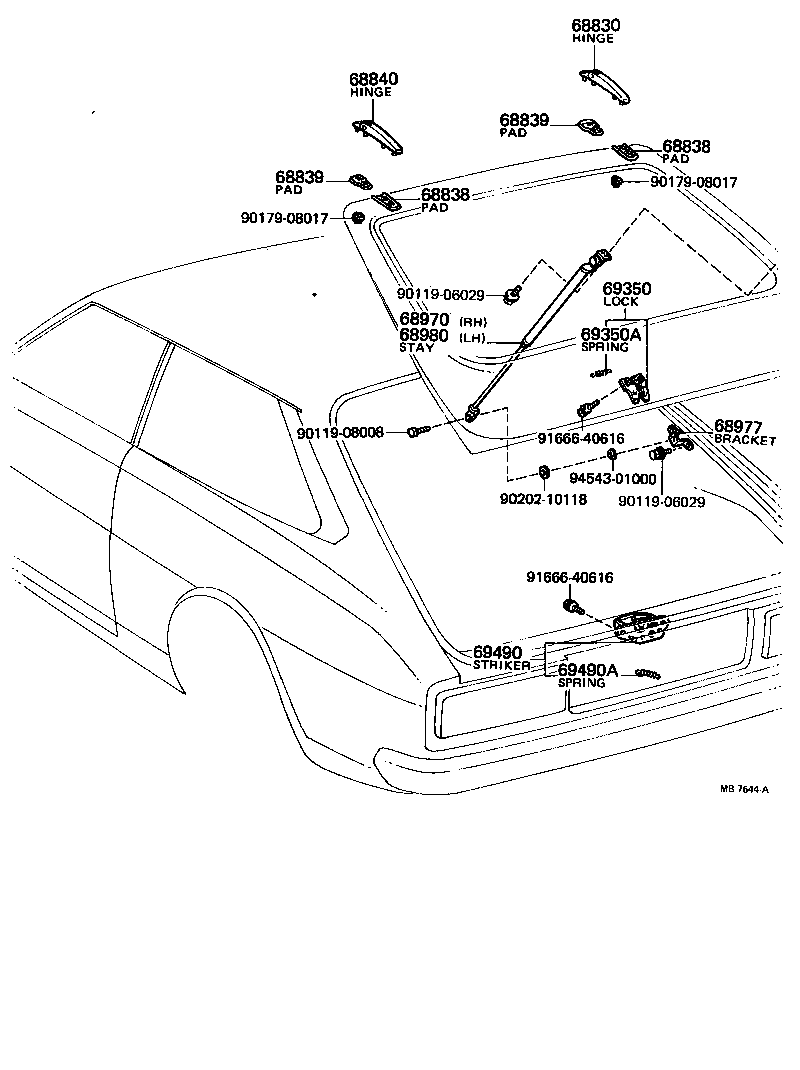

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-12010 |
KE5#,TE51..LB |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68863-12010 |
KE5#,TE51..LB |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68863-12010 |
KE5#,TE51..LB |
2 | ||
| 68839 - PAD, BACK DOOR HINGE, NO.2 | ||||
| 68862-12010 |
KE5#,TE51..LB LH |
1 | ||
| 68861-12020 |
KE5#,TE51..LB RH |
1 | ||
| 68839 - PAD, BACK DOOR HINGE, NO.2 | ||||
| 68862-12010 |
KE5#,TE51..LB LH |
1 | ||
| 68861-12020 |
KE5#,TE51..LB RH |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-12010 |
KE5#,TE51..LB |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-12010 |
KE5#,TE51..LB |
1 | ||
| 68977 - BRACKET, BACK DOOR STAY | ||||
| 68955-12010 |
KE5#,TE51..LB |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-12010 |
KE5#,TE51..LB |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12010 |
KE5#,TE51..LB |
1 | ||
| 69350A - SPRING(FOR BACK DOOR LOCK) | ||||
| 90506-08107 |
KE5#,TE51..LB |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12010 |
KE5#,TE51..LB |
1 | ||
| 69490A - SPRING(FOR BACK DOOR LOCK STRIKER) | ||||
| 90501-07484 |
KE5#,TE51..LB COMPRESSION |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-08008 | ||||
| 90179-08017 | ||||
| 90202-10118 | ||||
| 91666-40616 | ||||
| 94543-01000 | ||||
