TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)CP,LB

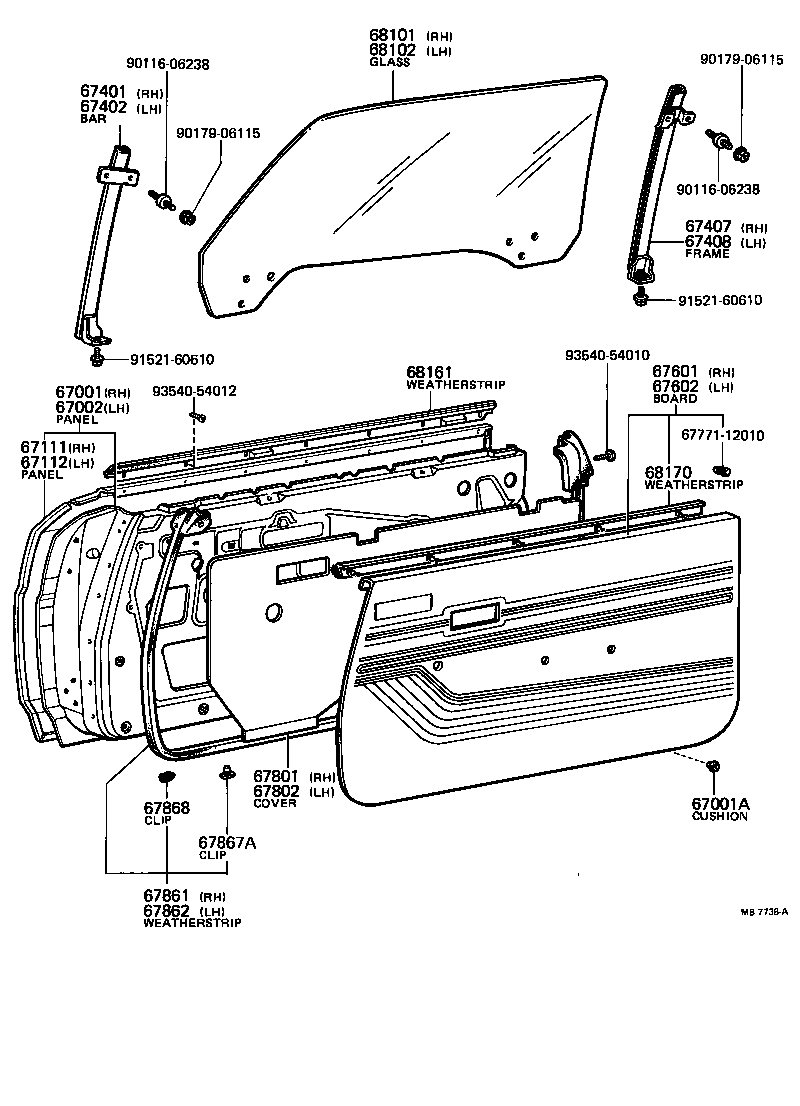

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401 67402 67407 67408 67601 67602 6777112010 67801 67802 67861 67862 67867A 67868 68101 68102 68161 68170 9011606238 9011606238 9017906115 9017906115 9152160610 9152160610 9354054010 9354054012
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-12250

KE50,TE47,51..EUR,GEN

W/O MIRROR HOLE

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09007

KE5#,TE47,51..CP,LB

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-12350

KE50,TE47,51..LHD

W/MIRROR HOLE

 1
67002-12260

KE50,TE47,51..EUR,GEN

W/O MIRROR HOLE

 1
67002-12351

KE50,TE47,51..LHD

W/MIRROR HOLE

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12160

KE5#,TE47,51..CP,LB

W/O MIRROR HOLE

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12160

KE5#,TE47,51..CP,LB

W/O MIRROR HOLE

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-12090

KE5#,TE47,51..CP,LB

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-12090

KE5#,TE51..LB

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12030

KE5#,TE47,51..CP,LB

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12030

KE5#,TE47,51..CP,LB

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1264001

KE5#,TE47,51..CP,LB

BLACK,BLACK,TRIM2#

 1
67610-1264006

KE5#,TE47,51..CP,LB

LIGHT BROWN,BROWN,TRIM4#

 1
67610-1264014

KE5#,TE47,51..CP,LB

BLUE,BLUE,TRIM8#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1246001

KE5#,TE47,51..CP,LB

BLACK,BLACK,TRIM2#

 1
67620-1246006

KE5#,TE47,51..CP,LB

LIGHT BROWN,BROWN,TRIM4#

 1
67620-1246014

KE5#,TE47,51..CP,LB

BLUE,BLUE,TRIM8#

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-12070

KE5#,TE47,51..CP,LB

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67831-12070

KE5#,TE47,51..CP,LB

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12200

KE5#,TE47,51..CP,LB

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12200

KE5#,TE47,51..CP,LB

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-12020

KE5#,TE47,51..CP,LB

 41
67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP
67868-30030

KE35,5#,TE37,47,51..2D

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-12260

KE50,TE51..EUR,GEN

*TT,T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-12260

KE50,TE51..EUR,GEN

*TT,T=5.0

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-12100

KE5#,TE47,51..CP,LB

RH

 1
68220-12060

KE5#,TE47,51..CP,LB

LH

 1
Common parts
67771-12010
90116-06238
90179-06115
91521-60610
93540-54010
93540-54012
