TE51L-LMQB (1976)
Toyota Corolla/Trueno
Production
Mar 1976
-
Aug 1979
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7603-7908)LB

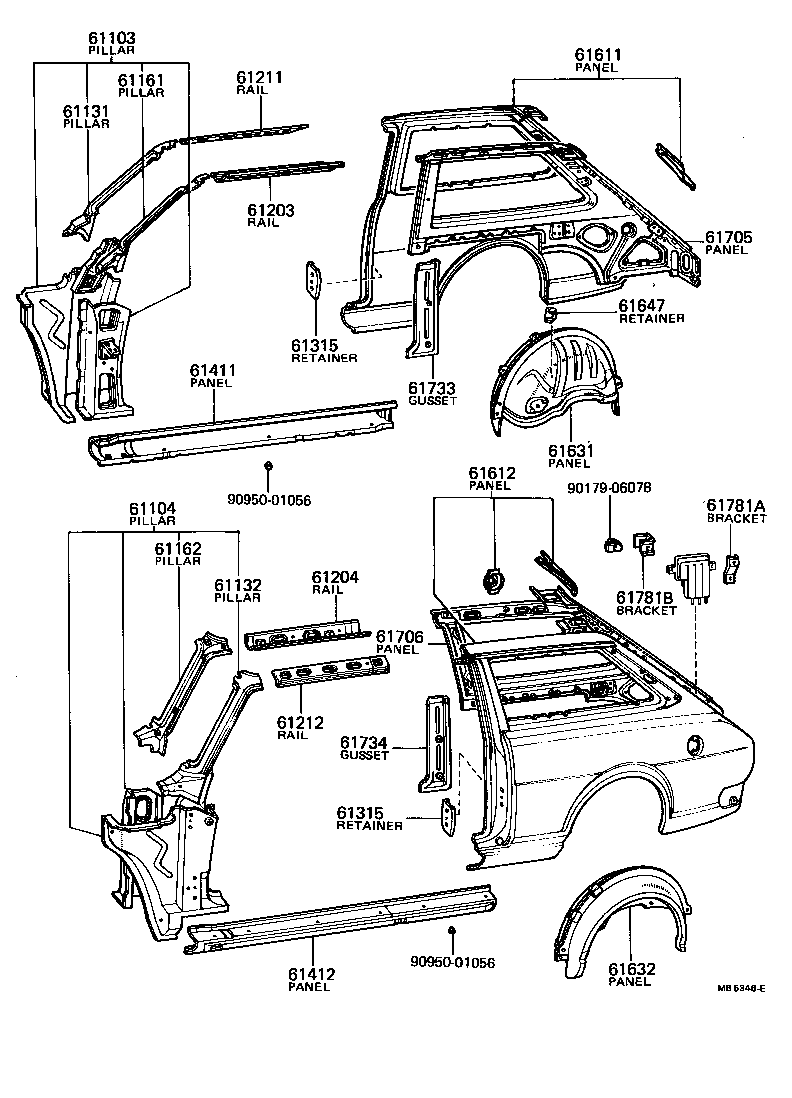

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-12130 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61103-12161 |
KE50,TE47,51 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61104-12131 |
KE50,TE47,51 |
1 | ||
| 61104-12200 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12120 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12100 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-12070 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-12070 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-12160 |
KE5#,TE51..LB |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-12110 |
KE5#,TE51..LB |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12120 |
KE5#,TE51..LB |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12120 |
KE5#,TE51..LB |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12150 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61411-12903 |
KE50,TE47,51 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12150 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61412-12903 |
KE50,TE47,51 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-12240 |
TE51..GSL |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-12140 |
TE51..GSL |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-12110 |
KE5#,TE51..LB |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-12110 |
KE5#,TE51..LB |
1 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61648-12030 |
KE5#,TE51..LB LH |
1 | ||
| 61647-12030 |
KE5#,TE51..LB RH |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-12923 |
KE50,TE51 |
1 | ||
| 61705-12923 |
KE5#,TE51..LB..(ARL,GEN) |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-12923 |
KE5#,TE51..LB..(ARL,GEN) |
1 | ||
| 61706-12923 |
KE50,TE51 |
1 | ||
| 61733 - GUSSET, QUARTER, INNER RH | ||||
| 61733-12050 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61734 - GUSSET, QUARTER, INNER LH | ||||
| 61734-12060 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61781A - BRACKET, FUEL EVAPORATIVE SEPARATOR, NO.1 | ||||
| 61781-12010 |
KE5#,TE51..LB |
1 | ||
| 61781B - BRACKET, FUEL EVAPORATIVE SEPARATOR, NO.2 | ||||
| 61782-12010 |
KE5#,TE51..LB |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 90950-01056 | ||||
