TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7603-7908)LB

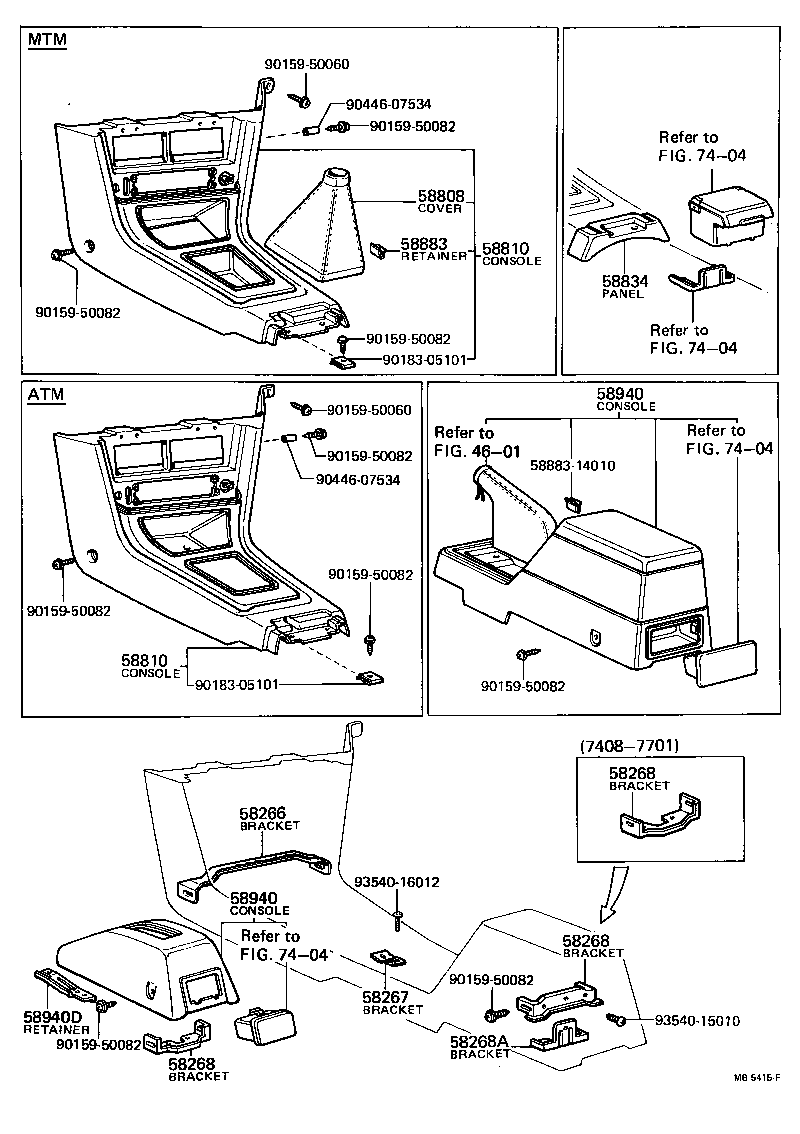

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58851-12040 |
KE50,TE51..MTM |
1 | ||
| 58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER | ||||
| 58852-12040 |
KE50,TE51 |
1 | ||
| 58268 - BRACKET, CONSOLE BOX SUPPORT, REAR | ||||
| 58853-12020 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58853-12030 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58268 - BRACKET, CONSOLE BOX SUPPORT, REAR | ||||
| 58853-12020 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58853-12030 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58268 - BRACKET, CONSOLE BOX SUPPORT, REAR | ||||
| 58853-12020 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58853-12030 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58268A - BRACKET, CONSOLE BOX SUPPORT, NO.2 | ||||
| 58854-12010 |
KE35,TE37,47,51..GSL,GT,SR,ST |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1204001 |
KE5#,TE47,51..(CP,LB)..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58808-1204004 |
KE5#,TE47,51..(CP,LB)..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1204006 |
KE5#,TE47,51..(CP,LB)..MTM LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58810-1226006 |
TE51..LHD..GSL BROWN,BROWN,TRIM0#,4# |
1 | ||
| 58810-1226001 |
TE51..LHD..GSL BLACK,BLACK,TRIM0#,2# |
1 | ||
| 58810-1236001 |
TE47,51..LHD..(GSL,GT,LT,ST) BLACK,BLACK,TRIM2# |
1 | ||
| 58810-1236006 |
TE47,51..LHD..(GSL,GT,LT,ST) LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 58810-1236004 |
TE47,51..LHD..(GSL,GT,LT,ST) BLUE,BLUE,TRIM8# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58810-1226006 |
TE51..LHD..GSL BROWN,BROWN,TRIM0#,4# |
1 | ||
| 58810-1226001 |
TE51..LHD..GSL BLACK,BLACK,TRIM0#,2# |
1 | ||
| 58810-1236001 |
TE47,51..LHD..(GSL,GT,LT,ST) BLACK,BLACK,TRIM2# |
1 | ||
| 58810-1236006 |
TE47,51..LHD..(GSL,GT,LT,ST) LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 58810-1236004 |
TE47,51..LHD..(GSL,GT,LT,ST) BLUE,BLUE,TRIM8# |
1 | ||
| 58883 - RETAINER, SHIFTING HOLE COVER | ||||
| 58883-22010 |
KE5#,TE47,51..(CP,LB)..MTM |
4 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58950-1202006 |
TE47,51..GSL,GT W/ARMREST,BROWN,BROWN,TRIM0#,4# |
1 | ||
| 58950-1202001 |
TE47,51..GSL,GT W/ARMREST,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 58950-1202004 |
TE47,51..GSL,GT W/ARMREST,BLUE,BLUE,TRIM8# |
1 | ||
| 58950-1202016 |
TE47,51..GSL,GT W/ARMREST,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58950-1202006 |
TE47,51..GSL,GT W/ARMREST,BROWN,BROWN,TRIM0#,4# |
1 | ||
| 58950-1202001 |
TE47,51..GSL,GT W/ARMREST,BLACK,BLACK,TRIM0#,2# |
1 | ||
| 58950-1202004 |
TE47,51..GSL,GT W/ARMREST,BLUE,BLUE,TRIM8# |
1 | ||
| 58950-1202016 |
TE47,51..GSL,GT W/ARMREST,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 58883-14010 | ||||
| 90159-50060 | ||||
| 90159-50082 | ||||
| 90183-05101 | ||||
| 90446-07534 | ||||
| 93540-15010 | ||||
| 93540-16012 | ||||
| Linked diagrams | ||||
| 4601 | ||||
| 7404 | ||||
