TE51L-LMQB (1976)
Toyota Corolla/Trueno
Production
Mar 1976
-
Aug 1979
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7603-7908)LB

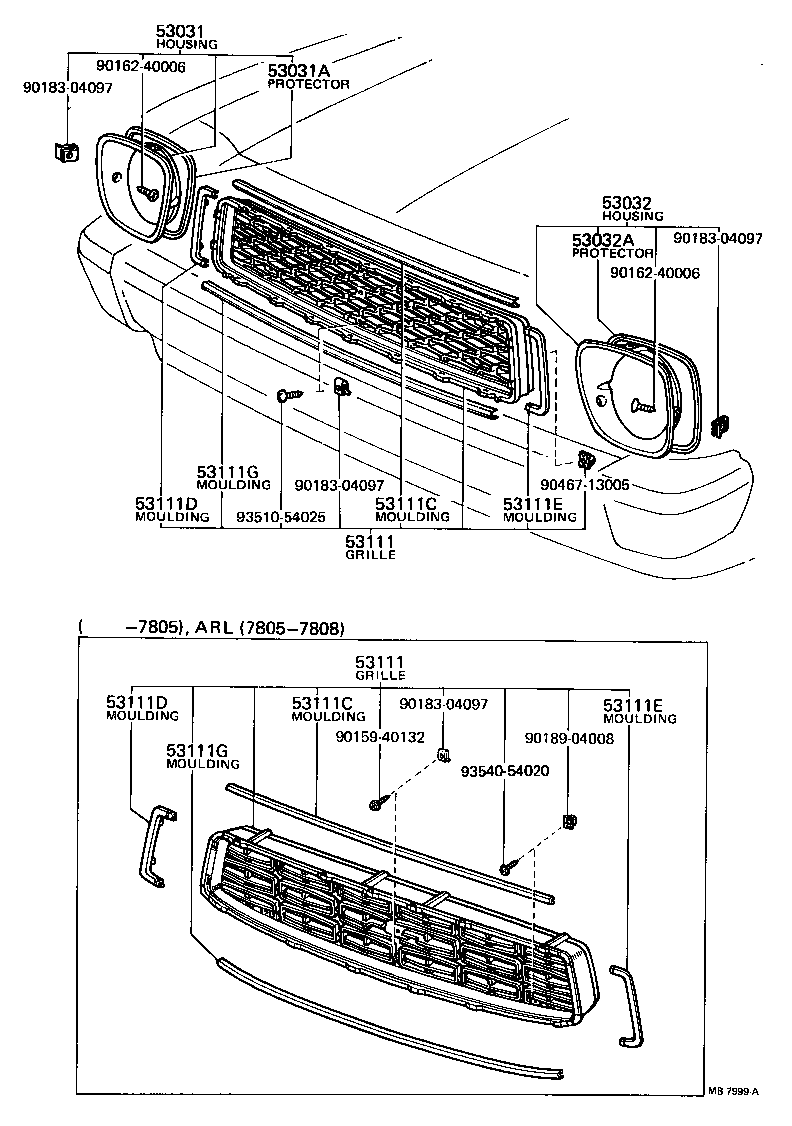

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53031-19085 |
TE51 |
1 | ||
| 53031A - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53139-12050 |
KE5#,TE51..LB |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53032-19075 |
TE51 |
1 | ||
| 53032A - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-12050 |
KE5#,TE51..LB |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19375 |
KE50,TE51 |
1 | ||
| 53100-19015 |
KE50,TE51 |
1 | ||
| 53100-19015 |
KE5#,TE51..LB |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19375 |
KE50,TE51 |
1 | ||
| 53100-19015 |
KE50,TE51 |
1 | ||
| 53100-19015 |
KE5#,TE51..LB |
1 | ||
| 53111C - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 75511-12070 |
KE50,TE51 |
1 | ||
| 75511-12071 |
KE5#,TE51..LB |
1 | ||
| 75511-12071 |
KE50,TE51 |
1 | ||
| 53111C - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 75511-12070 |
KE50,TE51 |
1 | ||
| 75511-12071 |
KE5#,TE51..LB |
1 | ||
| 75511-12071 |
KE50,TE51 |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 75513-12040 |
KE50,TE51 |
1 | ||
| 75513-12041 |
KE50,TE51 |
1 | ||
| 75513-12041 |
KE5#,TE51..LB |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 75513-12040 |
KE50,TE51 |
1 | ||
| 75513-12041 |
KE50,TE51 |
1 | ||
| 75513-12041 |
KE5#,TE51..LB |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 75514-12031 |
KE50,TE51 |
1 | ||
| 75514-12031 |
KE5#,TE51..LB |
1 | ||
| 75514-12030 |
KE50,TE51 |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 75514-12031 |
KE50,TE51 |
1 | ||
| 75514-12031 |
KE5#,TE51..LB |
1 | ||
| 75514-12030 |
KE50,TE51 |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 75512-12031 |
KE5#,TE51..LB |
1 | ||
| 75512-12030 |
KE50,TE51 |
1 | ||
| 75512-12031 |
KE50,TE51 |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 75512-12031 |
KE5#,TE51..LB |
1 | ||
| 75512-12030 |
KE50,TE51 |
1 | ||
| 75512-12031 |
KE50,TE51 |
1 | ||
| Common parts | ||||
| 90159-40132 | ||||
| 90162-40006 | ||||
| 90183-04097 | ||||
| 90189-04008 | ||||
| 90467-13005 | ||||
| 93510-54025 | ||||
| 93540-54020 | ||||
