TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)TE3#,47,51

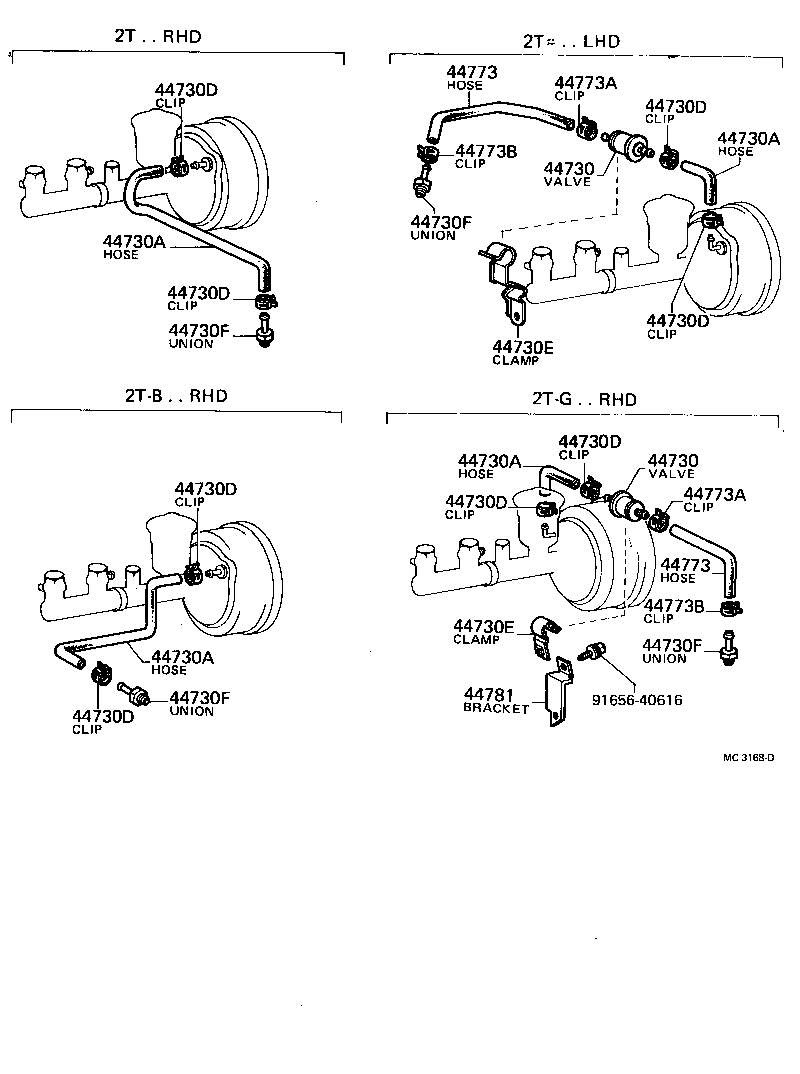

Click highlighted areas on diagram

diagram 44730 44730 44730A 44730A 44730A 44730A 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730E 44730E 44730F 44730F 44730F 44730F 44773 44773 44773A 44773A 44773B 44773B 44781 9165640616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
Common parts
91656-40616

(7408-7807)KE30,35,50 ; (7408-7807)KE36..ARL,EUR,GEN ; (7807- )KE3#,5#

Click highlighted areas on diagram

diagram 44730 44730 44730 44730 44730A 44730A 44730A 44730A 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730D 44730E 44730E 44730E 44730E 44730F 44730F 44730F 44730F 44773 44773 44773 44773 44773A 44773A 44773A 44773A 44773B 44773B 44773B 44773B 44781 9161140812 9165140612 9165160612 9165640616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

TE47,51..LHD;TE47..RHD..GT

 1
44730-20010

KE30,35,50;KE36..ARL,EUR,GEN

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14032

KE30,35,36,50..LHD

 1
44772-12040

TE47,51..LHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 2
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE47,51..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773 - HOSE, VACUUM, NO.2
44773-12081

TE47,51..LHD

 1
44773-12070

KE30,35,36,50..LHD

 1
44773-12080

TE47,51..LHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90467-16141

TE47,51..LHD;TE47..RHD..GT

 1
90467-16141

KE30,35,50;KE36..ARL,EUR,GEN

 1
Common parts
91611-40812
91651-40612
91651-60612
91656-40616
