TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7408-7701)KE3#,50..ARL,EUR,GEN ; (7408-7701)KE3#,50..ARL,EUR,GEN ; (7701-7908)KE36

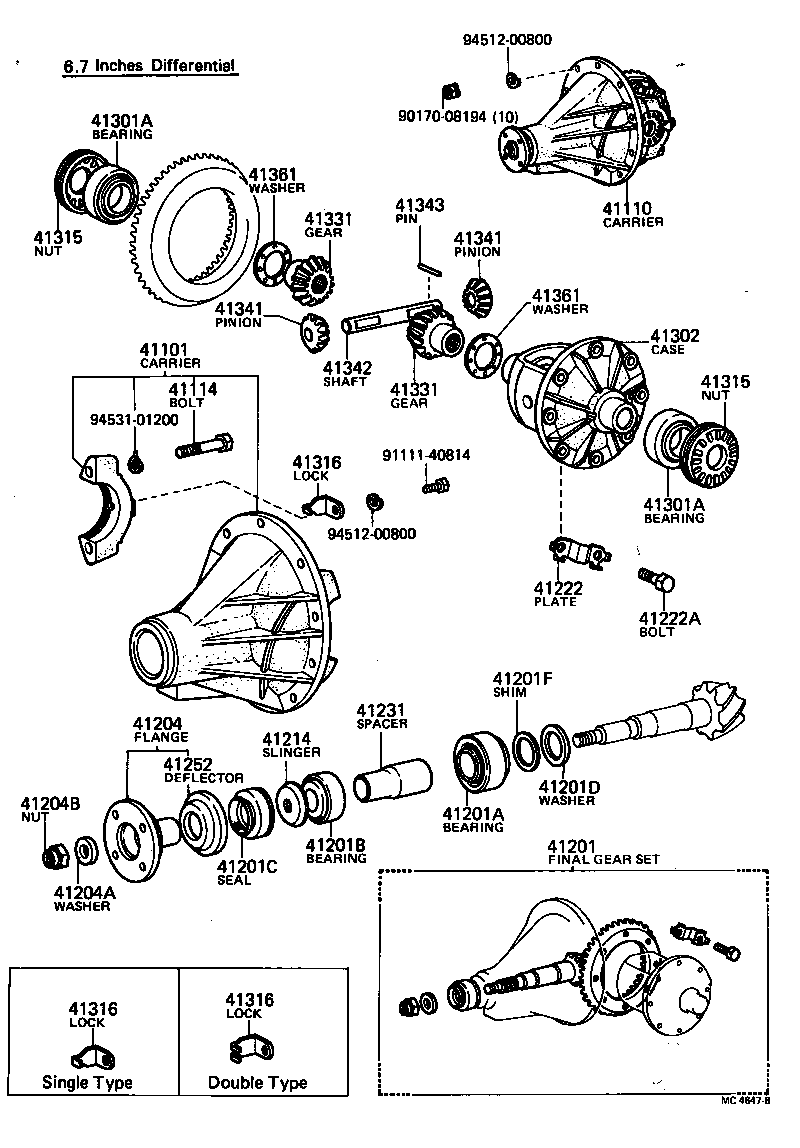

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30069 |
TE47,51 |
1 | ||
| 90368-30069 |
TE47,51 |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40614 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
(7701-7908)KE30,35,38,5#..ARL,EUR,GEN ; (7908-)ARL,GEN ; (7908- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30069 |
TE47,51 |
1 | ||
| 90368-30069 |
TE47,51 |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41351-12010 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40614 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
(7408-7908)GSL,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30069 |
TE47,51 |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
(7408-7701)ARL,EUR,GEN ; (7408-7701)ARL,EUR,GEN; (7701- ) ; (7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90114-08003 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 90114-08003 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90116-08235 |
TE47,51..GSL,GT S=12 & 15,L=34,L=33,S=12 & 16 |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90114-08003 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 90114-08003 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90116-08235 |
TE47,51..GSL,GT S=12 & 15,L=34,L=33,S=12 & 16 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-12050 |
TE47,51..GSL,GT |
1 | ||
| 42110-19035 |
TE47,51..GSL,GT |
1 | ||
| 42101-12060 |
KE30,35,50 |
1 | ||
| 42110-12052 |
TE47,51..GSL,GT |
1 | ||
| 42101-12061 |
KE30,35,5#..ARL,EUR,GEN |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-12050 |
TE47,51..GSL,GT |
1 | ||
| 42110-19035 |
TE47,51..GSL,GT |
1 | ||
| 42101-12060 |
KE30,35,50 |
1 | ||
| 42110-12052 |
TE47,51..GSL,GT |
1 | ||
| 42101-12061 |
KE30,35,5#..ARL,EUR,GEN |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-22060 |
TE47,51..GSL,GT |
1 | ||
| 04412-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 04412-10011 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 42139-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 42139-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 42139-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 42139-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-12010 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 42181-22010 |
TE47,51..GSL,GT |
1 | ||
| 42181-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-12010 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 42181-22010 |
TE47,51..GSL,GT |
1 | ||
| 42181-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
(7408-7701)TE47,51..DLX,LT,ST ; (7408-7701)TE47,51..DLX,LT,ST ; (7701-8004)TE3#,47,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41101-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41101-22010 |
TE47,51..GSL,GT |
1 | ||
| 41101-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20260 |
TE47,51..GSL,GT *AXC=T282 |
1 | ||
| 41110-20180 |
TE51..GSL *AXC=T292 |
1 | ||
| 41110-12050 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL *AXC=U282 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
TE47,51..GSL,GT |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29195 |
TE51..GSL N=41:10 |
1 | ||
| 41201-19195 |
KE36,50;KE35..EUR,GEN;KE35..A20..ARL N=43:10 |
1 | ||
| 41201-29205 |
TE47,51..GSL,GT N=43:10 |
1 | ||
| 41201-19196 |
KE35,36,50 N=43:10 |
1 | ||
| 41201-29196 |
TE51..GSL N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-30069 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-34049 |
TE47,51..GSL,GT |
1 | ||
| 90368-30069 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30069 |
TE47,51 |
1 | ||
| 90366-25047 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90368-30069 |
TE47,51..GSL,GT |
1 | ||
| 90366-25047 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90368-30002 |
TE3#,47,51 |
1 | ||
| 90368-30069 |
TE3#,47,51 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TE47,51 |
1 | ||
| 90311-35131 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90311-38015 |
TE47,51..GSL,GT |
1 | ||
| 90311-38124 |
TE3#,47,51 |
1 | ||
| 90311-35131 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-30241 |
KE3#,50..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30234 |
KE3#,50..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30238 |
KE3#,50..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30235 |
KE3#,50..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30240 |
KE3#,50..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30237 |
KE3#,50..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 90201-30540 |
KE3#,50..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30239 |
KE3#,50..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30236 |
KE3#,50..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-30543 |
KE3#,50..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30541 |
KE3#,50..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30542 |
KE3#,50..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30539 |
KE3#,50..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30544 |
KE3#,50..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-35398 |
TE47,51..GSL,GT T=2.42,MARK 07,T=2.42 |
1 | ||
| 90201-35401 |
TE47,51..GSL,GT T=2.51,MARK 10,T=2.51 |
1 | ||
| 90201-35402 |
TE47,51..GSL,GT T=2.54,MARK 11,T=2.54 |
1 | ||
| 90201-35404 |
TE47,51..GSL,GT T=2.60,MARK 13,T=2.60 |
1 | ||
| 90201-35396 |
TE47,51..GSL,GT T=2.36,MARK 05,T=2.36 |
1 | ||
| 90201-35397 |
TE47,51..GSL,GT T=2.39,MARK 06,T=2.39 |
1 | ||
| 90201-35400 |
TE47,51..GSL,GT T=2.48,MARK 09,T=2.48 |
1 | ||
| 90201-35437 |
TE47,51..GSL,GT T=2.33,MARK 04,T=2.36 |
1 | ||
| 90201-35399 |
TE47,51..GSL,GT T=2.43,MARK 08,T=2.45 |
1 | ||
| 90201-35440 |
TE47,51..GSL,GT T=2.69,MARK 16,T=2.69 |
1 | ||
| 90201-35403 |
TE47,51..GSL,GT T=2.57,MARK 12,T=2.57 |
1 | ||
| 90201-35438 |
TE47,51..GSL,GT T=2.63,MARK 14,T=2.63 |
1 | ||
| 90201-35435 |
TE47,51..GSL,GT T=2.27,MARK 02,T=2.27 |
1 | ||
| 90201-30234 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.33 |
1 | ||
| 90201-30236 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.39 |
1 | ||
| 90201-35436 |
TE47,51..GSL,GT T=2.30,MARK 03,T=2.30 |
1 | ||
| 90201-35439 |
TE47,51..GSL,GT T=2.66,MARK 15,T=2.66 |
1 | ||
| 90201-30239 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.47-2.49,T=2.48 |
1 | ||
| 90201-30235 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.36 |
1 | ||
| 90201-30242 |
KE3#,50..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30241 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.53-2.55,T=2.54 |
1 | ||
| 90201-30541 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.29-2.31,T=2.30 |
1 | ||
| 90201-30543 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.62-2.64,T=2.63 |
1 | ||
| 90201-30542 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.59-2.61,T=2.60 |
1 | ||
| 90201-30240 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.50-2.52,T=2.51 |
1 | ||
| 90201-30540 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.26-2.28,T=2.27 |
1 | ||
| 90201-30544 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.65-2.67,T=2.66 |
1 | ||
| 90201-30242 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.56-2.58,T=2.57 |
1 | ||
| 90201-30238 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.44-2.46,T=2.45 |
1 | ||
| 90201-30539 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.23-2.25,T=2.24 |
1 | ||
| 90201-30237 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=2.41-2.43,T=2.42 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
TE47,51..GSL,GT |
1 | ||
| 41204-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-16244 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90201-18485 |
TE3#,47,51 |
1 | ||
| 90201-18485 |
TE47,51 |
1 | ||
| 90201-16244 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
TE47,51..GSL,GT S=15,6.7 IN |
1 | ||
| 90179-16052 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 90179-18060 |
TE47,51 S=9 |
1 | ||
| 90179-18001 |
TE3#,47,51 S=15 |
1 | ||
| 90179-16052 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41214-20020 |
TE47,51 |
1 | ||
| 41214-20020 |
TE3#,47,51 |
1 | ||
| 41214-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
TE47,51..GSL,GT |
4 | ||
| 41222-12020 |
KE3#,50..ARL,EUR,GEN |
4 | ||
| 41222-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
4 | ||
| 41222-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 90101-11353 |
TE47,51..GSL,GT |
8 | ||
| 90101-11365 |
KE3#,50..ARL,EUR,GEN |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41231-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41231-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41252-22010 |
TE47,51..GSL,GT |
1 | ||
| 41252-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
TE47,51..GSL,GT |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-12020 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 41311-12021 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41311-22030 |
TE47,51..GSL,GT |
1 | ||
| 41311-12020 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41311-12030 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-12020 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA |
2 | ||
| 41315-12010 |
KE3#,50..ARL,EUR,GEN |
2 | ||
| 41315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 41315-22011 |
TE47,51..GSL,GT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-12010 |
KE3#,50..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41317-12010 |
KE3#,50..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41317-22011 |
TE47,51..GSL,GT DOUBLE TYPE |
2 | ||
| 41317-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN DOUBLE TYPE |
2 | ||
| 41316-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN SINGLE TYPE |
2 | ||
| 41316-22011 |
TE47,51..GSL,GT SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-20010 |
KE3#,50..ARL,EUR,GEN N=16 |
2 | ||
| 41331-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=16 |
2 | ||
| 41331-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=16 |
2 | ||
| 41331-22020 |
TE47,51..GSL,GT N=15 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-20010 |
KE3#,50..ARL,EUR,GEN N=10 |
2 | ||
| 41341-22020 |
TE47,51..GSL,GT N=10 |
2 | ||
| 41341-20010 |
KE35,36,50;KE30..DLX..SA;KE30..ARL,EUR,GEN N=10 |
2 | ||
| 41341-20011 |
KE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41342-22010 |
TE47,51..GSL,GT L=101,OD=17 |
1 | ||
| 41342-12010 |
KE3#,50..ARL,EUR,GEN L=87,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
TE47,51..GSL,GT |
1 | ||
| 90250-04053 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 90250-04053 |
KE3#,50..ARL,EUR,GEN |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12010 |
KE3#,50..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| 41361-12020 |
KE3#,50..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-12030 |
KE3#,50..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12060 |
KE3#,50..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-12050 |
KE3#,50..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-22160 |
TE47,51..GSL,GT T=1.15,MARK 16,T=1.15 |
2 | ||
| 41361-22150 |
TE47,51..GSL,GT T=1.05,MARK 15,T=1.05 |
2 | ||
| 41361-12040 |
KE3#,50..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-12020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.55,T=1.55 |
2 | ||
| 41361-22030 |
TE47,51..GSL,GT T=1.10,MARK 03,T=1.10 |
2 | ||
| 41361-12060 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.75,T=1.75 |
2 | ||
| 41361-22020 |
TE47,51..GSL,GT T=1.00,MARK 02,T=1.00 |
2 | ||
| 41361-22140 |
TE47,51..GSL,GT T=0.95,MARK 14,T=0.95 |
2 | ||
| 41361-12050 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.70,T=1.70 |
2 | ||
| 41361-12040 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.65,T=1.65 |
2 | ||
| 41361-22040 |
TE47,51..GSL,GT T=1.20,MARK 04,T=1.20 |
2 | ||
| 41361-12030 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.60,T=1.60 |
2 | ||
| 41361-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.50,T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
