TE51L-LMQB (1976)
Toyota Corolla/Trueno
(7408-7708)TE47 ; (7408-7708)TE51..GEN ; (7408-7908)KE3#,5#,TE3# ; (7708-7805)TE47,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
KE3#,50,TE47,51 4G,T=2.0,4G |
2 | ||
| 90937-01132 |
KE3#,50,TE47,51 10G,L=20.7,10G |
2 | ||
| 90937-01136 |
KE3#,50,TE47,51 20G,L=41.4,20G |
2 | ||
| 90937-01152 |
KE3#,50,TE47,51 14G,L=29.0,14G |
2 | ||
| 90937-01140 |
KE3#,50,TE47,51 30G,L=62.2,30G |
2 | ||
| 90937-01150 |
KE3#,50,TE47,51 8G,L=16.6,8G |
2 | ||
| 90937-01147 |
KE3#,50,TE47,51 2G,T=2.0,2G |
2 | ||
| 90937-01155 |
KE3#,50,TE47,51 22G,L=45.6,22G |
2 | ||
| 90937-01151 |
KE3#,50,TE47,51 12G,L=24.9,12G |
2 | ||
| 90937-01148 |
KE3#,50,TE3#,47 4G,T=2.0,4G |
2 | ||
| 90937-01136 |
KE3#,50,TE3#,47 20G,L=41.4,20G |
2 | ||
| 90937-01149 |
KE3#,50,TE47,51 6G,L=12.4,6G |
2 | ||
| 90937-01154 |
KE3#,50,TE47,51 18G,L=37.3,18G |
2 | ||
| 90937-01132 |
KE3#,50,TE3#,47 10G,L=20.7,10G |
2 | ||
| 90937-01157 |
KE3#,50,TE47,51 26G,L=53.9,26G |
2 | ||
| 90937-01158 |
KE3#,50,TE47,51 28G,L=58.1,28G |
2 | ||
| 90937-01147 |
KE3#,50,TE3#,47 2G,T=2.0,2G |
2 | ||
| 90937-01156 |
KE3#,50,TE47,51 24G,L=49.7,24G |
2 | ||
| 90937-01148 |
TE51..GEN 4G,T=2.0,4G |
2 | ||
| 90937-01153 |
KE3#,50,TE47,51 16G,L=33.2,16G |
2 | ||
| 90937-01140 |
KE3#,50,TE3#,47 30G,L=62.2,30G |
2 | ||
| 90937-01150 |
KE3#,50,TE3#,47 8G,L=16.6,8G |
2 | ||
| 90937-01150 |
TE51..GEN 8G,L=16.6,8G |
2 | ||
| 90937-01149 |
KE3#,50,TE3#,47 6G,L=12.4,6G |
2 | ||
| 90937-01136 |
TE51..GEN 20G,L=41.4,20G |
2 | ||
| 90937-01151 |
KE3#,50,TE3#,47 12G,L=24.9,12G |
2 | ||
| 90937-01152 |
KE3#,50,TE3#,47 14G,L=29.0,14G |
2 | ||
| 90937-01140 |
TE51..GEN 30G,L=62.2,30G |
2 | ||
| 90937-01147 |
TE51..GEN 2G,T=2.0,2G |
2 | ||
| 90937-01151 |
TE51..GEN 12G,L=24.9,12G |
2 | ||
| 90937-01153 |
TE51..GEN 16G,L=33.2,16G |
2 | ||
| 90937-01152 |
TE51..GEN 14G,L=29.0,14G |
2 | ||
| 90937-01149 |
TE51..GEN 6G,L=12.4,6G |
2 | ||
| 90937-01155 |
TE51..GEN 22G,L=45.6,22G |
2 | ||
| 90937-01132 |
TE51..GEN 10G,L=20.7,10G |
2 | ||
| 90937-01153 |
KE3#,50,TE3#,47 16G,L=33.2,16G |
2 | ||
| 90937-01158 |
KE3#,50,TE3#,47 28G,L=58.1,28G |
2 | ||
| 90937-01140 |
TE3#,47,51..GEN,SA 30G,L=62.2,30G |
2 | ||
| 90937-01149 |
TE3#,47,51..GEN,SA 6G,L=12.4,6G |
2 | ||
| 90937-01148 |
TE3#,47,51..GEN,SA 4G,T=2.0,4G |
2 | ||
| 90937-01157 |
KE3#,50,TE3#,47 26G,L=53.9,26G |
2 | ||
| 90937-01156 |
KE3#,50,TE3#,47 24G,L=49.7,24G |
2 | ||
| 90937-01154 |
TE51..GEN 18G,L=37.3,18G |
2 | ||
| 90937-01136 |
TE3#,47,51..GEN,SA 20G,L=41.4,20G |
2 | ||
| 90937-01154 |
KE3#,50,TE3#,47 18G,L=37.3,18G |
2 | ||
| 90937-01132 |
TE3#,47,51..GEN,SA 10G,L=20.7,10G |
2 | ||
| 90937-01152 |
TE3#,47,51..GEN,SA 14G,L=29.0,14G |
2 | ||
| 90937-01156 |
TE51..GEN 24G,L=49.7,24G |
2 | ||
| 90937-01153 |
TE3#,47,51..GEN,SA 16G,L=33.2,16G |
2 | ||
| 90937-01150 |
TE3#,47,51..GEN,SA 8G,L=16.6,8G |
2 | ||
| 90937-01147 |
TE3#,47,51..GEN,SA 2G,T=2.0,2G |
2 | ||
| 90937-01158 |
TE51..GEN 28G,L=58.1,28G |
2 | ||
| 90937-01157 |
TE51..GEN 26G,L=53.9,26G |
2 | ||
| 90937-01154 |
TE3#,47,51..GEN,SA 18G,L=37.3,18G |
2 | ||
| 90937-01155 |
KE3#,50,TE3#,47 22G,L=45.6,22G |
2 | ||
| 90937-01156 |
TE3#,47,51..GEN,SA 24G,L=49.7,24G |
2 | ||
| 90937-01151 |
TE3#,47,51..GEN,SA 12G,L=24.9,12G |
2 | ||
| 90937-01158 |
TE3#,47,51..GEN,SA 28G,L=58.1,28G |
2 | ||
| 90937-01155 |
TE3#,47,51..GEN,SA 22G,L=45.6,22G |
2 | ||
| 90937-01157 |
TE3#,47,51..GEN,SA 26G,L=53.9,26G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-12220 |
TE47,51..(GSL,GT)..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12220 |
TE51..GSL..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12240 |
TE47,51..GSL,GT L=709,OD=65,3-JOINT |
1 | ||
| 37110-12090 |
KE36,50..GEN L=1348,OD=75,2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08018 |
KE35,36,50;KE30..EUR,GEN;KE30..A20..ARL;KE30..K40..2D..ARL *8-1.25PX22-10 |
4 | ||
| 90101-08214 |
TE51..GEN *8-1.25PX25-12 |
4 | ||
| 90101-08214 |
TE47,51 *8-1.25PX25-12 |
4 | ||
| 90101-08318 |
KE3#,50 |
4 | ||
| 90101-08214 |
TE3#,47,51..GEN,SA *8-1.25PX25-12 |
4 | ||
| 90101-08018 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN *8-1.25PX22-10 |
4 | ||
| 90101-08262 |
TE47,51..(GSL,GT)..GEN |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08018 |
KE35,36,50;KE30..EUR,GEN;KE30..A20..ARL;KE30..K40..2D..ARL *8-1.25PX22-10 |
4 | ||
| 90101-08214 |
TE51..GEN *8-1.25PX25-12 |
4 | ||
| 90101-08214 |
TE47,51 *8-1.25PX25-12 |
4 | ||
| 90101-08318 |
KE3#,50 |
4 | ||
| 90101-08214 |
TE3#,47,51..GEN,SA *8-1.25PX25-12 |
4 | ||
| 90101-08018 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN *8-1.25PX22-10 |
4 | ||
| 90101-08262 |
TE47,51..(GSL,GT)..GEN |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-14010 |
TE51..MTM..GEN |
1 | ||
| 37302-14010 |
TE47,51..MTM |
1 | ||
| 37302-14010 |
TE47,51..MTM..GEN |
1 | ||
| 37302-12011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
TE47,51 |
1 | ||
| 37315-12010 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 37315-20020 |
TE47,51..GEN |
1 | ||
| 37315-20020 |
TE51..GEN |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
TE51..MTM..GEN |
1 | ||
| 37331-12010 |
TE47,51..MTM |
1 | ||
| 37331-12010 |
KE3#,5# |
1 | ||
| 37331-12010 |
TE3#,47,51..MTM..(GEN,SA) |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
TE47,51 |
2 | ||
| 04371-22010 |
TE47,51..GEN |
2 | ||
| 04371-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 04371-22010 |
TE47,51..(GSL,GT)..GEN |
3 | ||
| 04371-22010 |
TE51..GEN |
2 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29070 |
TE47,51 T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29071 |
TE47,51 T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29073 |
TE47,51 T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29070 |
TE51..GEN T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29072 |
TE47,51 T=2.475-2.525,T=2.50 |
8 | ||
| 90521-29072 |
TE51..GEN T=2.475-2.525,T=2.50 |
8 | ||
| 90521-22011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.2,T=1.20 |
8 | ||
| 90521-22012 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.25,T=1.25 |
8 | ||
| 90521-29070 |
TE3#,47,51..GEN,SA T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29072 |
TE3#,47,51..GEN,SA T=2.475-2.525,T=2.50 |
8 | ||
| 90521-22013 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.30,T=1.30 |
8 | ||
| 90521-29071 |
TE3#,47,51..GEN,SA T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29071 |
TE51..GEN T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29073 |
TE3#,47,51..GEN,SA T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29073 |
TE51..GEN T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29073 |
TE47,51..(GSL,GT)..GEN T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29072 |
TE47,51..(GSL,GT)..GEN T=2.475-2.525,T=2.50 |
12 | ||
| 90521-29070 |
TE47,51..(GSL,GT)..GEN T=2.375-2.425,T=2.40 |
12 | ||
| 90521-29071 |
TE47,51..(GSL,GT)..GEN T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
TE47,51 |
8 | ||
| 37402-22020 |
TE51..GEN |
8 | ||
| 37402-10020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 37402-22020 |
TE47,51..GEN |
8 | ||
| 37402-22020 |
TE47,51..(GSL,GT)..GEN |
12 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||

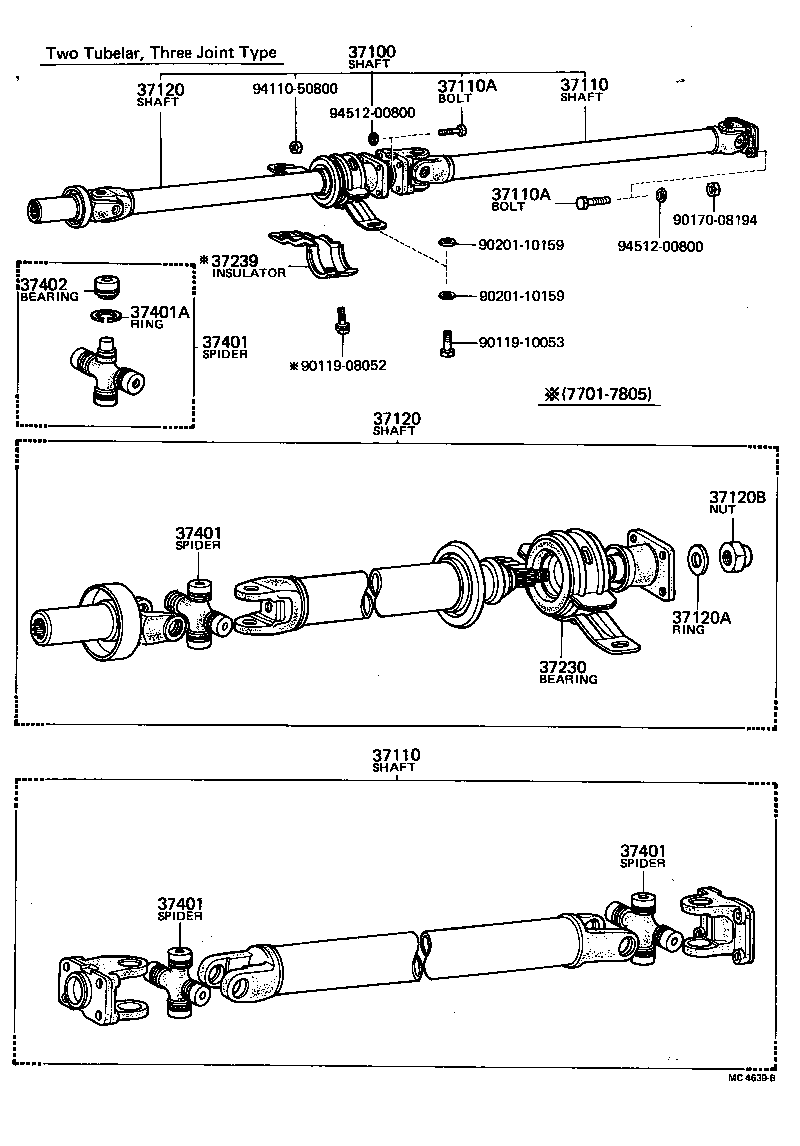

(7701-7708)TE51..EUG ; (7708-7908)TE47,51..EUG ;(7805-7908)GSL,GT..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-12040 |
TE47,51..GSL,GT L=1315,OD=65 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-12220 |
TE47,51..(GSL,GT)..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12220 |
TE51..GSL..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12240 |
TE47,51..GSL,GT L=709,OD=65,3-JOINT |
1 | ||
| 37110-12090 |
KE36,50..GEN L=1348,OD=75,2-JOINT |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-12220 |
TE47,51..(GSL,GT)..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12220 |
TE51..GSL..GEN L=1315,OD=75,2-JOINT |
1 | ||
| 37110-12240 |
TE47,51..GSL,GT L=709,OD=65,3-JOINT |
1 | ||
| 37110-12090 |
KE36,50..GEN L=1348,OD=75,2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08018 |
KE35,36,50;KE30..EUR,GEN;KE30..A20..ARL;KE30..K40..2D..ARL *8-1.25PX22-10 |
4 | ||
| 90101-08214 |
TE51..GEN *8-1.25PX25-12 |
4 | ||
| 90101-08214 |
TE47,51 *8-1.25PX25-12 |
4 | ||
| 90101-08318 |
KE3#,50 |
4 | ||
| 90101-08214 |
TE3#,47,51..GEN,SA *8-1.25PX25-12 |
4 | ||
| 90101-08018 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN *8-1.25PX22-10 |
4 | ||
| 90101-08262 |
TE47,51..(GSL,GT)..GEN |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08018 |
KE35,36,50;KE30..EUR,GEN;KE30..A20..ARL;KE30..K40..2D..ARL *8-1.25PX22-10 |
4 | ||
| 90101-08214 |
TE51..GEN *8-1.25PX25-12 |
4 | ||
| 90101-08214 |
TE47,51 *8-1.25PX25-12 |
4 | ||
| 90101-08318 |
KE3#,50 |
4 | ||
| 90101-08214 |
TE3#,47,51..GEN,SA *8-1.25PX25-12 |
4 | ||
| 90101-08018 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN *8-1.25PX22-10 |
4 | ||
| 90101-08262 |
TE47,51..(GSL,GT)..GEN |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-12020 |
TE47,51..(GSL,GT)..GEN L=606,OD=65 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-12020 |
TE47,51..(GSL,GT)..GEN L=606,OD=65 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TE47,51..(GSL,GT)..GEN OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
TE47,51..(GSL,GT)..GEN |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-12021 |
TE47,51..(GSL,GT)..GEN |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
TE47,51 |
2 | ||
| 04371-22010 |
TE47,51..GEN |
2 | ||
| 04371-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 04371-22010 |
TE47,51..(GSL,GT)..GEN |
3 | ||
| 04371-22010 |
TE51..GEN |
2 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
TE47,51 |
2 | ||
| 04371-22010 |
TE47,51..GEN |
2 | ||
| 04371-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 04371-22010 |
TE47,51..(GSL,GT)..GEN |
3 | ||
| 04371-22010 |
TE51..GEN |
2 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
TE47,51 |
2 | ||
| 04371-22010 |
TE47,51..GEN |
2 | ||
| 04371-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 04371-22010 |
TE47,51..(GSL,GT)..GEN |
3 | ||
| 04371-22010 |
TE51..GEN |
2 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
TE47,51 |
2 | ||
| 04371-22010 |
TE47,51..GEN |
2 | ||
| 04371-10011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
2 | ||
| 04371-22010 |
TE47,51..(GSL,GT)..GEN |
3 | ||
| 04371-22010 |
TE51..GEN |
2 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29070 |
TE47,51 T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29071 |
TE47,51 T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29073 |
TE47,51 T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29070 |
TE51..GEN T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29072 |
TE47,51 T=2.475-2.525,T=2.50 |
8 | ||
| 90521-29072 |
TE51..GEN T=2.475-2.525,T=2.50 |
8 | ||
| 90521-22011 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.2,T=1.20 |
8 | ||
| 90521-22012 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.25,T=1.25 |
8 | ||
| 90521-29070 |
TE3#,47,51..GEN,SA T=2.375-2.425,T=2.40 |
8 | ||
| 90521-29072 |
TE3#,47,51..GEN,SA T=2.475-2.525,T=2.50 |
8 | ||
| 90521-22013 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN T=1.30,T=1.30 |
8 | ||
| 90521-29071 |
TE3#,47,51..GEN,SA T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29071 |
TE51..GEN T=2.425-2.475,T=2.45 |
8 | ||
| 90521-29073 |
TE3#,47,51..GEN,SA T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29073 |
TE51..GEN T=2.525-2.575,T=2.55 |
8 | ||
| 90521-29073 |
TE47,51..(GSL,GT)..GEN T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29072 |
TE47,51..(GSL,GT)..GEN T=2.475-2.525,T=2.50 |
12 | ||
| 90521-29070 |
TE47,51..(GSL,GT)..GEN T=2.375-2.425,T=2.40 |
12 | ||
| 90521-29071 |
TE47,51..(GSL,GT)..GEN T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
TE47,51 |
8 | ||
| 37402-22020 |
TE51..GEN |
8 | ||
| 37402-10020 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
8 | ||
| 37402-22020 |
TE47,51..GEN |
8 | ||
| 37402-22020 |
TE47,51..(GSL,GT)..GEN |
12 | ||
| Common parts | ||||
| 90119-08052 | ||||
| 90119-10053 | ||||
| 90170-08194 | ||||
| 90201-10159 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
