TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)2T#

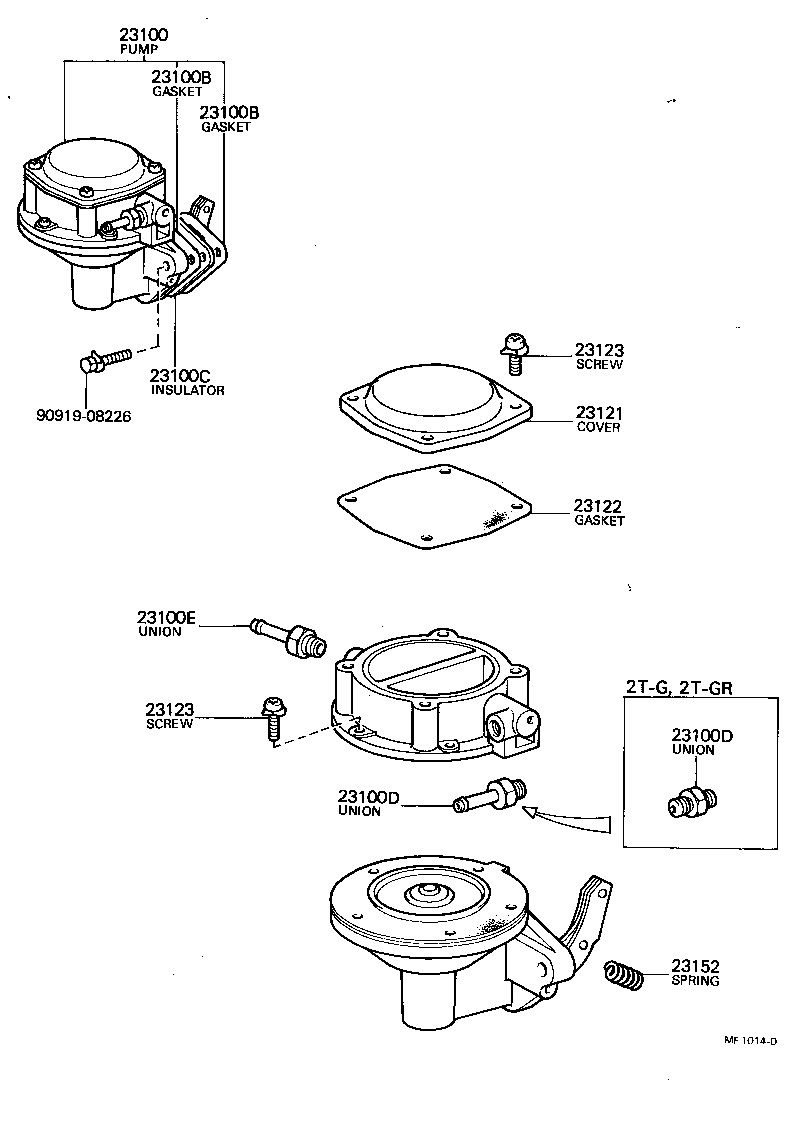

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100D 23100E 23121 23122 23123 23123 23152 9091908226
Part # Description Qty Price
23100B - GASKET, FUEL PUMP
90923-05005

2T#..TE3#,47,51

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T#..TE3#,47,51

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2T#..TE3#,47,51

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-51244

2T#..TE3#,47,51

 1
23121 - COVER, FUEL PUMP
23121-34020

2T#..TE3#,47,51

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

2T#..TE3#,47,51

 1
23123 - SCREW, COVER SET, NO.1
93319-15014

2T,2TB..TE3#,47,51

BODY SET

 6
23123 - SCREW, COVER SET, NO.1
93319-15014

2T,2TB..TE3#,47,51

BODY SET

 6
Common parts
90919-08226
