TE51L-LMQB (1976)
Toyota Corolla/Trueno

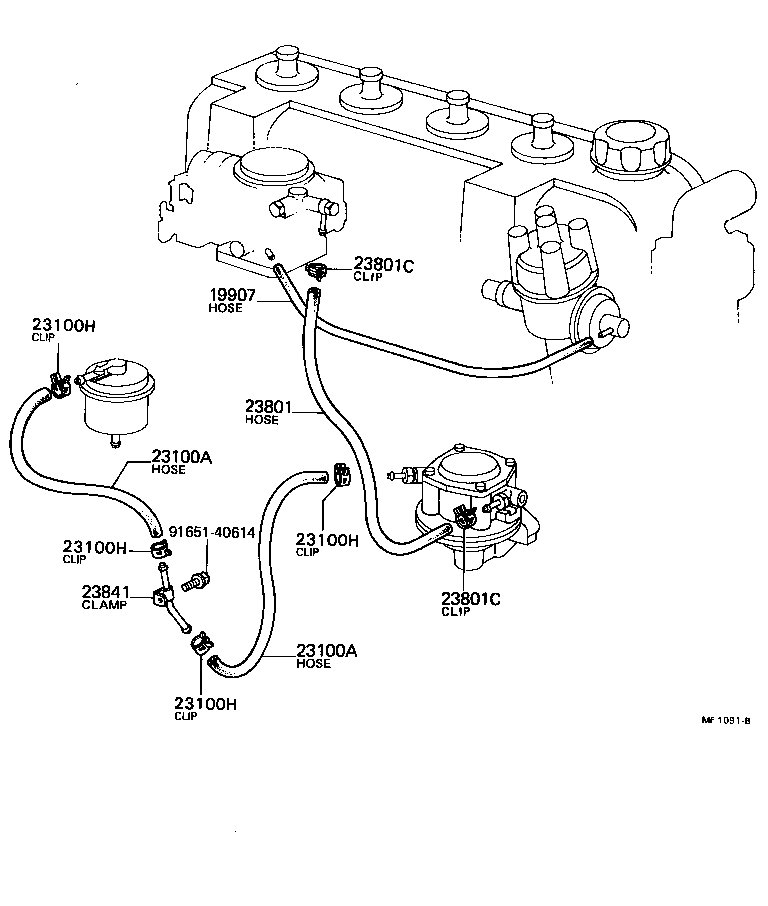

(7408-8004)2T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95331-06019 |
2T,2TB..TE3#,47,51 L=190 |
2 | ||
| 95331-06026 |
2T#..TE3#,47,51 CLAMP TO PUMP,L=260 |
1 | ||
| 95332-06016 |
2T,2TB..TE3#,47,51 L=160 |
2 | ||
| 95332-06020 |
2T,2TB..TE3#,47,51 L=200 |
2 | ||
| 23100A - HOSE, FUEL | ||||
| 95331-06019 |
2T,2TB..TE3#,47,51 L=190 |
2 | ||
| 95331-06026 |
2T#..TE3#,47,51 CLAMP TO PUMP,L=260 |
1 | ||
| 95332-06016 |
2T,2TB..TE3#,47,51 L=160 |
2 | ||
| 95332-06020 |
2T,2TB..TE3#,47,51 L=200 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95331-06026 |
2TB..TE37,47,51 *H,L=260 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB..TE3#,47,51 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB..TE3#,47,51 |
2 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-25020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 23801-25010 |
2T,2TB..TE3#,47,51..MTM |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||

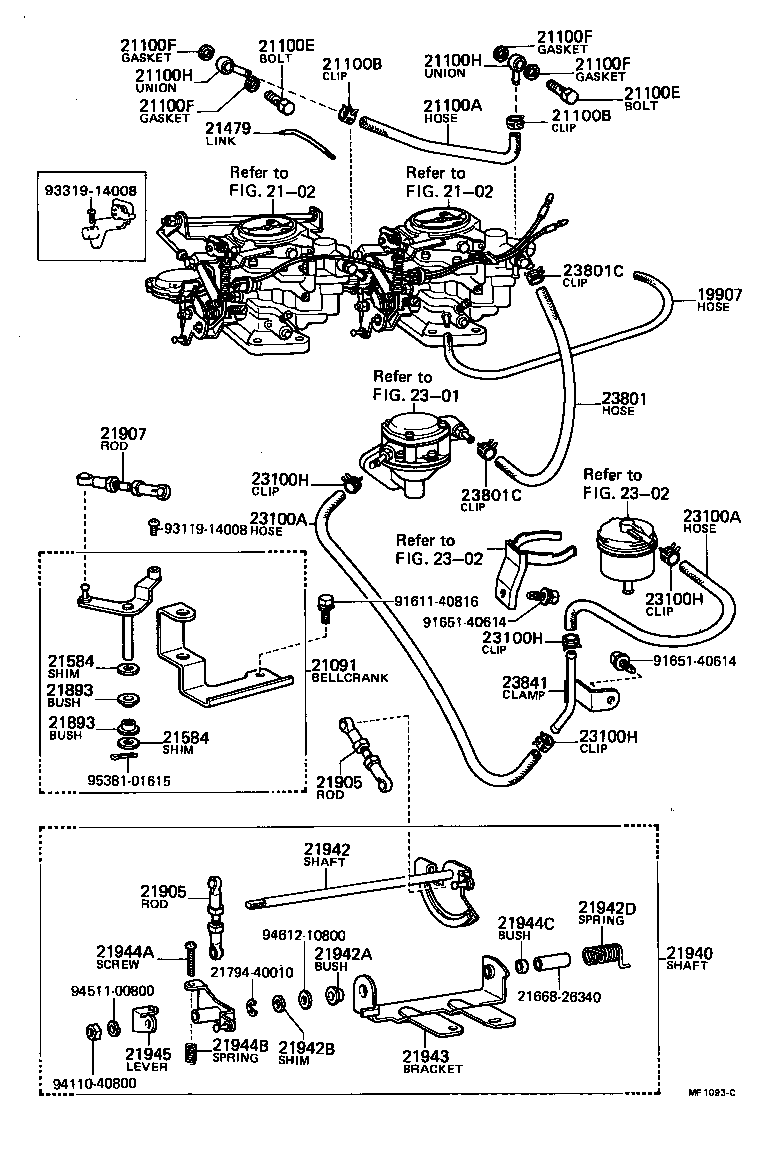

(7408-8004)2TB..TE47,51..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21091 - BELLCRANK SUB-ASSY, ACCELERATOR | ||||
| 21091-26030 |
2TB..TE3#,47,51 |
1 | ||
| 21100A - HOSE(FOR CARBURETOR) | ||||
| 95331-06024 |
2TB..TE37,47,51 L=240 |
1 | ||
| 95331-06024 |
2TB..TE37,47,51 L=240 |
1 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30600 |
2TB..TE3#,47,51 |
2 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30600 |
2TB..TE3#,47,51 |
2 | ||
| 21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION | ||||
| 90401-13013 |
2TB..TE3#,47,51 |
2 | ||
| 21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION | ||||
| 90401-13013 |
2TB..TE3#,47,51 |
2 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-13195 |
2TB..TE3#,47,51 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-13195 |
2TB..TE3#,47,51 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-13195 |
2TB..TE3#,47,51 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 90430-13195 |
2TB..TE3#,47,51 |
4 | ||
| 21100H - UNION(FOR CARBURETOR) | ||||
| 90405-06166 |
2TB..TE3#,47,51 |
2 | ||
| 21100H - UNION(FOR CARBURETOR) | ||||
| 90405-06166 |
2TB..TE3#,47,51 |
2 | ||
| 21479 - LINK, CHOKE LEVER, NO.2 | ||||
| 21477-26040 |
2TB..TE3#,47,51 |
1 | ||
| 21584 - SHIM, CHOKE ROD BELLCRANK SHAFT | ||||
| 21583-41010 |
2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21581-32010 |
2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21581-41010 |
2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21584 - SHIM, CHOKE ROD BELLCRANK SHAFT | ||||
| 21583-41010 |
2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21581-32010 |
2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21581-41010 |
2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21893 - BUSH, CHOKE ROD BELLCRANK SHAFT | ||||
| 21895-41080 |
2TB..TE3#,47,51 |
2 | ||
| 21893 - BUSH, CHOKE ROD BELLCRANK SHAFT | ||||
| 21895-41080 |
2TB..TE3#,47,51 |
2 | ||
| 21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING | ||||
| 21483-26010 |
2TB..TE47,51..LHD |
2 | ||
| 21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING | ||||
| 21483-26010 |
2TB..TE47,51..LHD |
2 | ||
| 21907 - ROD SUB-ASSY, CHOKE CONNECTING | ||||
| 21907-26010 |
2TB..TE3#,47,51 |
1 | ||
| 21940 - SHAFT ASSY, ACCELERATOR LINK | ||||
| 21940-26041 |
2TB..TE47,51..LHD |
1 | ||
| 21940-26040 |
2TB..TE47,51..LHD |
1 | ||
| 21942 - SHAFT, ACCELERATOR LINK | ||||
| 21417-26340 |
2TB..TE47,51..LHD |
1 | ||
| 21417-26341 |
2TB..TE47,51..LHD |
1 | ||
| 21942A - BUSH(FOR ACCELERATOR LINK SHAFT) | ||||
| 21895-41080 |
2TB..TE3#,47,51 |
1 | ||
| 21942B - SHIM, 1ST THROTTLE SHAFT | ||||
| 21582-25010 |
2TB..TE3#,47,51 T=0.1 |
1 | ||
| 21585-25010 |
2TB..TE3#,47,51 T=0.3 |
1 | ||
| 21583-25010 |
2TB..TE3#,47,51 T=0.6 |
1 | ||
| 21581-25010 |
2TB..TE3#,47,51 T=0.2 |
1 | ||
| 21942D - SPRING(FOR ACCELERATOR LINK SHAFT) | ||||
| 21756-26340 |
2TB..TE47,51..LHD |
1 | ||
| 21943 - BRACKET(FOR ACCELERATOR LINK SHAFT) | ||||
| 21893-26340 |
2TB..TE47,51..LHD |
1 | ||
| 21944A - SCREW(FOR ACCELERATOR LINK SHAFT) | ||||
| 21844-33010 |
2TB..TE3#,47,51 |
1 | ||
| 21944B - SPRING(FOR ACCELERATOR LINK SHAFT) | ||||
| 21726-40010 |
2TB..TE3#,47,51 |
1 | ||
| 21944C - BUSH, ACCELERATOR LINK SHAFT LEVER | ||||
| 21895-26030 |
2TB..TE3#,47,51 |
1 | ||
| 21945 - LEVER, ADJUSTING(FOR ACCELERATOR LINK SHAFT) | ||||
| 21462-26340 |
2TB..TE47,51..LHD |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95331-06019 |
2T,2TB..TE3#,47,51 L=190 |
2 | ||
| 95331-06026 |
2T#..TE3#,47,51 CLAMP TO PUMP,L=260 |
1 | ||
| 95332-06016 |
2T,2TB..TE3#,47,51 L=160 |
2 | ||
| 95332-06020 |
2T,2TB..TE3#,47,51 L=200 |
2 | ||
| 23100A - HOSE, FUEL | ||||
| 95331-06019 |
2T,2TB..TE3#,47,51 L=190 |
2 | ||
| 95331-06026 |
2T#..TE3#,47,51 CLAMP TO PUMP,L=260 |
1 | ||
| 95332-06016 |
2T,2TB..TE3#,47,51 L=160 |
2 | ||
| 95332-06020 |
2T,2TB..TE3#,47,51 L=200 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TE3#,47,51 |
4 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95331-06026 |
2TB..TE37,47,51 *H,L=260 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB..TE3#,47,51 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T,2TB..TE3#,47,51 |
2 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-25020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 23801-25010 |
2T,2TB..TE3#,47,51..MTM |
1 | ||
| Common parts | ||||
| 21668-26340 | ||||
| 21794-40010 | ||||
| 91611-40816 | ||||
| 91651-40614 | ||||
| 93119-14008 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 95381-01615 | ||||
| Linked diagrams | ||||
| 2102 | ||||
| 2301 | ||||
| 2302 | ||||
