TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2T#

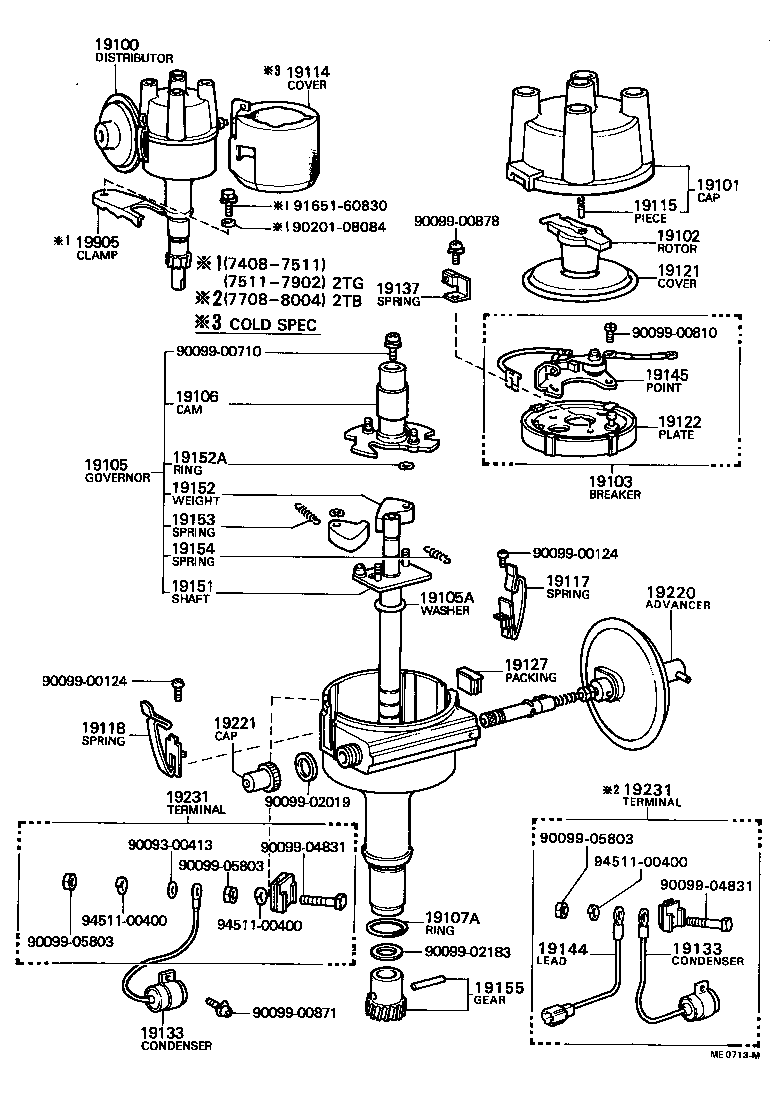

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19105A 19106 19107A 19114 19115 19117 19118 19121 19122 19127 19133 19133 19137 19144 19145 19151 19152 19152A 19153 19154 19155 19220 19221 19231 19231 19905 9009300413 9009900124 9009900124 9009900710 9009900810 9009900871 9009900878 9009902019 9009902183 9009904831 9009904831 9009905803 9009905803 9009905803 9020108084 9165160830 9451100400 9451100400 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-26162

2TB..TE3#,47,51

 1
19100-26210

2T..TE31,47,51

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

2T#..TE47,51

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-33013

2T#..TE3#,47,51

 1
19105 - GOVERNOR SUB-ASSY
19105-26022

2TB..TE37,47,51

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01412

2T#..TE47,51

T=2.3,T=2.3

 1
90099-01386

2T#..TE47,51

T=2.7,T=2.7

 1
90099-01385

2T#..TE47,51

T=2.5,T=2.5

 1
90099-01387

2T#..TE47,51

T=2.9,T=2.9

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-38011

2TB..TE37,47,51

 1
19106-26022

2TB..TE37,47,51

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2T#..TE47,51

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-25011

2T,2TB..TE3#,47,51

COLD SPEC

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2T#..TE3#,47,51

 1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-33011

2T#..TE3#,47,51

 1
19118 - SPRING, DISTRIBUTOR CAP, B
19118-33011

2T#..TE3#,47,51

 1
19121 - COVER, DUST PROOF
19121-33011

2T#..TE3#,47,51

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-33013

2T#..TE3#,47,51

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-34180

2TB..TE3#,47,51

 1
19145 - POINT, DISTRIBUTOR
19145-26060

2T#..TE47,51

 1
19151 - SHAFT, GOVERNOR
19151-25011

2T#..TE3#,47,51

 1
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

2TB..TE3#,47,51

 2
90099-07011

2T..TE31,47,51

 2
90099-07011

2T#..TE3#,47,51

 2
19153 - SPRING, GOVERNOR, A
19153-26022

2TB..TE37,47,51

 1
19153-25070

2T..TE31,47,51

 1
19154 - SPRING, GOVERNOR, B
19154-26022

2TB..TE37,47,51

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-25011

2T,2TB..TE3#,47,51

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-26021

2TB..TE3#,47,51

 1
19220-26190

2T..TE31,47,51

 1
19221 - CAP, ADJUSTER, DISTRIBUTOR
19221-30030

2T#..TE47,51

 1
19231 - TERMINAL, DISTRIBUTOR
19231-25060

2T..TE31,47,51

 1
19132-36020

2TB..TE3#,47,51

 1
19231 - TERMINAL, DISTRIBUTOR
19231-25060

2T..TE31,47,51

 1
19132-36020

2TB..TE3#,47,51

 1
Common parts
90093-00413
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-02019
90099-02183
90099-04831
90099-05803
90201-08084
91651-60830
94511-00400
