TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

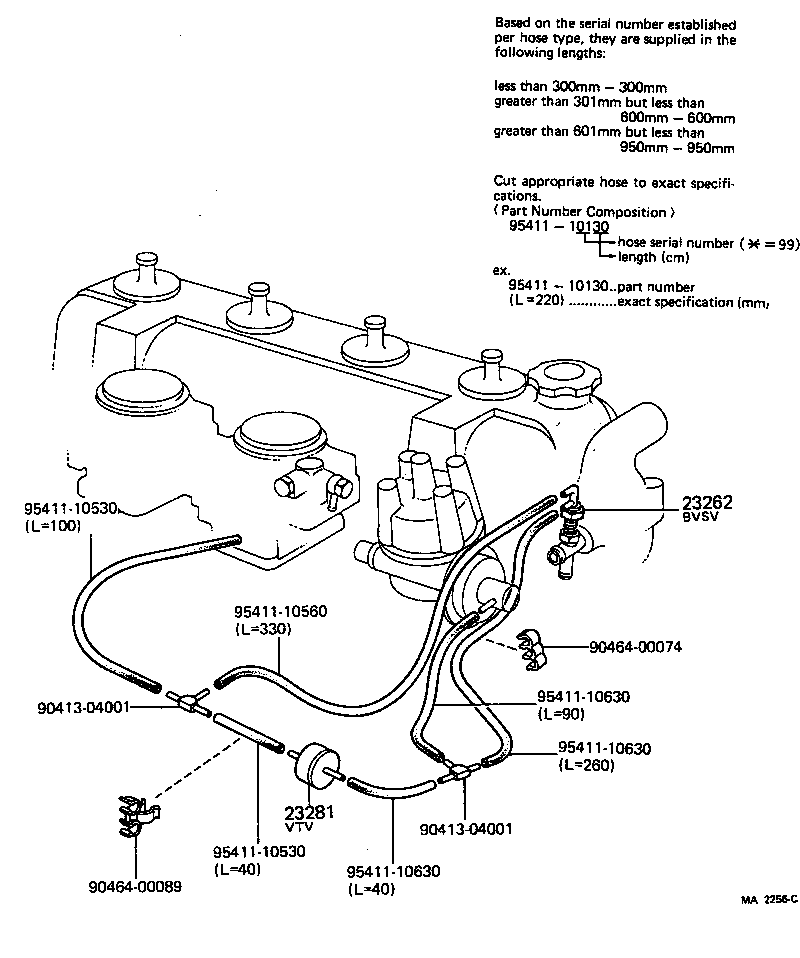

(7603-7908)2TB..TE47,51

Click highlighted areas on diagram

diagram 23262 23281 9041304001 9041304001 9046400074 9046400089 9541110130 9541110130 9541110530 9541110530 9541110560 9541110630 9541110630 9541110630
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05010

2T..TE47,51

 1
90925-05007

2TB..TE47,51

 1
90925-05044

2TB..TE47,51

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01018

2TB..TE47,51

 1
90925-01021

2TB..TE51

 1
Common parts
90413-04001
90464-00074
90464-00089
95411-10130
95411-10530
95411-10560
95411-10630

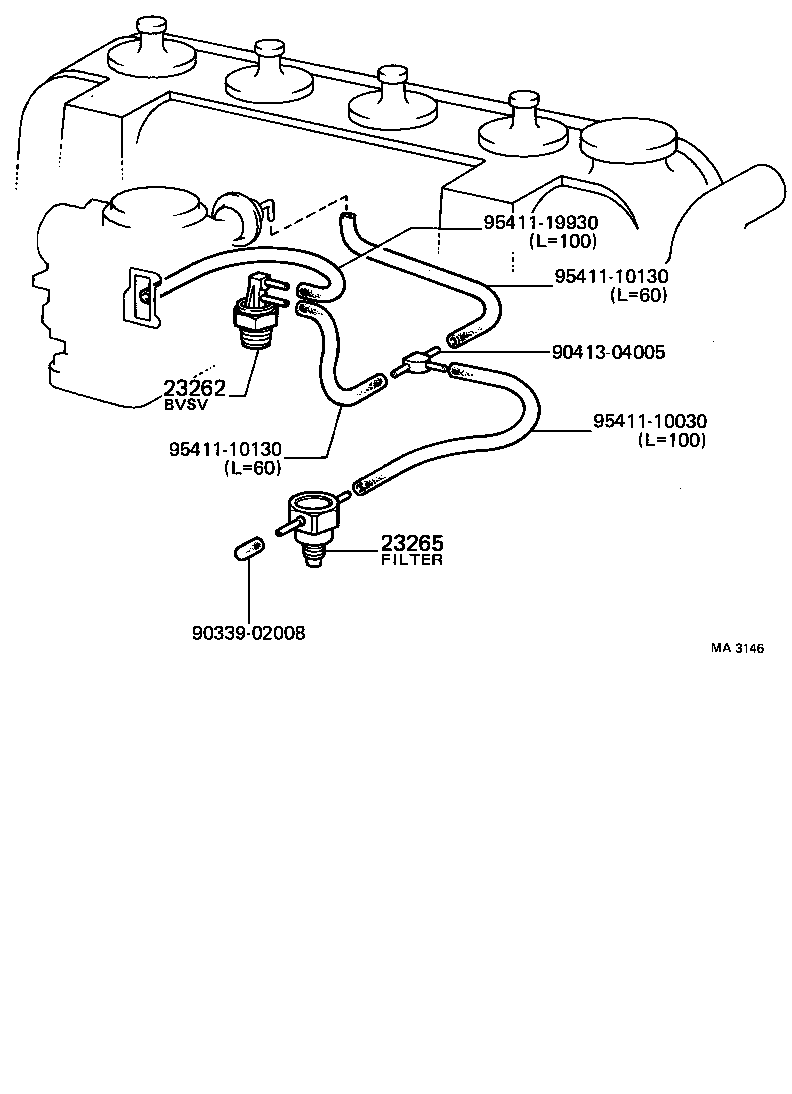

(7710-7908)2T..TE47,51

Click highlighted areas on diagram

diagram 23262 23265 9033902008 9041304005 9541110030 9541110130 9541110130 9541119930
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05010

2T..TE47,51

 1
90925-05007

2TB..TE47,51

 1
90925-05044

2TB..TE47,51

 1
23265 - FILTER, GAS, NO.1
90917-11015

2T..TE47,51

 1
Common parts
90339-02008
90413-04005
95411-10030
95411-10130
95411-19930
