TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7603-7805)2TB..TE51

Click highlighted areas on diagram

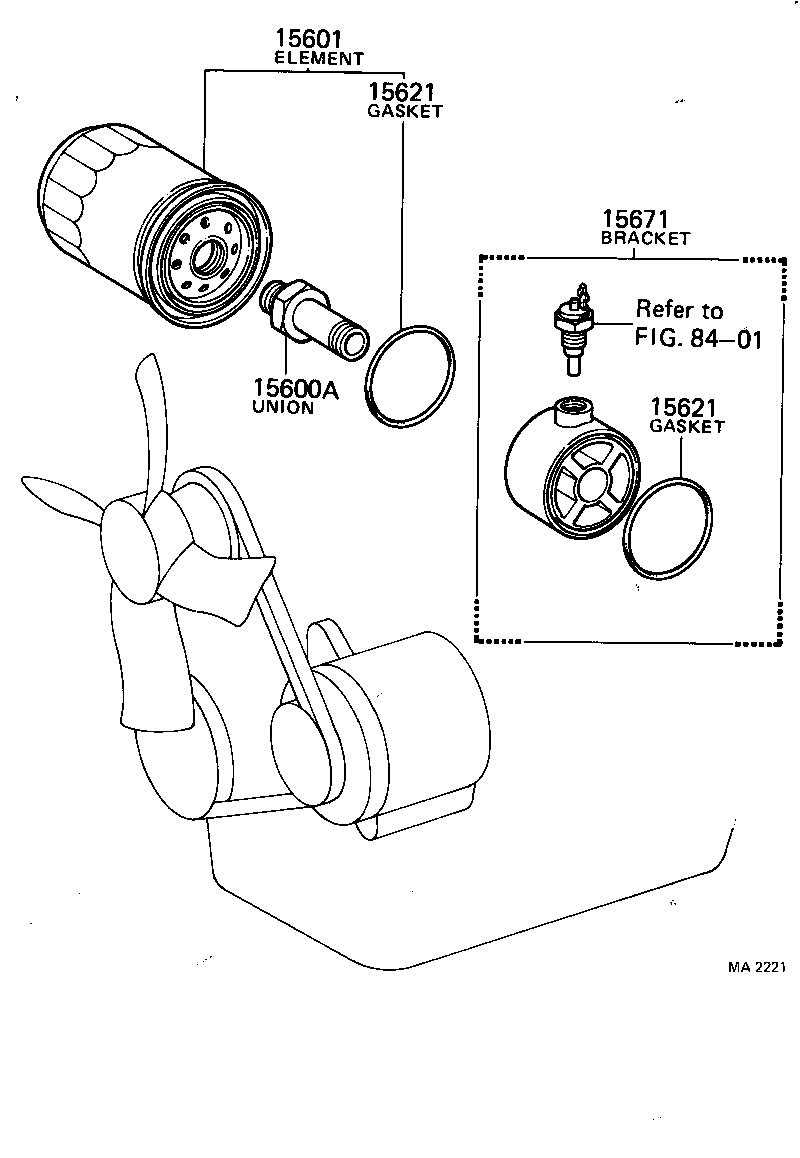

diagram 15600A 15601 15621 15621 15671 8401
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19268

2TB..TE51

W/OIL PRESSURE SWITCH

 1
90404-20173

2T#..TE3#,47,51

 1
15601 - FILTER SUB-ASSY, OIL
15600-25010

2T#..TE3#,47,51

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2T#..TE3#,47,51

 2
15621 - GASKET, OIL FILTER BODY
15621-41010

2T#..TE3#,47,51

 2
15671 - BRACKET, OIL FILTER
15670-26010

2TB..TE51

 1
Linked diagrams
8401
