TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)2T,2TB

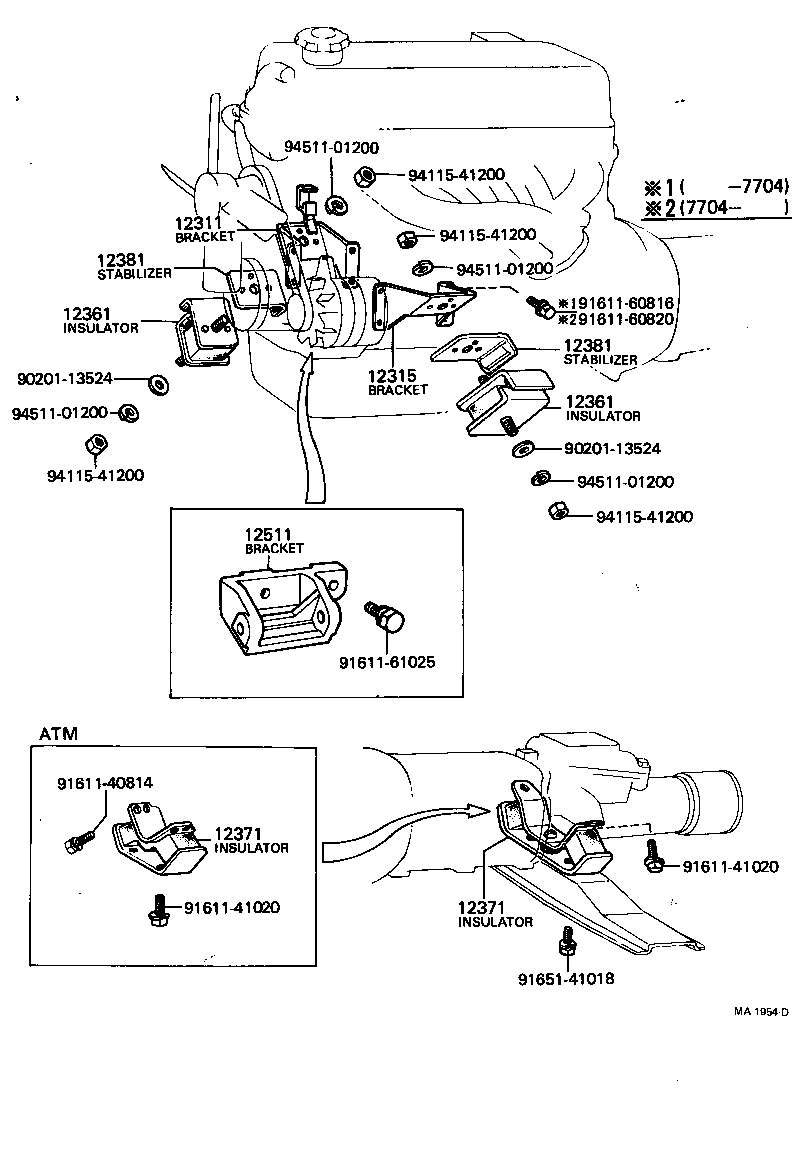

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 9020113524 9020113524 9161140814 9161141020 9161141020 9161160816 9161160820 9161161025 9165141018 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25011

2T..TE3#,47,51

 1
12311-26010

2TB..TE37,47,51

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-25011

2T#..TE3#,47,51

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-25012

2T#..TE3#,47,51

 2
12361-25013

2T#..TE3#,47,51

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-25012

2T#..TE3#,47,51

 2
12361-25013

2T#..TE3#,47,51

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2T#..TE3#,47,51..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2T#..TE3#,47,51..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2T#..TE3#,47,51

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2T#..TE3#,47,51

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

2T#..TE3#,47,51

 1
Common parts
90201-13524
91611-40814
91611-41020
91611-60816
91611-60820
91611-61025
91651-41018
94115-41200
94511-01200
