TE51L-LMQB (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)2T,2TB

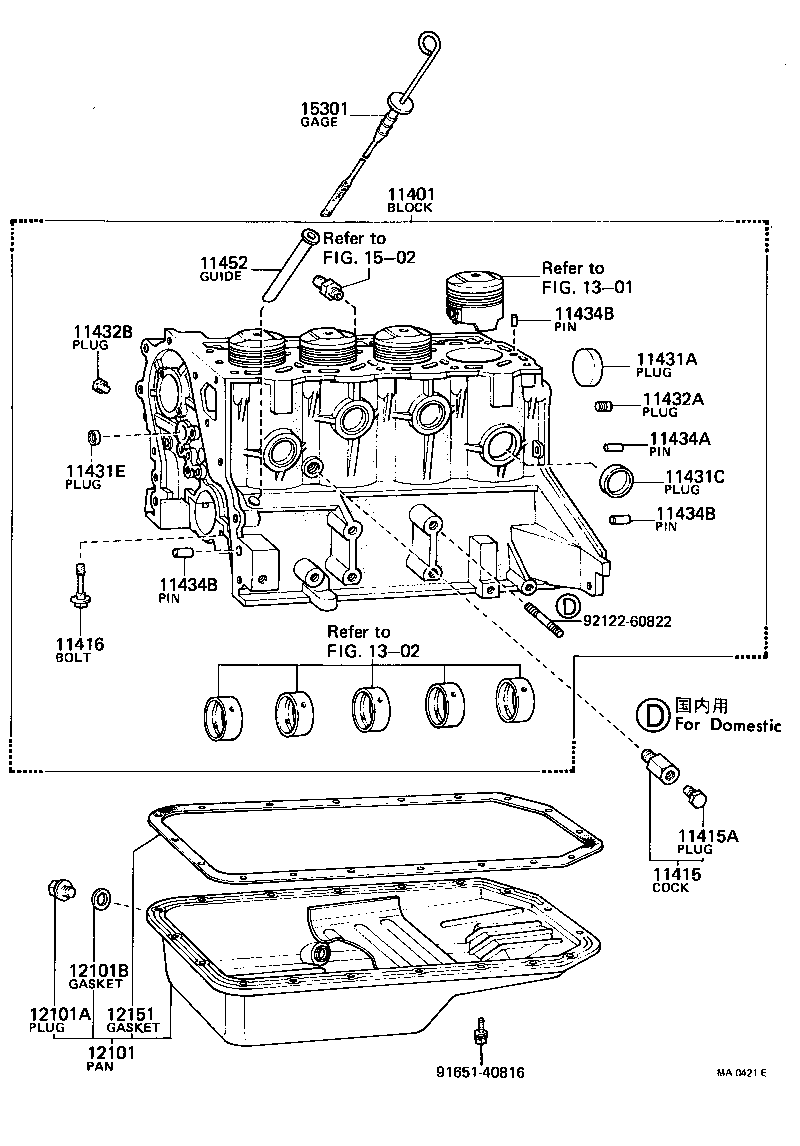

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431C 11431E 11432A 11432B 11434A 11434B 11434B 11434B 11452 12101 12101A 12101B 12151 1301 1302 1502 15301 9165140816 9212260822
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29116

2T..TE47,51

 1
11401-29216

2T..TE47,51

 1
11401-29215

2T..TE47,51

 1
11401-29206

2TB..TE3#,47,51

 1
11401-29205

2TB..TE37,47,51

 1
11401-29145

2TB..TE37,47,51

 1
11401-29216

2T..TE31,47,51

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

2T#..TE3#,47,51

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

2T#..TE3#,47,51

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

2T#..TE3#,47,51

*12-1.25PX62-21

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

2T#..TE3#,47,51

OD=50

 2
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-01800

2T#..TE3#,47,51

OD=18

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

2T#..TE3#,47,51

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51005

2T,2TB..TE3#,47,51

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10113

2T#..TE3#,47,51

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2T#..TE3#,47,51

L=18,OD=8,L=18,OD=8

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2T#..TE3#,47,51

L=18,OD=8,L=18,OD=8

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2T#..TE3#,47,51

L=18,OD=8,L=18,OD=8

 6
11452 - GUIDE, OIL LEVEL GAGE
11452-40010

2T#..TE3#,47,51

 1
12101 - PAN SUB-ASSY, OIL
12101-29055

2T#..TE3#,47,51

 1
12101-29075

2T#..TE47,51

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2T#..TE3#,47,51

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

2T#..TE3#,47,51

 1
12151 - GASKET, OIL PAN
12151-25010

2T#..TE3#,47,51

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-25011

2T,2TB..TE3#,47,51

 1
15301-25011

2T#..TE3#,47,51

 1
15301-28010

2T,2TB..TE3#,47,51

 1
15301-28011

2T,2TB..TE3#,47,51

 1
Common parts
91651-40816
92122-60822
Linked diagrams
1301
1302
1502
