TE51L-LKDW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)2T#

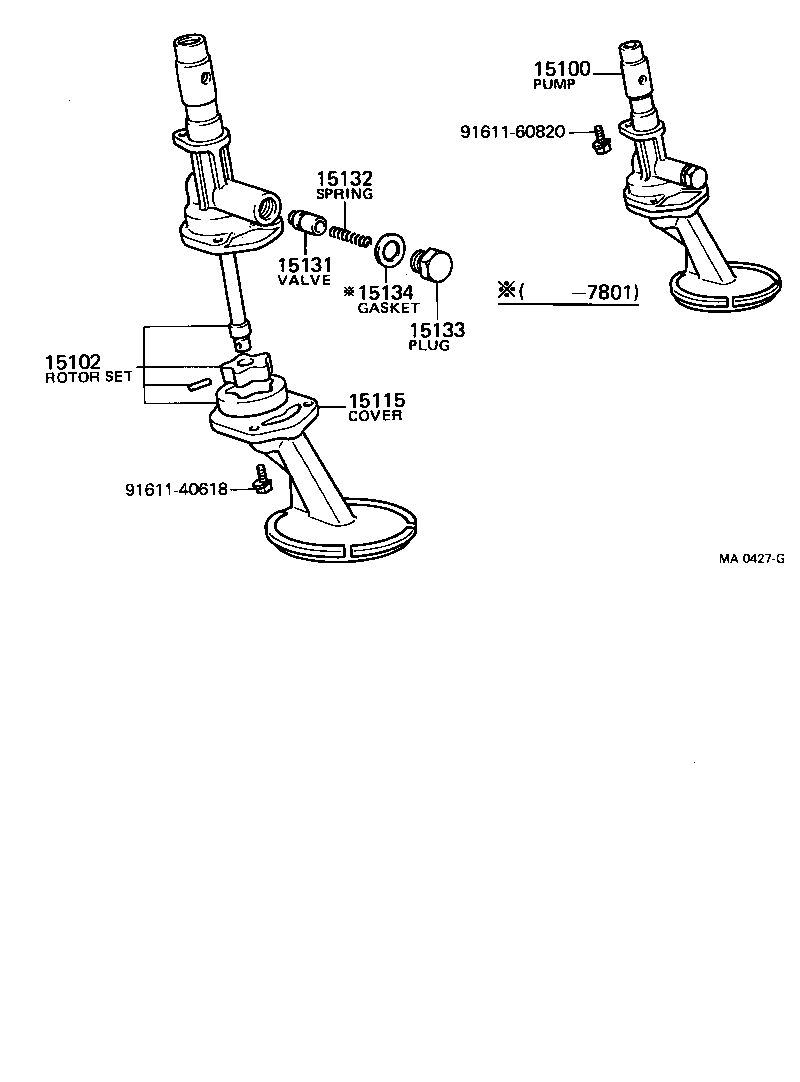

Click highlighted areas on diagram

diagram 15100 15102 15115 15131 15132 15133 15134 9161140618 9161160820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-25020

2T,2TB..TE3#,47,51

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

2T#..TE3#,47,51

 1
15115 - COVER, OIL PUMP
15012-25020

2T,2TB..TE3#,47,51

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

2T#..TE3#,47,51

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2T#..TE3#,47,51

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

2T#..TE3#,47,51

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

2T#..TE3#,47,51

 1
Common parts
91611-40618
91611-60820
