TE51L-LKD (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8004)2T,2TB

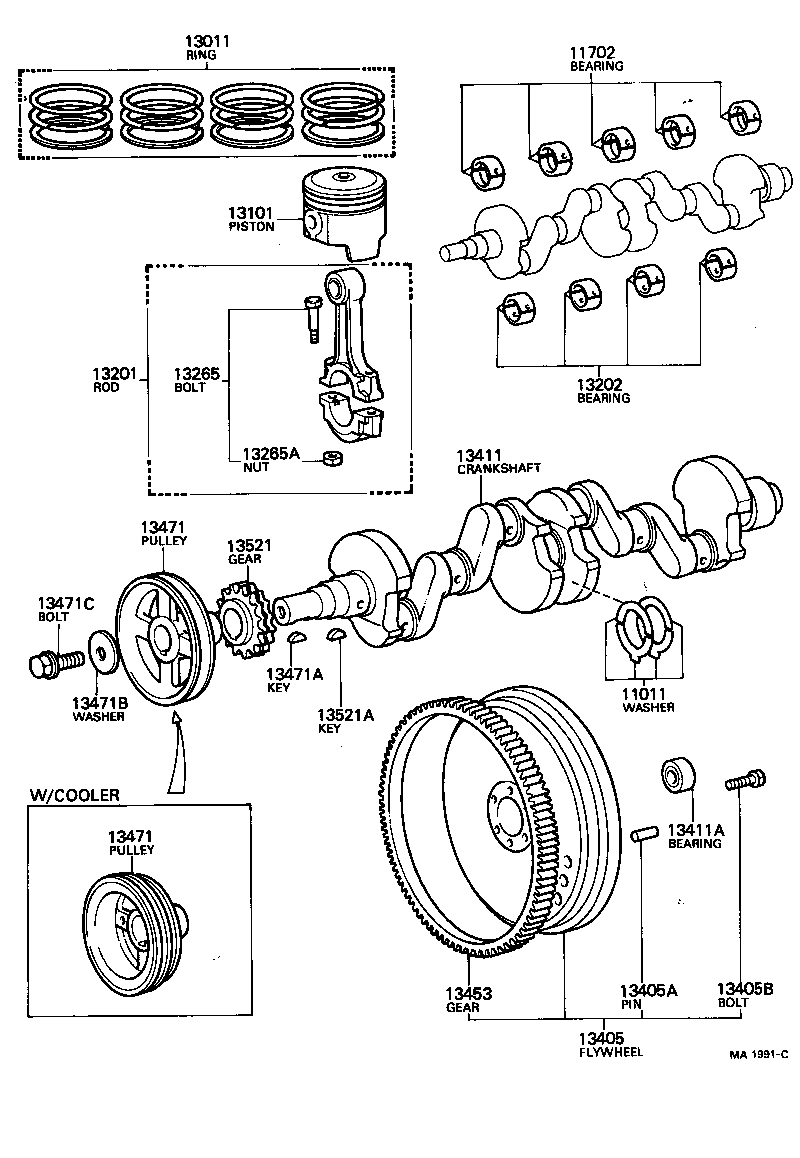

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-25010

2T#..TE3#,47,51

O/S 0.125

 1
11011-25010

2T#..TE3#,47,51

STD,STD

 1
11013-25010

2T#..TE3#,47,51

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11702-25013

2T,2TB..TE3#,47,51

STD

 1
11704-25013

2T,2TB..TE3#,47,51

U/S 0.25

 1
11705-25013

2T,2TB..TE3#,47,51

U/S 0.50

 1
11703-25013

2T,2TB..TE3#,47,51

U/S 0.05

 1
13011 - RING SET, PISTON
13015-28011

2T,2TB..TE47,51

O/S 1.00

 1
13014-28011

2T,2TB..TE47,51

O/S 0.75

 1
13013-28011

2T,2TB..TE47,51

O/S 0.50

 1
13011-28011

2T,2TB..TE47,51

STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-26031

2T..TE31,47,51

STD

 4
13103-26031

2T..TE31,47,51

O/S 0.50

 4
13104-26031

2T..TE31,47,51

O/S 0.75

 4
13105-26031

2T..TE31,47,51

O/S 1.00

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

2T#..TE3#,47,51

 4
13202 - BEARING SET, CONNECTING ROD
13203-25010

2T#..TE3#,47,51

U/S 0.05

 1
13202-25010

2T#..TE3#,47,51

STD

 1
13206-25010

2T,2TB..TE3#,47,51

U/S 0.75

 1
13205-25010

2T#..TE3#,47,51

U/S 0.50

 1
13204-25010

2T#..TE3#,47,51

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

2T#..TE3#,47,51

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2T#..TE3#,47,51

 8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2T#..TE3#,47,51..MTM

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2T,2TB..TE3#,47,51..MTM

 6
13411 - CRANKSHAFT
13411-25010

2T,2TB..TE3#,47,51

 1
13411-25011

2T,2TB..TE3#,47,51

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97123-06001

2T#..TE3#,47,51..MTM

6001 ZZ C3

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2T#..TE3#,47,51..MTM

N=115

 1
13471 - PULLEY, CRANKSHAFT
13471-25021

2T,2TB..TE47,51

W/COOLER

 1
13471-25021

2T#..TE47,51

W/COOLER

 1
13471-25010

2T#..TE3#,47,51

 1
13471 - PULLEY, CRANKSHAFT
13471-25021

2T,2TB..TE47,51

W/COOLER

 1
13471-25021

2T#..TE47,51

W/COOLER

 1
13471-25010

2T#..TE3#,47,51

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2T#..TE3#,47,51

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

2T#..TE3#,47,51

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12001

2T#..TE47,51

W/COOLER

 1
90105-12001

2T,2TB..TE47,51

W/COOLER

 1
90105-12050

2T,2TB..TE3#,47,51

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2T#..TE3#,47,51

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2T#..TE3#,47,51

 1
