TE51L-LHD (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7603-7908)LB

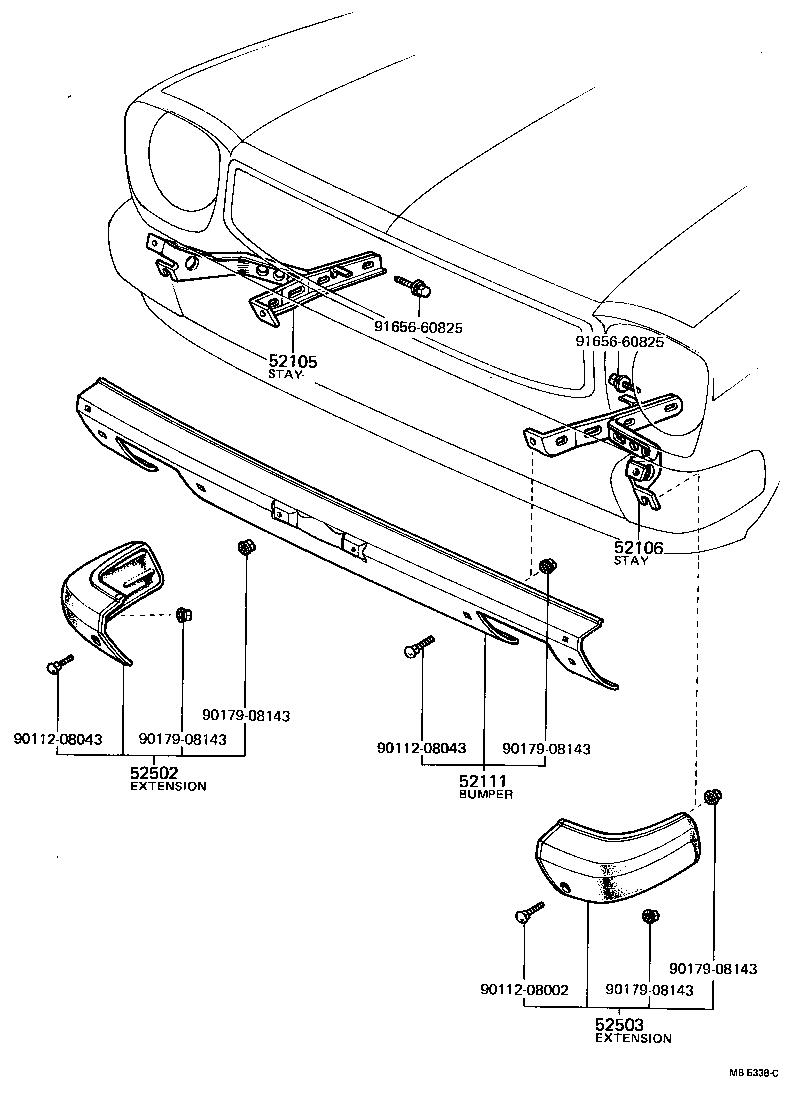

Click highlighted areas on diagram

diagram 52105 52106 52111 52502 52503 9011208002 9011208043 9011208043 9017908143 9017908143 9017908143 9017908143 9017908143 9165660825 9165660825
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-12040

KE5#,TE51..LB

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-12040

KE5#,TE51..LB

 1
52111 - BUMPER ASSY, FRONT
52111-19255

KE5#,TE51..LB..(ARL,GEN)

 1
52111-19255

KE50,TE51

 1
52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52401-19065

KE5#,TE51..LB

 1
52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52402-19055

KE5#,TE51..LB

 1
Common parts
90112-08002
90112-08043
90179-08143
91656-60825

(7805-7908)KE30..GEN ; (7807-7908)LHD..K40..SR ;(7807-7908)KE35..RHD..K40..DLX ; (

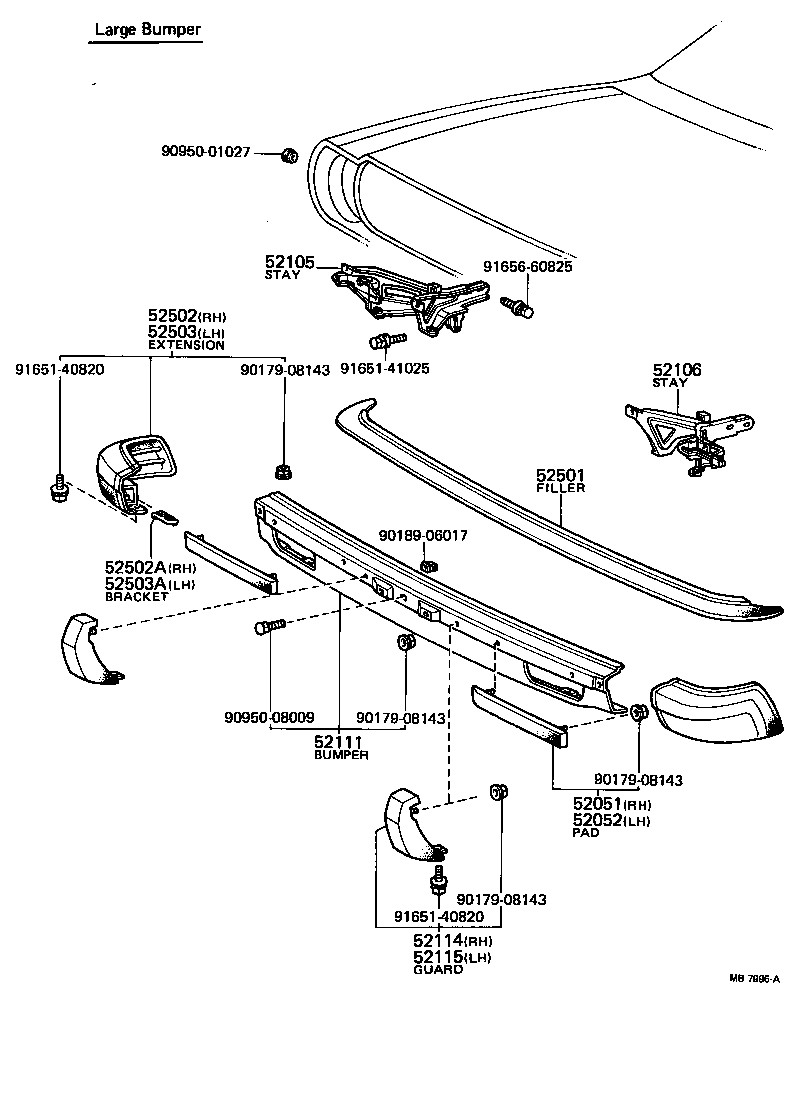

Click highlighted areas on diagram

diagram 52051 52052 52105 52106 52111 52114 52115 52501 52502 52502A 52503 52503A 9017908143 9017908143 9017908143 9017908143 9018906017 9095001027 9095008009 9165140820 9165140820 9165141025 9165660825
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-12040

KE5#,TE51..LB

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-12040

KE5#,TE51..LB

 1
52111 - BUMPER ASSY, FRONT
52111-19255

KE5#,TE51..LB..(ARL,GEN)

 1
52111-19255

KE50,TE51

 1
52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52401-19065

KE5#,TE51..LB

 1
52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52402-19055

KE5#,TE51..LB

 1
Common parts
90179-08143
90189-06017
90950-01027
90950-08009
91651-40820
91651-41025
91656-60825
