TE47R-MZB (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7902)TE47

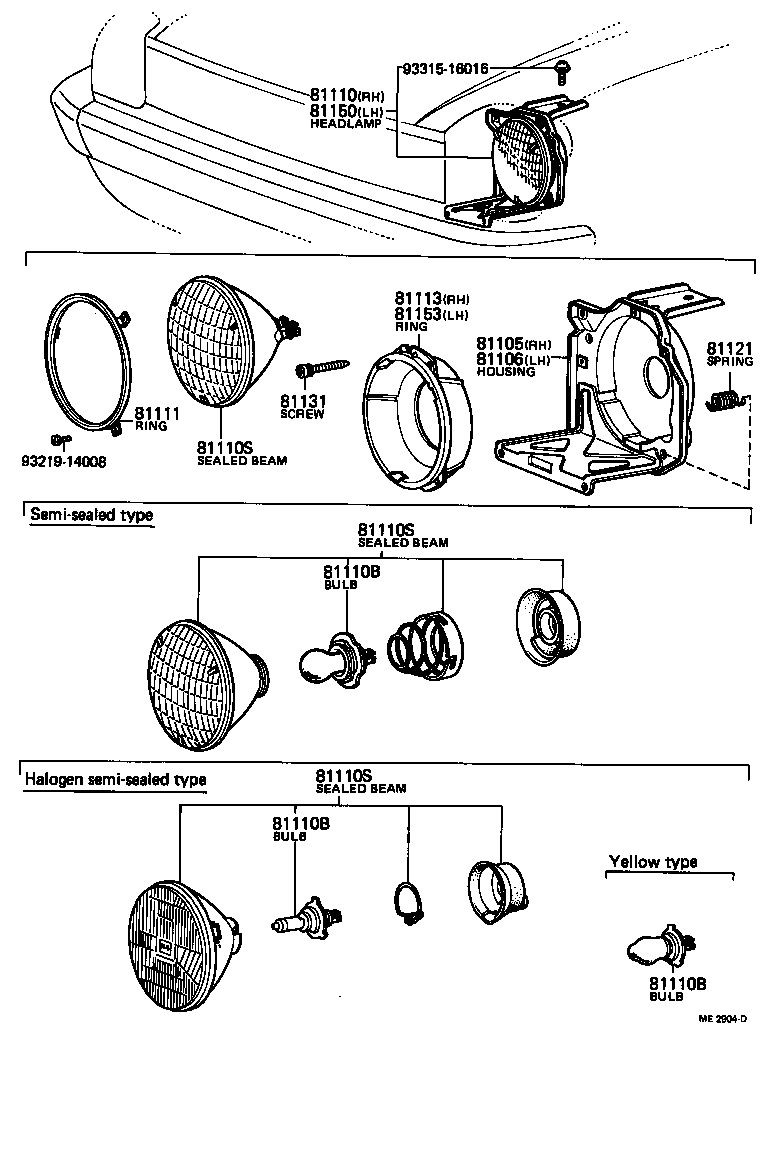

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-12220 |
TE47 |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-12160 |
TE47 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-19415 |
TE47..RHD KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01015 |
KE3#,5#,TE3#,47,51..RHD 12V 50/40W,KOITO |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01015 |
KE3#,5#,TE3#,47,51..RHD 12V 50/40W,KOITO |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01015 |
KE3#,5#,TE3#,47,51..RHD 12V 50/40W,KOITO |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-10120 |
KE3#,50,TE3#,47,51 KOITO |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81114-12220 |
TE47 |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-62010 |
KE50,TE47,51 KOITO |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-10031 |
KE50,TE47,51 |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-19365 |
TE47..RHD KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81154-12160 |
TE47 KOITO |
1 | ||
| Common parts | ||||
| 93219-14008 | ||||
| 93315-16016 | ||||
