TE47R-MQZG (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2TG
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)TE47

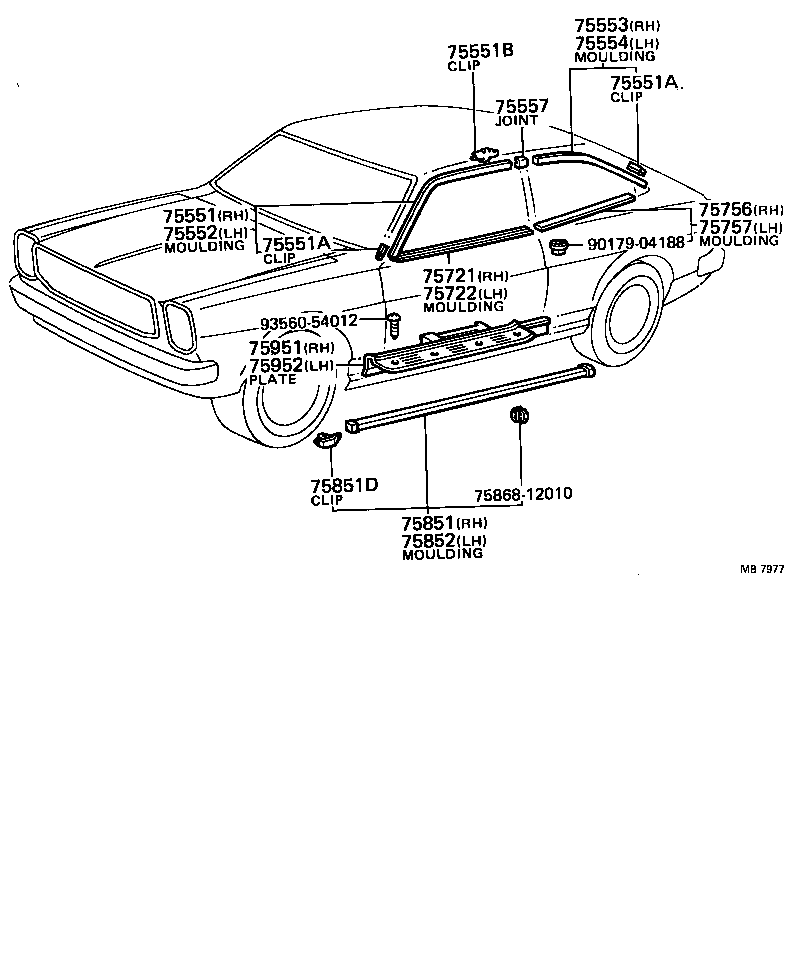

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-19065 |
KE50,TE47,51 |
1 | ||
| 75551A - CLIP, ROOF DRIP MOULDING, NO.1 | ||||
| 75561-12010 |
KE30,35,50,TE3#,47,51 FR RH,RR LH |
2 | ||
| 75562-12010 |
KE30,35,50,TE3#,47,51 FR LH,RR RH |
2 | ||
| 75551A - CLIP, ROOF DRIP MOULDING, NO.1 | ||||
| 75561-12010 |
KE30,35,50,TE3#,47,51 FR RH,RR LH |
2 | ||
| 75562-12010 |
KE30,35,50,TE3#,47,51 FR LH,RR RH |
2 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-19065 |
KE50,TE47,51 |
1 | ||
| 75553 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75553-19045 |
TE47 |
1 | ||
| 75554 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75554-19045 |
TE47 |
1 | ||
| 75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75557-12040 |
KE3#,50,TE3#,47,51 |
2 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-12070 |
TE47 |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-12070 |
TE47 |
1 | ||
| 75756 - MOULDING, QUARTER BELT, RH | ||||
| 75660-19065 |
TE47 |
1 | ||
| 75757 - MOULDING, QUARTER BELT, LH | ||||
| 75670-19065 |
TE47 |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-12040 |
TE47 |
1 | ||
| 67913-1204001 |
KE50,TE47,51 BLACK,BLACK,TRIM0#,2# |
1 | ||
| 67913-1204006 |
KE50,TE47,51 BROWN,BROWN,TRIM0#,4# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67914-12040 |
TE47 |
1 | ||
| 67914-1204001 |
KE50,TE47,51 BLACK,BLACK,TRIM0#,2# |
1 | ||
| 67914-1204006 |
KE50,TE47,51 BROWN,BROWN,TRIM0#,4# |
1 | ||
| Common parts | ||||
| 75868-12010 | ||||
| 90179-04188 | ||||
| 93560-54012 | ||||
