TE47R-MQZG (1974)
Toyota Corolla/Trueno
(7408-8004)2T,2TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271 - COVER, CYLINDER BLOCK SIDE | ||||
| 11271-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-88250 |
2TG..TE47 |
1 | ||
| 12204-34010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18180 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
2T#..TE3#,47,51 |
1 | ||
| 12255-25010 |
2TG..TE47 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90072-44552 |
2TG..TE47 |
1 | ||
| 12261-25011 |
2T..TE3#,47,51 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
2T,2TB..TE3#,47 |
1 | ||
| 90467-14044 |
2TG..TE47 |
1 | ||
| 90467-16010 |
2TG..TE47 ID=16 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
2T,2TB..TE3#,47 |
1 | ||
| 90467-14044 |
2TG..TE47 |
1 | ||
| 90467-16010 |
2TG..TE47 ID=16 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12261-88220 |
2TG..TE47 |
1 | ||
| 12262-25010 |
2T..TE3#,47,51 |
1 | ||
| 12261-88210 |
2TG..TE47 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21026 |
2TG..TE47 |
2 | ||
| 90467-20020 |
2T,2TB..TE3#,47 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21026 |
2TG..TE47 |
2 | ||
| 90467-20020 |
2T,2TB..TE3#,47 |
2 | ||
| Common parts | ||||
| 91611-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||

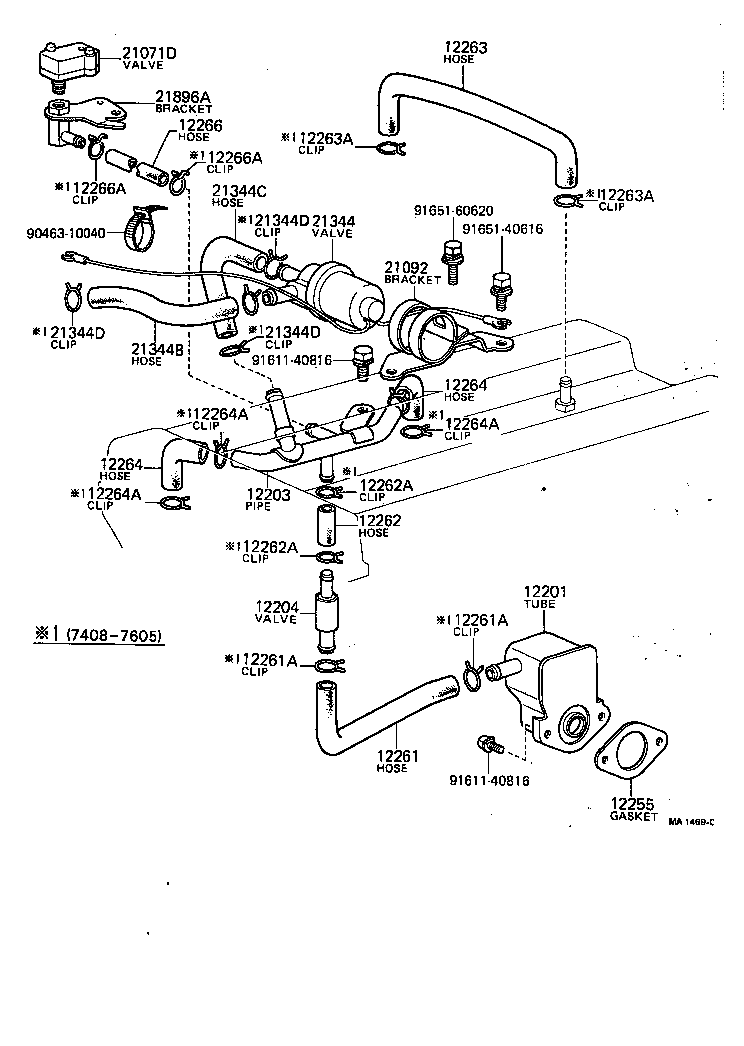

(7408-7902)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12201 - TUBE SUB-ASSY, VENTILATION | ||||
| 12201-25010 |
2TG..TE47 |
1 | ||
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-88225 |
2TG..TE47 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-88250 |
2TG..TE47 |
1 | ||
| 12204-34010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
2T#..TE3#,47,51 |
1 | ||
| 12255-25010 |
2TG..TE47 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12262-88220 |
2TG..TE47 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-17042 |
2TG..TE47 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-17042 |
2TG..TE47 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90072-44552 |
2TG..TE47 |
1 | ||
| 12261-25011 |
2T..TE3#,47,51 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
2T,2TB..TE3#,47 |
1 | ||
| 90467-14044 |
2TG..TE47 |
1 | ||
| 90467-16010 |
2TG..TE47 ID=16 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
2T,2TB..TE3#,47 |
1 | ||
| 90467-14044 |
2TG..TE47 |
1 | ||
| 90467-16010 |
2TG..TE47 ID=16 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12261-88220 |
2TG..TE47 |
1 | ||
| 12262-25010 |
2T..TE3#,47,51 |
1 | ||
| 12261-88210 |
2TG..TE47 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21026 |
2TG..TE47 |
2 | ||
| 90467-20020 |
2T,2TB..TE3#,47 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21026 |
2TG..TE47 |
2 | ||
| 90467-20020 |
2T,2TB..TE3#,47 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-88220 |
2TG..TE47 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-88220 |
2TG..TE47 |
2 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-20020 |
2TG..TE47 |
4 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-20020 |
2TG..TE47 |
4 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-20020 |
2TG..TE47 |
4 | ||
| 12266 - HOSE, VENTILATION PIPE TO THERMOSTATIC VALVE | ||||
| 90072-44554 |
2TG..TE47 |
1 | ||
| 12266A - CLIP, VENTILATION PIPE TO THERMOSTATIC VALVE HOSE | ||||
| 90467-08036 |
2TG..TE47 |
2 | ||
| 12266A - CLIP, VENTILATION PIPE TO THERMOSTATIC VALVE HOSE | ||||
| 90467-08036 |
2TG..TE47 |
2 | ||
| 21071D - VALVE SUB-ASSY, THERMOSTATIC(FOR VENTILATION HOSE) | ||||
| 21071-41010 |
2TG..TE47 |
1 | ||
| 21092 - BRACKET SUB-ASSY, THROTTLE SOLENOID VALVE | ||||
| 21092-88232 |
2TG..TE47 |
1 | ||
| 21344 - VALVE, THROTTLE SOLENOID | ||||
| 21344-88250 |
2TG..TE47 |
1 | ||
| 21344-41010 |
2TG..TE47 |
1 | ||
| 21344B - HOSE, NO.1(SOLENOID VALVE TO 3 WAY) | ||||
| 17921-88220 |
2TG..TE47 |
1 | ||
| 21344C - HOSE, NO.2(SOLENOID VALVE TO VENTILATION PIPE) | ||||
| 17922-88220 |
2TG..TE47 |
1 | ||
| 21344D - CLIP, HOSE | ||||
| 90467-21026 |
2TG..TE47 |
4 | ||
| 21344D - CLIP, HOSE | ||||
| 90467-21026 |
2TG..TE47 |
4 | ||
| 21344D - CLIP, HOSE | ||||
| 90467-21026 |
2TG..TE47 |
4 | ||
| 21896A - BRACKET, THERMOSTATIC VALVE(FOR VENTILATION HOSE) | ||||
| 21896-88220 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 90463-10040 | ||||
| 91611-40816 | ||||
| 91651-40616 | ||||
| 91651-60620 | ||||
