TE47R-MQZG (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Feb 1979
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

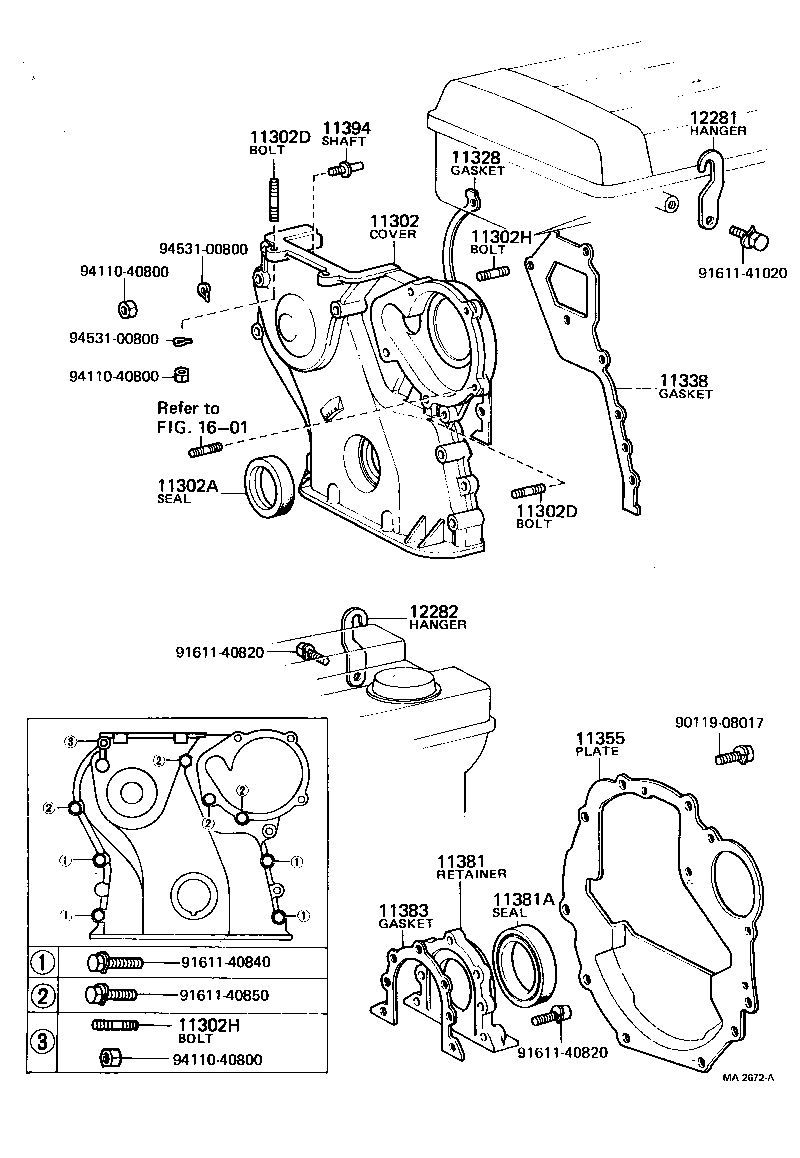

(7611-7902)2TG

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302D 11302H 11302H 11328 11338 11355 11381 11381A 11383 11394 12281 12282 1601 9011908017 9161140820 9161140820 9161140840 9161140850 9161141020 9411040800 9411040800 9411040800 9453100800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-26010

2T,2TB..TE47,51

 1
11302-88220

2TG..TE47

 1
11321-25010

2T,2TB..TE3#,47

 1
11321-88220

2TG..TE47

 1
11321-26010

2T,2TB..TE47,51

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38002

2T,2TB..TE47,51

HTC3 38.5 58 11

 1
90311-38111

2TG..TE47

HTC3 38.5 58 11

 1
90311-38111

2T#..TE3#,47,51

HTC3 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08015

2TG..TE47

L=37,S=13.5&13.5

 2
90116-08057

2T#..TE3#,47,51

L=29,S=13&13

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08015

2TG..TE47

L=37,S=13.5&13.5

 2
90116-08057

2T#..TE3#,47,51

L=29,S=13&13

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90072-11618

2TG..TE47

L=88,S=10&10

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90072-11618

2TG..TE47

L=88,S=10&10

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25010

2T,2TB..TE3#,47,51

 1
11328-88220

2TG..TE47

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-88220

2TG..TE47

 1
11355 - PLATE, REAR END
11355-25011

2T#..TE3#,47,51..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2T#..TE3#,47,51

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2T#..TE3#,47,51

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2T#..TE3#,47,51

 1
11394 - SHAFT, CHAIN TENSHIONER
11394-34010

2TG..TE47

 1
11394-88210

2TG..TE47

 1
12281 - HANGER, ENGINE, NO.1
12281-25010

2T,2TB..TE3#,47,51

 1
12281-88220

2TG..TE47

 1
12282 - HANGER, ENGINE, NO.2
12281-88220

2TG..TE47

 1
12281-25010

2T,2TB..TE3#,47

 1
12281-88220

2TG..TE47..RHD

 1
12281-26010

2T,2TB..TE3#,47,51

 1
Common parts
90119-08017
91611-40820
91611-40840
91611-40850
91611-41020
94110-40800
94531-00800
Linked diagrams
1601

(7408-8004)2T,2TB

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11383 12281 12282 12282 9011908201 9161140820 9161141020 9161141020 9161160825 9161160835 9161160850 9411040800 9451100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-26010

2T,2TB..TE47,51

 1
11302-88220

2TG..TE47

 1
11321-25010

2T,2TB..TE3#,47

 1
11321-88220

2TG..TE47

 1
11321-26010

2T,2TB..TE47,51

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38002

2T,2TB..TE47,51

HTC3 38.5 58 11

 1
90311-38111

2TG..TE47

HTC3 38.5 58 11

 1
90311-38111

2T#..TE3#,47,51

HTC3 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08015

2TG..TE47

L=37,S=13.5&13.5

 2
90116-08057

2T#..TE3#,47,51

L=29,S=13&13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25010

2T,2TB..TE3#,47,51

 1
11328-88220

2TG..TE47

 1
11355 - PLATE, REAR END
11355-25011

2T#..TE3#,47,51..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2T#..TE3#,47,51

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2T#..TE3#,47,51

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2T#..TE3#,47,51

 1
12281 - HANGER, ENGINE, NO.1
12281-25010

2T,2TB..TE3#,47,51

 1
12281-88220

2TG..TE47

 1
12282 - HANGER, ENGINE, NO.2
12281-88220

2TG..TE47

 1
12281-25010

2T,2TB..TE3#,47

 1
12281-88220

2TG..TE47..RHD

 1
12281-26010

2T,2TB..TE3#,47,51

 1
12282 - HANGER, ENGINE, NO.2
12281-88220

2TG..TE47

 1
12281-25010

2T,2TB..TE3#,47

 1
12281-88220

2TG..TE47..RHD

 1
12281-26010

2T,2TB..TE3#,47,51

 1
Common parts
90119-08201
91611-40820
91611-41020
91611-60825
91611-60835
91611-60850
94110-40800
94511-00800

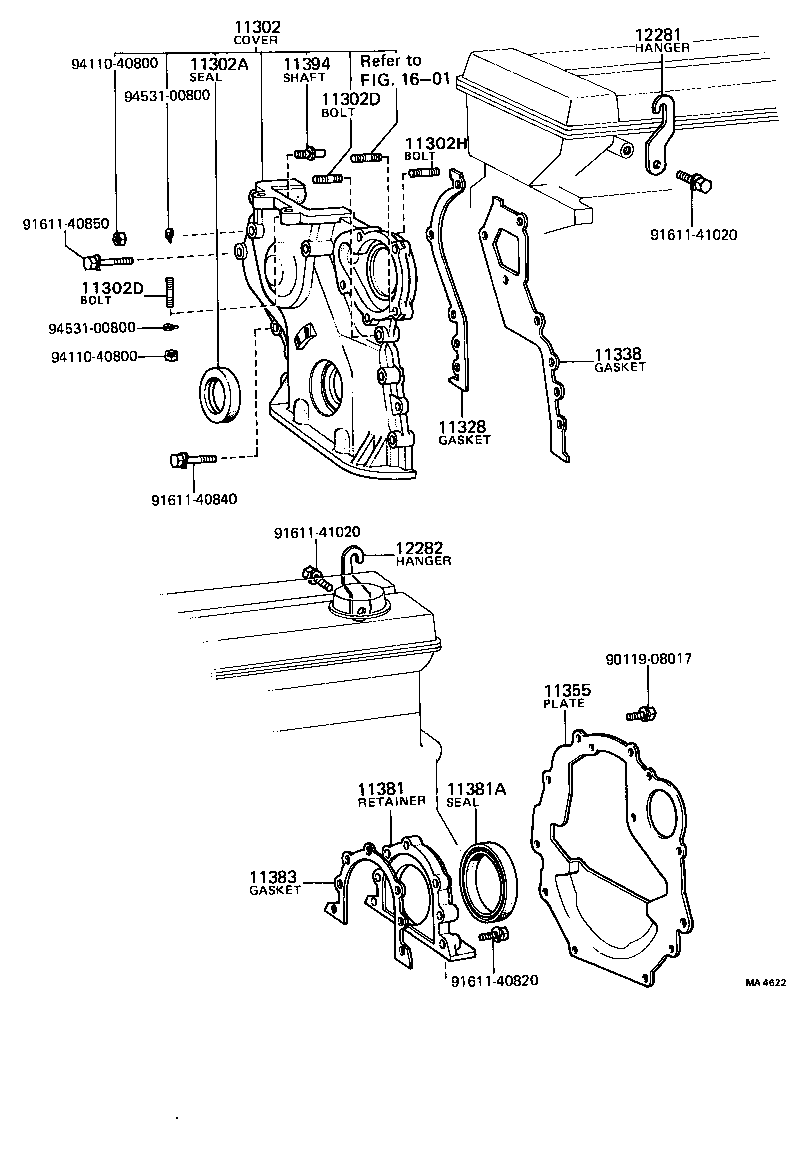

(7408-7611)2TG

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302D 11302H 11328 11338 11355 11381 11381A 11383 11394 12281 12282 1601 9011908017 9161140820 9161140840 9161140850 9161141020 9161141020 9411040800 9411040800 9453100800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-26010

2T,2TB..TE47,51

 1
11302-88220

2TG..TE47

 1
11321-25010

2T,2TB..TE3#,47

 1
11321-88220

2TG..TE47

 1
11321-26010

2T,2TB..TE47,51

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38002

2T,2TB..TE47,51

HTC3 38.5 58 11

 1
90311-38111

2TG..TE47

HTC3 38.5 58 11

 1
90311-38111

2T#..TE3#,47,51

HTC3 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08015

2TG..TE47

L=37,S=13.5&13.5

 2
90116-08057

2T#..TE3#,47,51

L=29,S=13&13

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08015

2TG..TE47

L=37,S=13.5&13.5

 2
90116-08057

2T#..TE3#,47,51

L=29,S=13&13

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90072-11618

2TG..TE47

L=88,S=10&10

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25010

2T,2TB..TE3#,47,51

 1
11328-88220

2TG..TE47

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-88220

2TG..TE47

 1
11355 - PLATE, REAR END
11355-25011

2T#..TE3#,47,51..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2T#..TE3#,47,51

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2T#..TE3#,47,51

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2T#..TE3#,47,51

 1
11394 - SHAFT, CHAIN TENSHIONER
11394-34010

2TG..TE47

 1
11394-88210

2TG..TE47

 1
12281 - HANGER, ENGINE, NO.1
12281-25010

2T,2TB..TE3#,47,51

 1
12281-88220

2TG..TE47

 1
12282 - HANGER, ENGINE, NO.2
12281-88220

2TG..TE47

 1
12281-25010

2T,2TB..TE3#,47

 1
12281-88220

2TG..TE47..RHD

 1
12281-26010

2T,2TB..TE3#,47,51

 1
Common parts
90119-08017
91611-40820
91611-40840
91611-40850
91611-41020
94110-40800
94531-00800
Linked diagrams
1601
