TE47R-MQZG (1974)
Toyota Corolla/Trueno

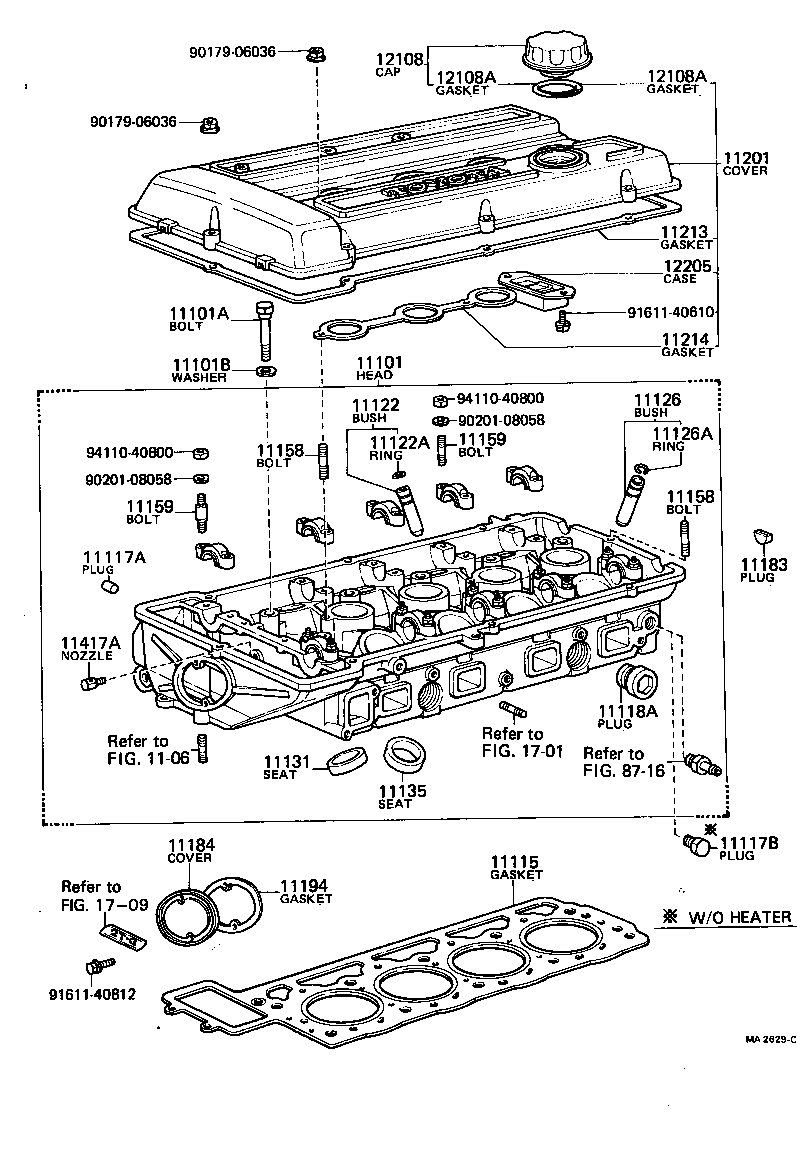

(7408-7611)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29088 |
2T..TE3#,47 |
1 | ||
| 11101-29226 |
2T..TE3#,47,51 |
1 | ||
| 11101-29295 |
2TG..TE47 |
1 | ||
| 11101-29227 |
2T..TE3#,47,51 |
1 | ||
| 11101-29107 |
2TG..TE47 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90072-70103 |
2TG..TE47 *12-1.25PX146-22 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2TG..TE47 |
10 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24246 |
2T,2TB..TE3#,47,51 OD=34,ID=24.5 |
3 | ||
| 90430-33133 |
2TG..TE47 OD=41,ID=32.5 |
6 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-26023 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11115-88220 |
2TG..TE47 |
1 | ||
| 11115-26022 |
2T,2TB..TE3#,47 |
1 | ||
| 11115-26021 |
2T,2TB..TE47 |
1 | ||
| 11115-26023 |
2T..TE31,47,51 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90072-33614 |
2TG..TE47 |
3 | ||
| 90341-24090 |
2T,2TB..TE3#,47,51 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53007 |
2T#..TE47,51 W/O HEATER |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-32028 |
2TG..TE47 L=14.5,OD=32 |
6 | ||
| 90341-32031 |
2TG..TE47 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-37020 |
2TG..TE47 |
4 | ||
| 11123-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11127-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11126-37020 |
2TG..TE47 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11131-26010 |
2TG..TE47 STD |
4 | ||
| 11131-25010 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11132-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11132-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11131-88222 |
2TG..TE47 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-26011 |
2TG..TE47 STD |
4 | ||
| 11136-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11135-26012 |
2TG..TE47 STD |
4 | ||
| 11135-25011 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-40618 |
2T,2TB..TE3#,47,51 L=27,S=9&9 |
6 | ||
| 90072-11617 |
2TG..TE47 L=35,S=11&11 |
10 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90072-11601 |
2TG..TE47 L=58.5,S=17.5&8 |
4 | ||
| 92132-60835 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 90116-08080 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90072-11601 |
2TG..TE47 L=58.5,S=17.5&8 |
4 | ||
| 92132-60835 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 90116-08080 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88210 |
2TG..TE47 |
2 | ||
| 11184 - COVER, CYLINDER HEAD, FRONT | ||||
| 11184-88260 |
2TG..TE47 |
1 | ||
| 11184-88220 |
2TG..TE47 |
1 | ||
| 11194 - GASKET, CYLINDER HEAD FRONT COVER | ||||
| 11194-88220 |
2TG..TE47 |
1 | ||
| 11194-88260 |
2TG..TE47 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-29038 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29066 |
2TG..TE47 |
1 | ||
| 11201-29125 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29067 |
2TG..TE47 |
1 | ||
| 11201-29037 |
2T,2TB..TE3#,47 |
1 | ||
| 11201-29125 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88221 |
2TG..TE47 |
1 | ||
| 11213-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-88221 |
2TG..TE47 |
1 | ||
| 11417A - NOZZLE, OIL | ||||
| 90072-73103 |
2TG..TE47 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T,2TB..TE47,51 |
1 | ||
| 12181-12903 |
2T,2TB..TE3#,47 |
1 | ||
| 12181-31020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12108-49015 |
2TG..TE47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2T..TE3#,47 |
1 | ||
| 90301-44049 |
2TG..TE47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2T..TE3#,47 |
1 | ||
| 90301-44049 |
2TG..TE47 |
1 | ||
| 12205 - CASE SUB-ASSY, VENTILATION | ||||
| 12205-88210 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-40612 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94611-10600 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 1709 | ||||
| 8716 | ||||

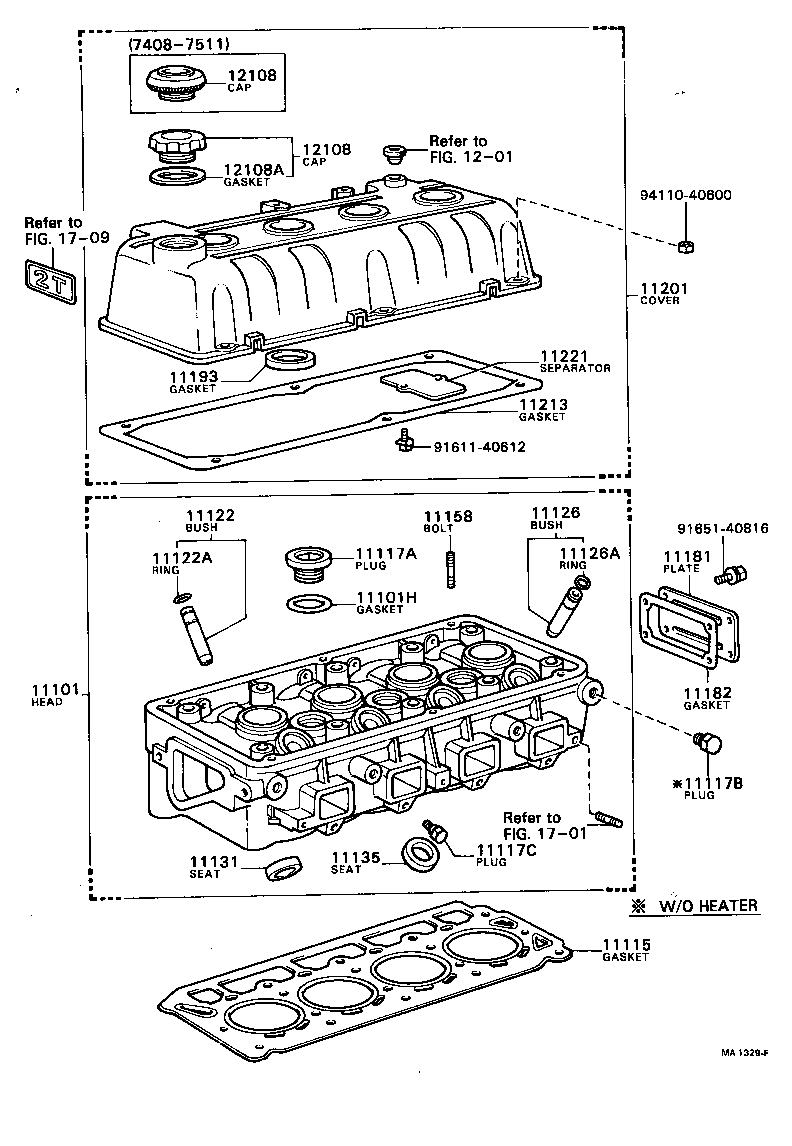

(7408-8004)2T,2TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29088 |
2T..TE3#,47 |
1 | ||
| 11101-29226 |
2T..TE3#,47,51 |
1 | ||
| 11101-29295 |
2TG..TE47 |
1 | ||
| 11101-29227 |
2T..TE3#,47,51 |
1 | ||
| 11101-29107 |
2TG..TE47 |
1 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24246 |
2T,2TB..TE3#,47,51 OD=34,ID=24.5 |
3 | ||
| 90430-33133 |
2TG..TE47 OD=41,ID=32.5 |
6 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-26023 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11115-88220 |
2TG..TE47 |
1 | ||
| 11115-26022 |
2T,2TB..TE3#,47 |
1 | ||
| 11115-26021 |
2T,2TB..TE47 |
1 | ||
| 11115-26023 |
2T..TE31,47,51 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90072-33614 |
2TG..TE47 |
3 | ||
| 90341-24090 |
2T,2TB..TE3#,47,51 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53007 |
2T#..TE47,51 W/O HEATER |
1 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90341-14004 |
2T,2TB..TE3#,47,51 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-37020 |
2TG..TE47 |
4 | ||
| 11123-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11127-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11126-37020 |
2TG..TE47 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11131-26010 |
2TG..TE47 STD |
4 | ||
| 11131-25010 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11132-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11132-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11131-88222 |
2TG..TE47 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-26011 |
2TG..TE47 STD |
4 | ||
| 11136-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11135-26012 |
2TG..TE47 STD |
4 | ||
| 11135-25011 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-40618 |
2T,2TB..TE3#,47,51 L=27,S=9&9 |
6 | ||
| 90072-11617 |
2TG..TE47 L=35,S=11&11 |
10 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-25011 |
2T,2TB..TE3#,47,51 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-29038 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29066 |
2TG..TE47 |
1 | ||
| 11201-29125 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29067 |
2TG..TE47 |
1 | ||
| 11201-29037 |
2T,2TB..TE3#,47 |
1 | ||
| 11201-29125 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88221 |
2TG..TE47 |
1 | ||
| 11213-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 | ||||
| 11221-25010 |
2T,2TB..TE3#,47,51 |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T,2TB..TE47,51 |
1 | ||
| 12181-12903 |
2T,2TB..TE3#,47 |
1 | ||
| 12181-31020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12108-49015 |
2TG..TE47 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T,2TB..TE47,51 |
1 | ||
| 12181-12903 |
2T,2TB..TE3#,47 |
1 | ||
| 12181-31020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12108-49015 |
2TG..TE47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2T..TE3#,47 |
1 | ||
| 90301-44049 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1709 | ||||
(7611-7902)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29088 |
2T..TE3#,47 |
1 | ||
| 11101-29226 |
2T..TE3#,47,51 |
1 | ||
| 11101-29295 |
2TG..TE47 |
1 | ||
| 11101-29227 |
2T..TE3#,47,51 |
1 | ||
| 11101-29107 |
2TG..TE47 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90072-70103 |
2TG..TE47 *12-1.25PX146-22 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2TG..TE47 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-26023 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11115-88220 |
2TG..TE47 |
1 | ||
| 11115-26022 |
2T,2TB..TE3#,47 |
1 | ||
| 11115-26021 |
2T,2TB..TE47 |
1 | ||
| 11115-26023 |
2T..TE31,47,51 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90072-33614 |
2TG..TE47 |
3 | ||
| 90341-24090 |
2T,2TB..TE3#,47,51 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53007 |
2T#..TE47,51 W/O HEATER |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-32028 |
2TG..TE47 L=14.5,OD=32 |
6 | ||
| 90341-32031 |
2TG..TE47 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-37020 |
2TG..TE47 |
4 | ||
| 11123-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-25021 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11127-25021 |
2T,2TB..TE3#,47,51 O/S 0.05 |
4 | ||
| 11122-88250 |
2TG..TE47 |
4 | ||
| 11126-37020 |
2TG..TE47 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
2T,2TB..TE3#,47,51 |
4 | ||
| 90520-13092 |
2TG..TE47 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11131-26010 |
2TG..TE47 STD |
4 | ||
| 11131-25010 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11132-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11132-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11131-88222 |
2TG..TE47 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-26011 |
2TG..TE47 STD |
4 | ||
| 11136-26010 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-26011 |
2TG..TE47 O/S 0.03 |
4 | ||
| 11136-25010 |
2T,2TB..TE3#,47,51 O/S 0.03 |
4 | ||
| 11135-26012 |
2TG..TE47 STD |
4 | ||
| 11135-25011 |
2T,2TB..TE3#,47,51 STD |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-40618 |
2T,2TB..TE3#,47,51 L=27,S=9&9 |
6 | ||
| 90072-11617 |
2TG..TE47 L=35,S=11&11 |
10 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-40618 |
2T,2TB..TE3#,47,51 L=27,S=9&9 |
6 | ||
| 90072-11617 |
2TG..TE47 L=35,S=11&11 |
10 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90072-11601 |
2TG..TE47 L=58.5,S=17.5&8 |
4 | ||
| 92132-60835 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 90116-08080 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90072-11601 |
2TG..TE47 L=58.5,S=17.5&8 |
4 | ||
| 92132-60835 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 90116-08080 |
2TG..TE47 L=51,S=16&16 |
16 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88210 |
2TG..TE47 |
2 | ||
| 11184 - COVER, CYLINDER HEAD, FRONT | ||||
| 11184-88260 |
2TG..TE47 |
1 | ||
| 11184-88220 |
2TG..TE47 |
1 | ||
| 11194 - GASKET, CYLINDER HEAD FRONT COVER | ||||
| 11194-88220 |
2TG..TE47 |
1 | ||
| 11194-88260 |
2TG..TE47 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-29038 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29066 |
2TG..TE47 |
1 | ||
| 11201-29125 |
2T,2TB..TE47,51 |
1 | ||
| 11201-29067 |
2TG..TE47 |
1 | ||
| 11201-29037 |
2T,2TB..TE3#,47 |
1 | ||
| 11201-29125 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88221 |
2TG..TE47 |
1 | ||
| 11213-25010 |
2T,2TB..TE3#,47,51 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-88221 |
2TG..TE47 |
1 | ||
| 11417A - NOZZLE, OIL | ||||
| 90072-73103 |
2TG..TE47 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2T,2TB..TE47,51 |
1 | ||
| 12181-12903 |
2T,2TB..TE3#,47 |
1 | ||
| 12181-31020 |
2T,2TB..TE3#,47,51 |
1 | ||
| 12108-49015 |
2TG..TE47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2T..TE3#,47 |
1 | ||
| 90301-44049 |
2TG..TE47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2T..TE3#,47 |
1 | ||
| 90301-44049 |
2TG..TE47 |
1 | ||
| 12205 - CASE SUB-ASSY, VENTILATION | ||||
| 12205-88210 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 90179-06036 | ||||
| 90201-08058 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 1709 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
