TE47R-MN (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Feb 1979
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )

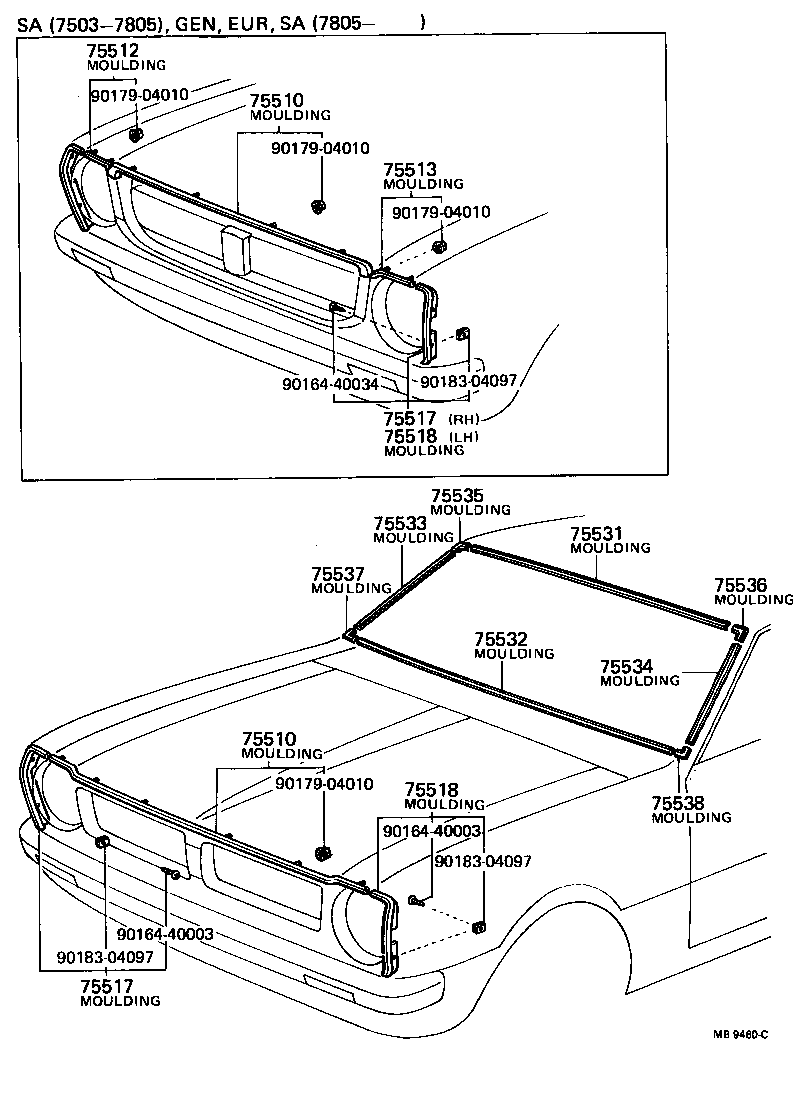

Click highlighted areas on diagram

diagram 75510 75510 75512 75513 75517 75517 75518 75518 75531 75532 75533 75534 75535 75536 75537 75538 9016440003 9016440003 9016440034 9017904010 9017904010 9017904010 9017904010 9018304097 9018304097 9018304097
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75571-12090

KE5#,TE47,51..CP,LB

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-12070

KE5#,TE47,51..CP,LB

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12150

KE5#,TE47,51..CP,LB

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75533-12150

KE5#,TE47,51..CP,LB

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-12030

KE5#,TE47,51..CP,LB

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75541-12030

KE5#,TE47,51..CP,LB

 1
75537 - MOULDING, WINDSHIELD CORNER, LOWER RH
75543-12030

KE5#,TE47,51..CP,LB

 1
75538 - MOULDING, WINDSHIELD CORNER, LOWER LH
75543-12030

KE5#,TE47,51..CP,LB

 1
Common parts
90164-40003
90164-40034
90179-04010
90183-04097
