TE47R-MN (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Feb 1979
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )CP,DV,HT,SED,WG

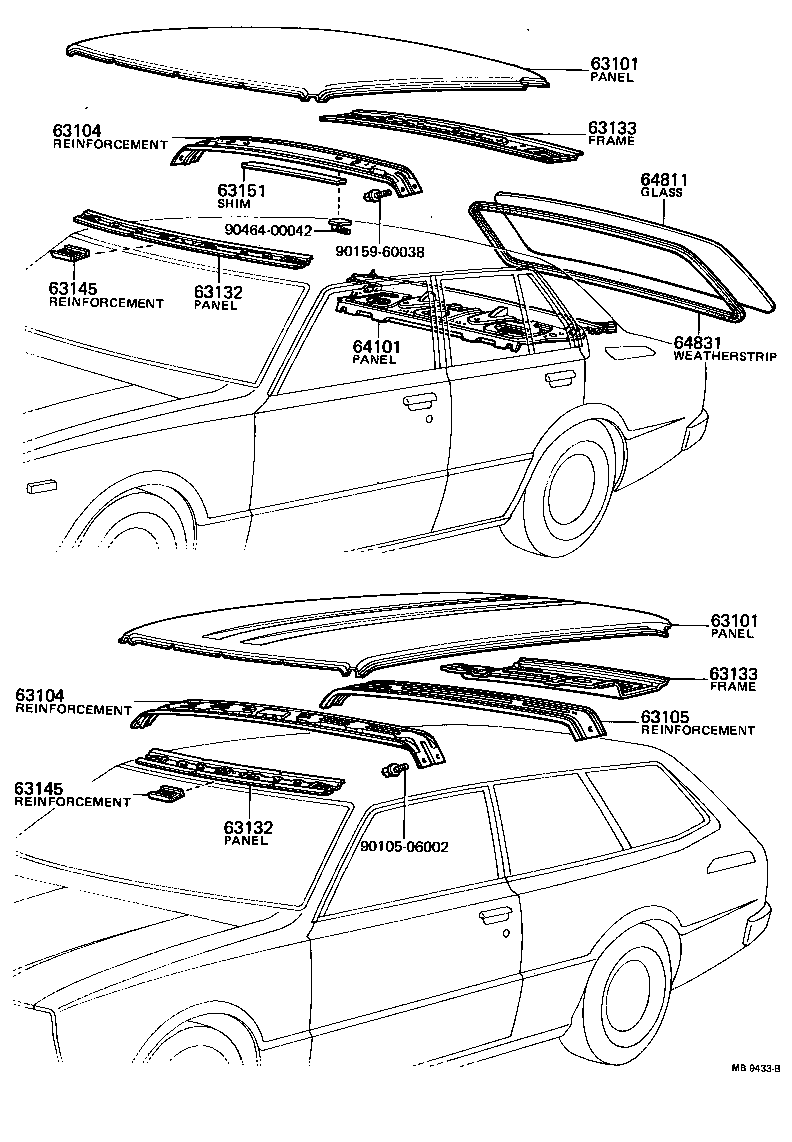

Click highlighted areas on diagram

diagram 63101 63101 63104 63104 63105 63132 63132 63133 63133 63145 63145 63151 64101 64811 64831 9010506002 9015960038 9046400042
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-12090

TE47

 1
63101 - PANEL SUB-ASSY, ROOF
63111-12090

TE47

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-12040

TE47

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-12040

TE47

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12060

KE5#,TE47,51..CP,LB

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12060

KE5#,TE47,51..CP,LB

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12070

TE47

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12070

TE47

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-12010

KE3#,5#,TE3#,47,51

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-12010

KE3#,5#,TE3#,47,51

 1
63151 - SHIM, ROOF REINFORCEMENT
63153-12010

KE30,36,50,TE3#,47,51

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12110

TE47

 1
64101-12112

TE47

 1
64101-12111

TE47

 1
64811 - GLASS, BACK WINDOW
64801-12080

TE47

*EHTT,T=4.0,100W

 1
64811-12250

TE47..GEN

*TT,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-12140

TE47

 1
Common parts
90105-06002
90159-60038
90464-00042
