TE47R-MN (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7701)TE47

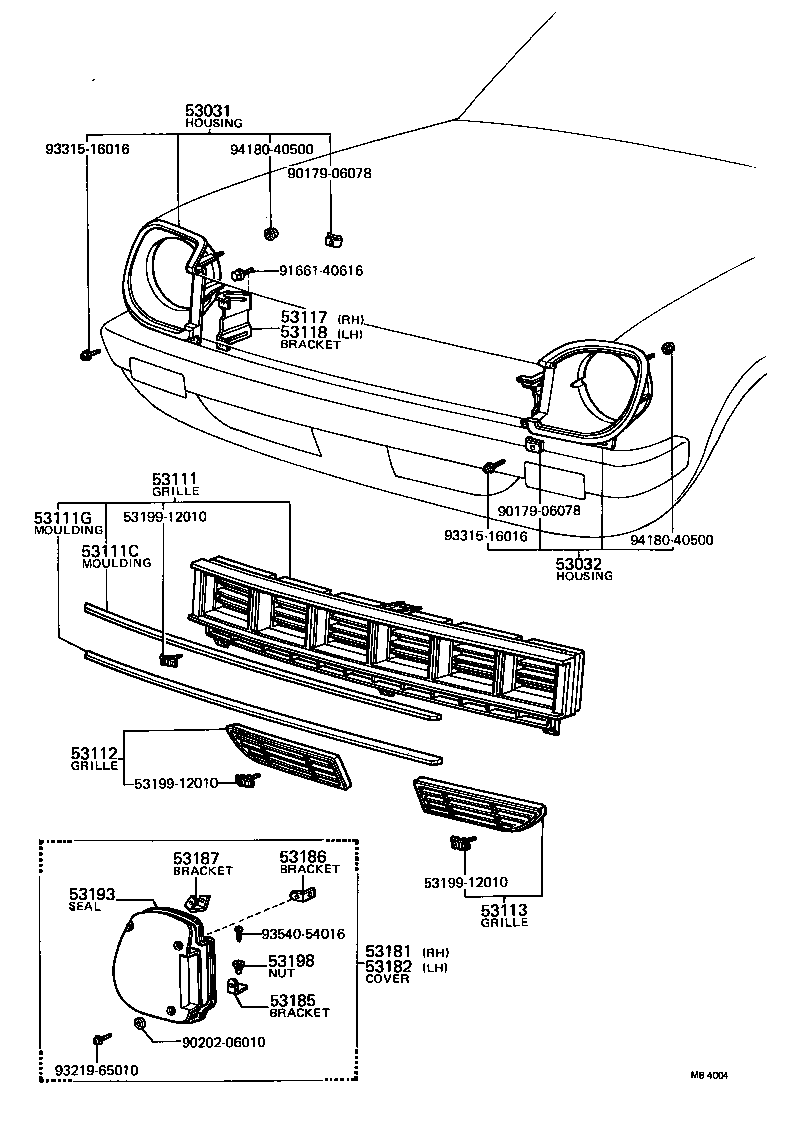

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19205 |
TE47..LT |
1 | ||
| 53131-19215 |
TE47 |
1 | ||
| 53131-19217 |
TE47 |
1 | ||
| 53131-19216 |
TE47 |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19205 |
TE47..LT |
1 | ||
| 53132-19215 |
TE47 |
1 | ||
| 53132-19217 |
TE47 |
1 | ||
| 53132-19216 |
TE47 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19326 |
TE47 |
1 | ||
| 53101-19295 |
TE47..LT |
1 | ||
| 53101-19325 |
TE47 |
1 | ||
| 53100-19025 |
TE47 |
1 | ||
| 53111C - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-12020 |
TE47 |
1 | ||
| 53121-12070 |
TE47 |
1 | ||
| 53121-12021 |
TE47 |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-12021 |
TE47 |
1 | ||
| 53122-12060 |
TE47 |
1 | ||
| 53122-12020 |
TE47 |
1 | ||
| 53112 - GRILLE, RADIATOR, RH OR UPPER | ||||
| 53112-12020 |
TE47 |
1 | ||
| 53113 - GRILLE, RADIATOR, LH OR LOWER | ||||
| 53113-12060 |
TE47 |
1 | ||
| 53117 - BRACKET, RADIATOR GRILLE SUPPORT, RH | ||||
| 53055-12010 |
TE47 |
1 | ||
| 53117-12060 |
TE47 |
1 | ||
| 53055-12011 |
TE47 |
1 | ||
| 53118 - BRACKET, RADIATOR GRILLE SUPPORT, LH | ||||
| 53118-12050 |
TE47 |
1 | ||
| 53056-12010 |
TE47 |
1 | ||
| 53056-12011 |
TE47 |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53107-19015 |
TE47 |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53108-19015 |
TE47 |
1 | ||
| 53185 - BRACKET, HEADLAMP COVER MOUNTING, LOWER | ||||
| 53185-12010 |
TE47 |
2 | ||
| 53186 - BRACKET, HEADLAMP COVER MOUNTING, INNER | ||||
| 53186-12010 |
TE47 |
2 | ||
| 53187 - BRACKET, HEADLAMP COVER MOUNTING, OUTER | ||||
| 53188-12010 |
TE47 LH |
1 | ||
| 53187-12010 |
TE47 RH |
1 | ||
| 53193 - SEAL, HEADLAMP COVER | ||||
| 53183-12010 |
TE47 RH |
1 | ||
| 53184-12010 |
TE47 LH |
1 | ||
| 53198 - NUT, HEADLAMP COVER MOUNTING | ||||
| 53198-12010 |
TE47 |
6 | ||
| Common parts | ||||
| 53199-12010 | ||||
| 90179-06078 | ||||
| 90202-06010 | ||||
| 91661-40616 | ||||
| 93219-65010 | ||||
| 93315-16016 | ||||
| 93540-54016 | ||||
| 94180-40500 | ||||
