Toyota Corolla/trueno TE47 INSTRUMENT PANEL & GLOVE COMPARTMENT

Manufacturers Home
Toyota
GR
COROLLA/TRUENO
TE47R-KZB (1974)
5501 - INSTRUMENT PANEL & GLOVE COMPARTMENT

TE47R-KZB (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Feb 1979

Engine 2TB

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7408-7701)KE50,TE47,51..RHD

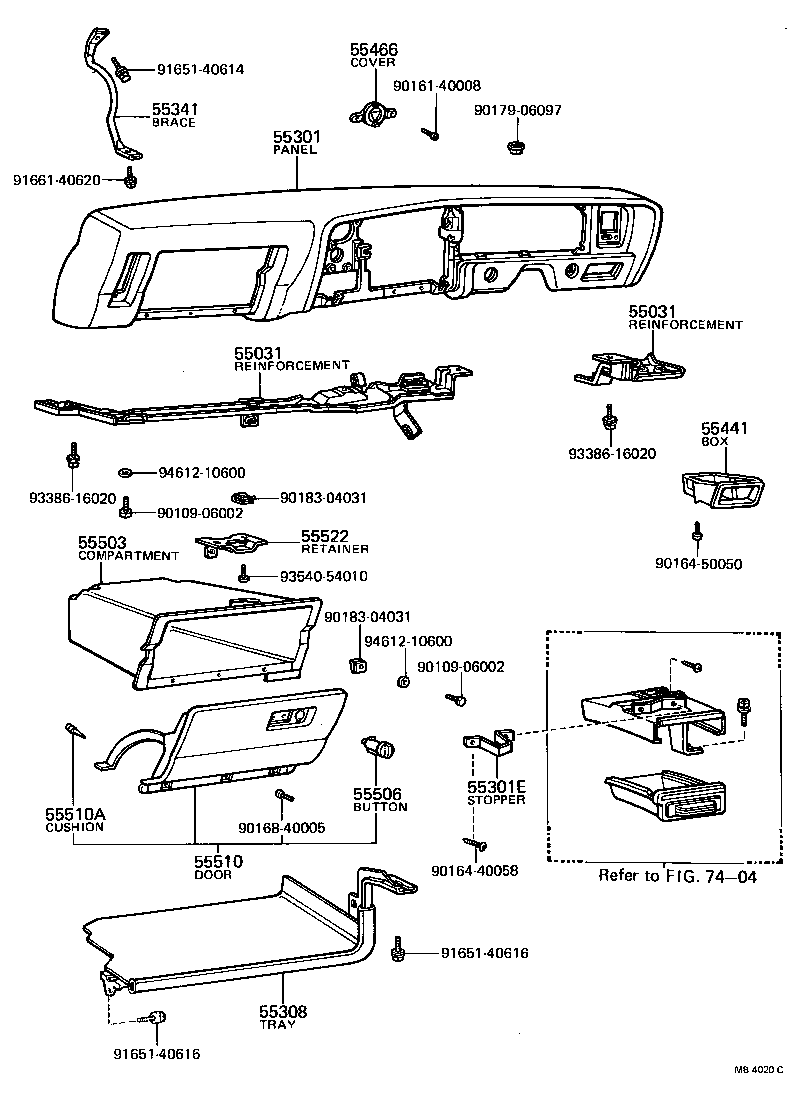

Click highlighted areas on diagram

Part #	Description	Period	Qty
55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1
55330-12020	KE50,TE47,51..RHD LH	08/1974 - 01/1977	1
55332-12020	KE50,TE47,51..RHD RH	08/1974 - 01/1977	1
55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1
55330-12020	KE50,TE47,51..RHD LH	08/1974 - 01/1977	1
55332-12020	KE50,TE47,51..RHD RH	08/1974 - 01/1977	1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-1202001	KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2#	08/1974 - 01/1977	1
55301-1202006	KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4#	08/1974 - 01/1977	1
55301E - STOPPER, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55418-12010	KE50,TE47,51..RHD	08/1974 - 01/1977	1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55601-12040	TE47..RHD	08/1974 - 11/1975	1
55601-12041	KE50,TE47,51..RHD	11/1975 - 01/1977	1
55601-12070	KE50,TE47,51..RHD	01/1977 - 05/1978	1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-12050	KE5#,TE47,51..(CP,LB)..RHD	08/1974 - 08/1979	1
55441 - BOX, INSTRUMENT PANEL
55441-12050	KE50,TE47,51	08/1974 - 01/1977	1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55581-12020	KE50,TE47,51..RHD	08/1974 - 01/1977	1
55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55560-12010	KE3#,50,TE3#,47,51	08/1974 - 05/1976	1
55520-14011	KE3#,50,TE3#,47,51	05/1976 - 01/1977	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1203001	KE50,TE47,51..RHD BLACK,BLACK,TRIM0#,2#	08/1974 - 01/1977	1
55550-1203006	KE50,TE47,51..RHD BROWN,BROWN,TRIM0#,4#	08/1974 - 01/1977	1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015	KE3#,5#,TE3#,47,51	08/1974 - 07/1981	2
55522 - RETAINER, GLOVE COMPARTMENT MALE
55521-14010	KE3#,50,TE3#,47,51	08/1974 - 01/1977	1
Common parts
90109-06002
90161-40008
90164-40058
90164-50050
90168-40005
90179-06097
90183-04031
91651-40614
91651-40616
91661-40620
93386-16020
93540-54010
94612-10600
Linked diagrams
7404

(7408-7701)KE50,TE47,51..RHD

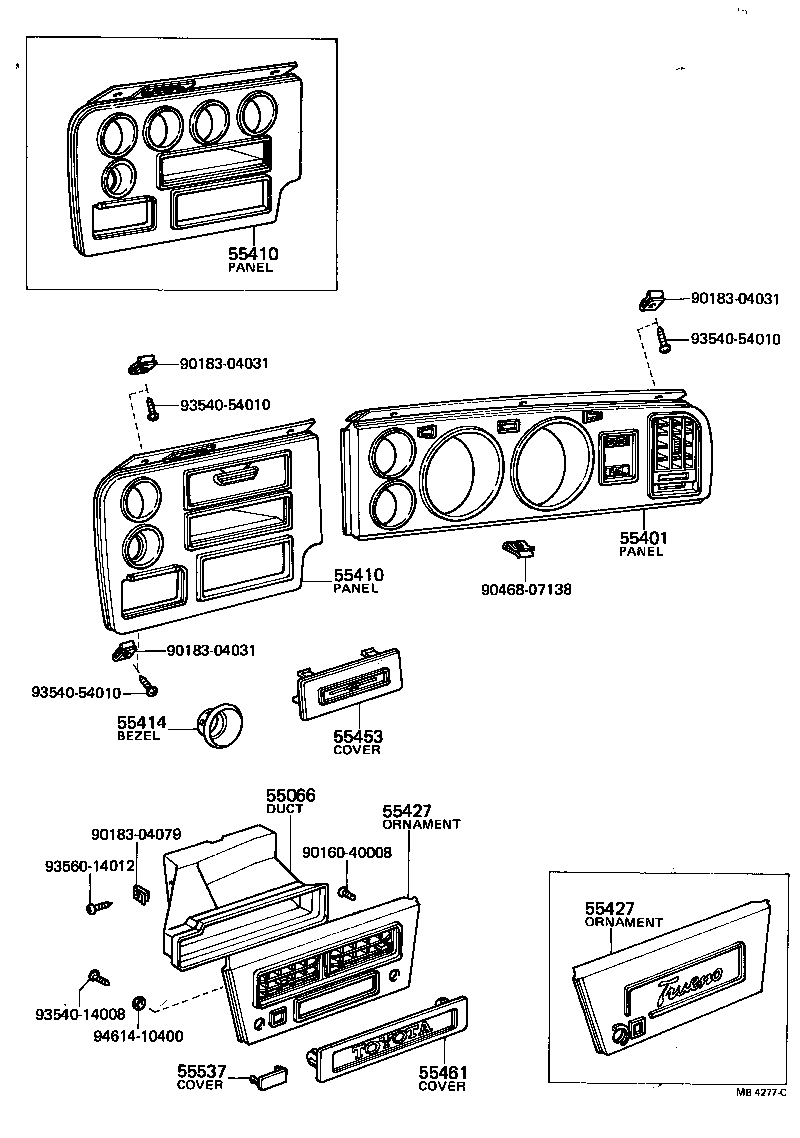

Click highlighted areas on diagram

Part #	Description	Period	Qty
55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER
55835-12030	KE50,TE47,51..RHD	08/1974 - 01/1977	1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-12120	TE47..RHD	08/1974 - 11/1975	1
55404-12240	TE47..RHD	11/1975 - 01/1977	1
55410-12370	TE47..RHD..(LT,ST)	01/1977 - 02/1979	1
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55405-12130	TE47..RHD..(LT,ST)	08/1974 - 01/1976	1
55405-12131	TE47..RHD..(LT,ST)	01/1976 - 01/1977	1
55405-12330	TE47..RHD..(LT,ST) W/STEREO	08/1974 - 01/1976	1
55405-12331	TE47..RHD..(LT,ST) W/STEREO	01/1976 - 01/1977	1
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55405-12130	TE47..RHD..(LT,ST)	08/1974 - 01/1976	1
55405-12131	TE47..RHD..(LT,ST)	01/1976 - 01/1977	1
55405-12330	TE47..RHD..(LT,ST) W/STEREO	08/1974 - 01/1976	1
55405-12331	TE47..RHD..(LT,ST) W/STEREO	01/1976 - 01/1977	1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-12030	KE3#,5#,TE3#,47,51	08/1974 - 07/1981	1
55427 - ORNAMENT, INSTRUMENT PANEL, CENTER
55406-12080	TE47..RHD	08/1974 - 01/1977	1
55413-12160	TE47 W/O HEATER	08/1974 - 01/1977	1
55427 - ORNAMENT, INSTRUMENT PANEL, CENTER
55406-12080	TE47..RHD	08/1974 - 01/1977	1
55413-12160	TE47 W/O HEATER	08/1974 - 01/1977	1
55453 - COVER, RADIO TUNER OPENING
55522-12020	KE50,TE47,51	08/1974 - 01/1977	1
55461 - COVER, HEATER CONTROL HOLE
55523-12020	TE47	11/1975 - 01/1977	1
Common parts
90160-40008
90183-04031
90183-04079
90468-07138
93540-14008
93540-54010
93560-14012
94614-10400
