TE47L-MQZGW (1977)
Toyota Corolla/Trueno
Production
Jan 1977
-
Feb 1979
Engine
2TG
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

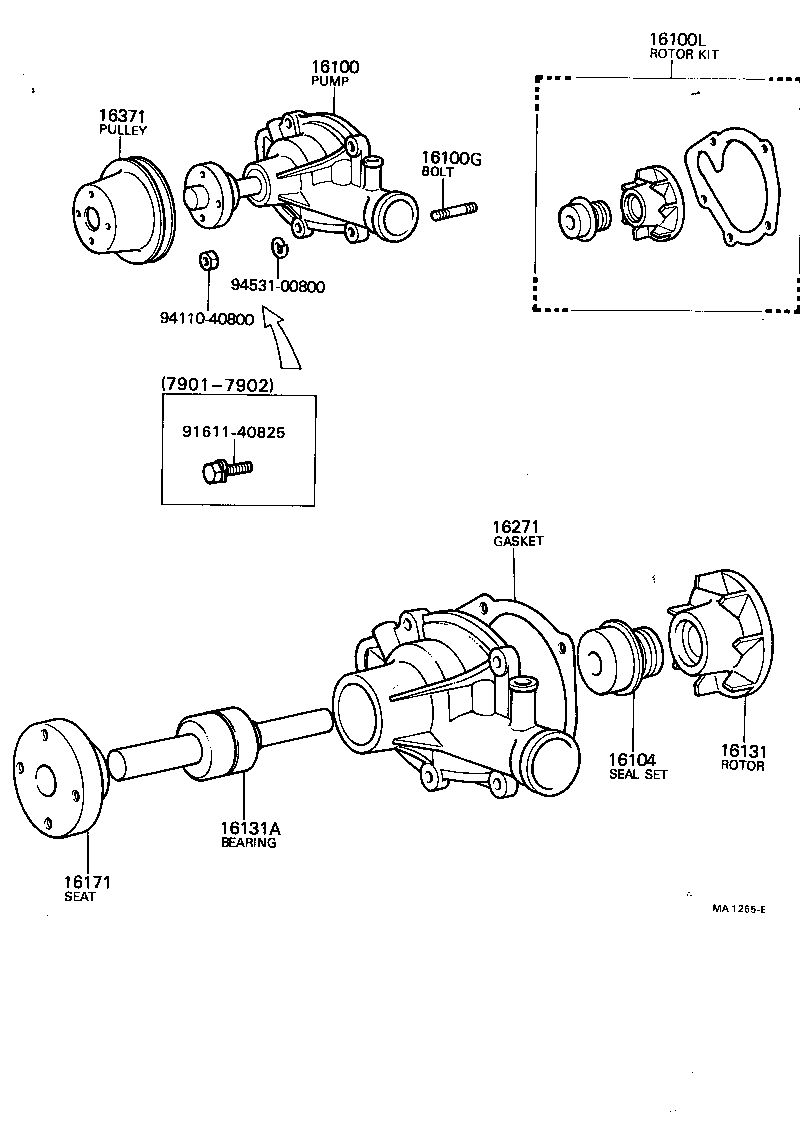

(7408-7902)2TG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-28010 |
2T,2TB..TE47,51 |
1 | ||
| 16100-88221 |
2TG..TE47 |
1 | ||
| 16100-25012 |
2T,2TB..TE3#,47,51 |
1 | ||
| 16100G - BOLT, STUD(FOR WATER PUMP SET) | ||||
| 90116-08009 |
2TG..TE47 L=32,S=13&13 |
2 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-25011 |
2T#..TE3#,47 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-22010 |
2TG..TE47 |
1 | ||
| 16104-22010 |
2T#..TE3#,47 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-25011 |
2T#..TE3#,47,51 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30035 |
2TG..TE47 WPB16124RS |
1 | ||
| 90369-30035 |
2T#..TE3#,47,51 WPB16124RS |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-31030 |
2TG..TE47 |
1 | ||
| 16171-31030 |
2T#..TE3#,47,51 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16129-25010 |
2T#..TE3#,47,51 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-25010 |
2T#..TE3#,47,51 |
1 | ||
| 16371-25020 |
2T,2TB..TE47,51 MTM=W/COOLER |
1 | ||
| 16371-25010 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||

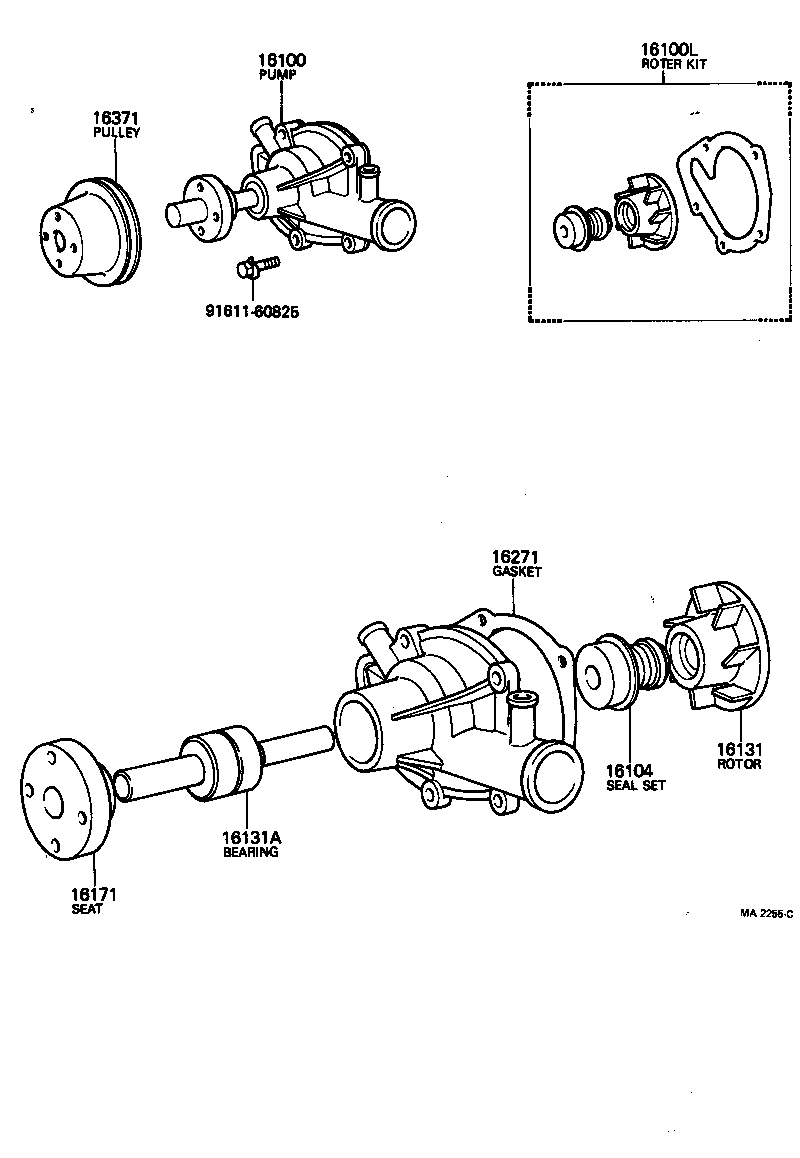

(7408-7708)2T,2TB ; (7708- )2T,2TB..TE3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-28010 |
2T,2TB..TE47,51 |
1 | ||
| 16100-88221 |
2TG..TE47 |
1 | ||
| 16100-25012 |
2T,2TB..TE3#,47,51 |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-25011 |
2T#..TE3#,47 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-22010 |
2TG..TE47 |
1 | ||
| 16104-22010 |
2T#..TE3#,47 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-25011 |
2T#..TE3#,47,51 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30035 |
2TG..TE47 WPB16124RS |
1 | ||
| 90369-30035 |
2T#..TE3#,47,51 WPB16124RS |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-31030 |
2TG..TE47 |
1 | ||
| 16171-31030 |
2T#..TE3#,47,51 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16129-25010 |
2T#..TE3#,47,51 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-25010 |
2T#..TE3#,47,51 |
1 | ||
| 16371-25020 |
2T,2TB..TE47,51 MTM=W/COOLER |
1 | ||
| 16371-25010 |
2TG..TE47 |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
