TE47L-MQZG (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Feb 1979
Engine 2TG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE47

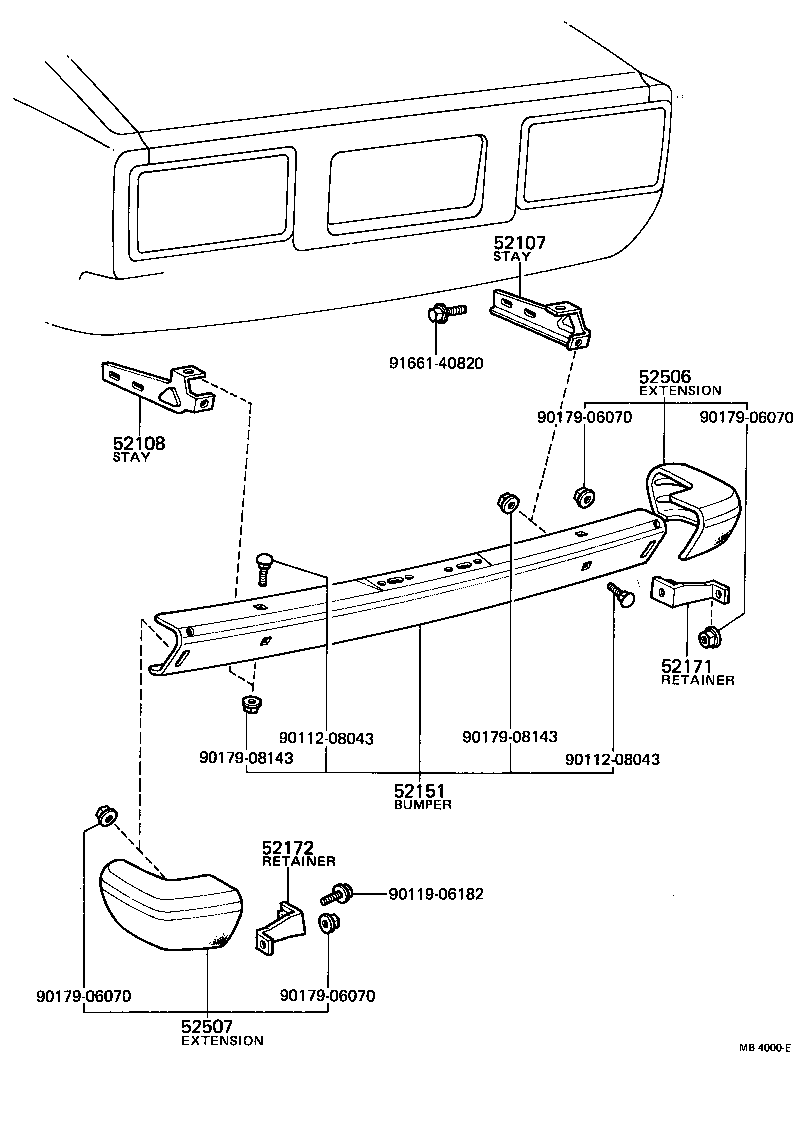

Click highlighted areas on diagram

diagram 52107 52108 52151 52171 52172 52506 52507 9011208043 9011208043 9011906182 9017906070 9017906070 9017906070 9017906070 9017908143 9017908143 9166140820
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-12080

TE47

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-12080

TE47

 1
52151 - BUMPER ASSY, REAR
52151-19275

KE5#,TE47,51..CP,LB

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52185-12030

TE47

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52186-12030

TE47

 1
52506 - EXTENSION SUB-ASSY, REAR BUMPER, RH
52405-19035

TE47

 1
52507 - EXTENSION SUB-ASSY, REAR BUMPER, LH
52406-19035

TE47

 1
Common parts
90112-08043
90119-06182
90179-06070
90179-08143
91661-40820
