TE47L-MN (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408- )

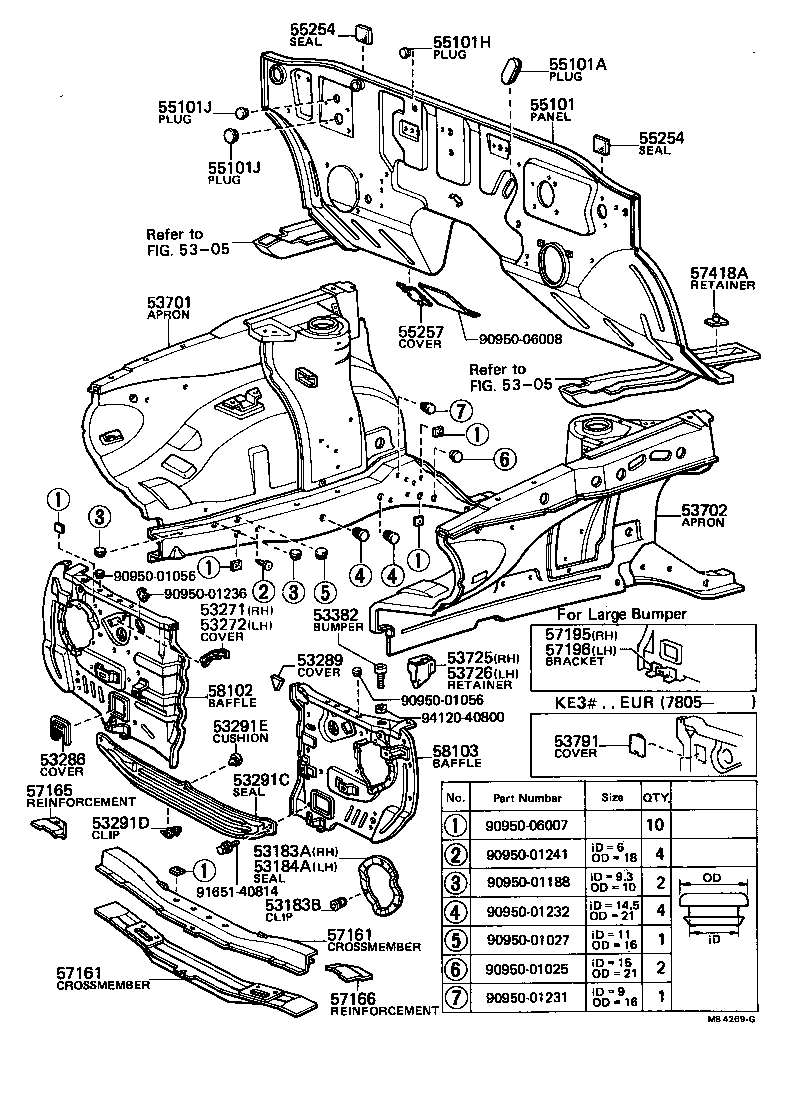

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-12100 |
KE50,TE47,51 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-12080 |
KE50,TE47,51 |
1 | ||
| 53725 - RETAINER, FRONT BUMPER STAY, RH | ||||
| 53707-12040 |
KE3#,55,TE3#,47..CP,DV,HT,SED,WG |
1 | ||
| 53726 - RETAINER, FRONT BUMPER STAY, LH | ||||
| 53708-12040 |
KE3#,55,TE3#,47..CP,DV,HT,SED,WG |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-12180 |
TE47,51..LHD |
1 | ||
| 55101-12170 |
KE3#,50..LHD |
1 | ||
| 55101-12182 |
TE47,51..LHD |
1 | ||
| 55101-12181 |
TE47,51..LHD |
1 | ||
| 55101-12171 |
KE3#,50..LHD |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01023 |
KE3#,50,TE51..EUR,GEN,SA W/O HEATER |
1 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01013 |
TE47..LT W/O CHOKE WIRE |
1 | ||
| 90950-01013 |
TE47..LT W/O CHOKE WIRE |
1 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01018 |
TE47..LHD OD=25,W/O COOLER |
2 | ||
| 90950-01061 |
TE47..LHD OD=35,W/O COOLER |
1 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01018 |
TE47..LHD OD=25,W/O COOLER |
2 | ||
| 90950-01061 |
TE47..LHD OD=35,W/O COOLER |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57162-12902 |
KE3#,5#,TE3#,47,51 LWR |
1 | ||
| 57161-12901 |
KE3#,50,TE3#,47,51 UPR |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57162-12902 |
KE3#,5#,TE3#,47,51 LWR |
1 | ||
| 57161-12901 |
KE3#,50,TE3#,47,51 UPR |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57167-12020 |
KE3#,50,TE3#,47,51 |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57168-12020 |
KE3#,50,TE3#,47,51 |
1 | ||
| 57418A - RETAINER, FRONT FLOOR UNDER REINFORCEMENT, LH | ||||
| 57321-12010 |
KE3#,TE47 |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53202-12030 |
TE47 |
1 | ||
| 53202-12031 |
KE50,TE47,51 |
1 | ||
| 53202-12031 |
TE47 |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53203-12031 |
KE50,TE47,51 |
1 | ||
| 53203-12031 |
TE47 |
1 | ||
| 53203-12030 |
TE47 |
1 | ||
| Common parts | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01188 | ||||
| 90950-01231 | ||||
| 90950-01232 | ||||
| 90950-01236 | ||||
| 90950-01241 | ||||
| 90950-06007 | ||||
| 90950-06008 | ||||
| 91651-40814 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 5305 | ||||
