TE47L-KZB (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2TB
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

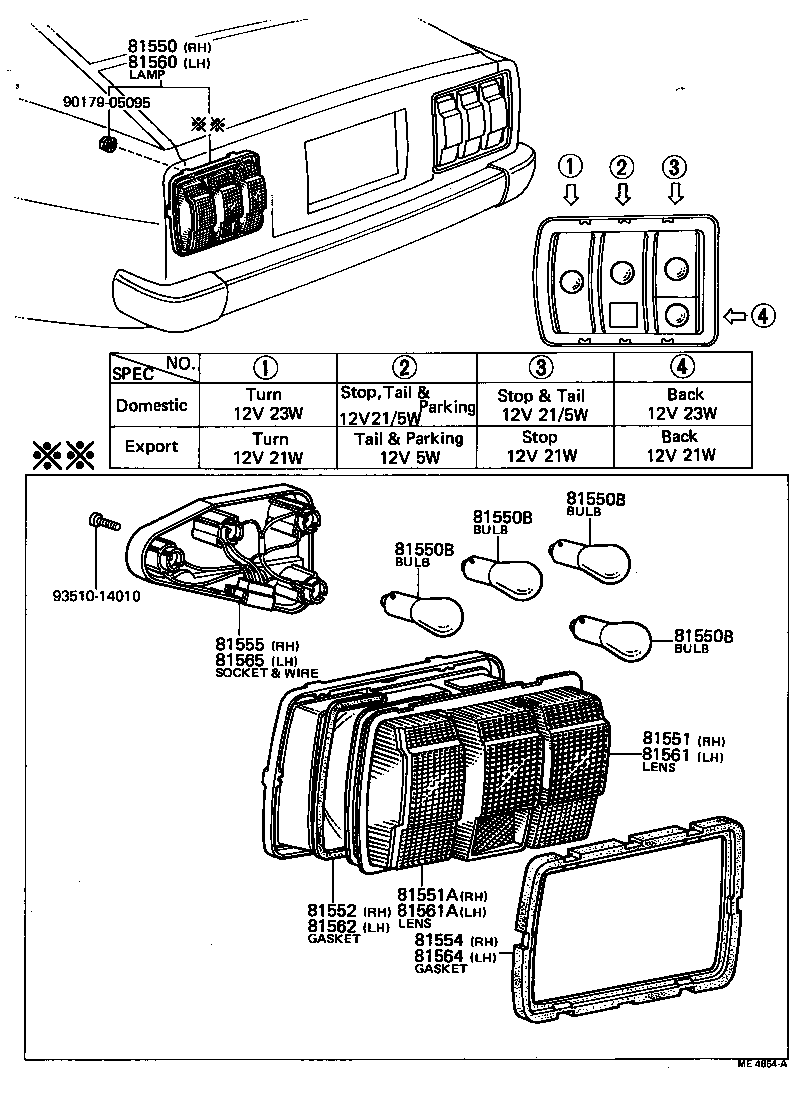

(7408-7701)TE47
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-19735 |
TE47 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12350 |
TE47 |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81557-12350 |
TE47 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81554-12350 |
TE47 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-12350 |
TE47 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12431 |
TE47 |
1 | ||
| 81555-12430 |
TE47 |
1 | ||
| 81555-12432 |
TE47 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-19715 |
TE47 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12350 |
TE47 |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81567-12350 |
TE47 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81554-12350 |
TE47 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-12350 |
TE47 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12430 |
TE47 |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14010 | ||||

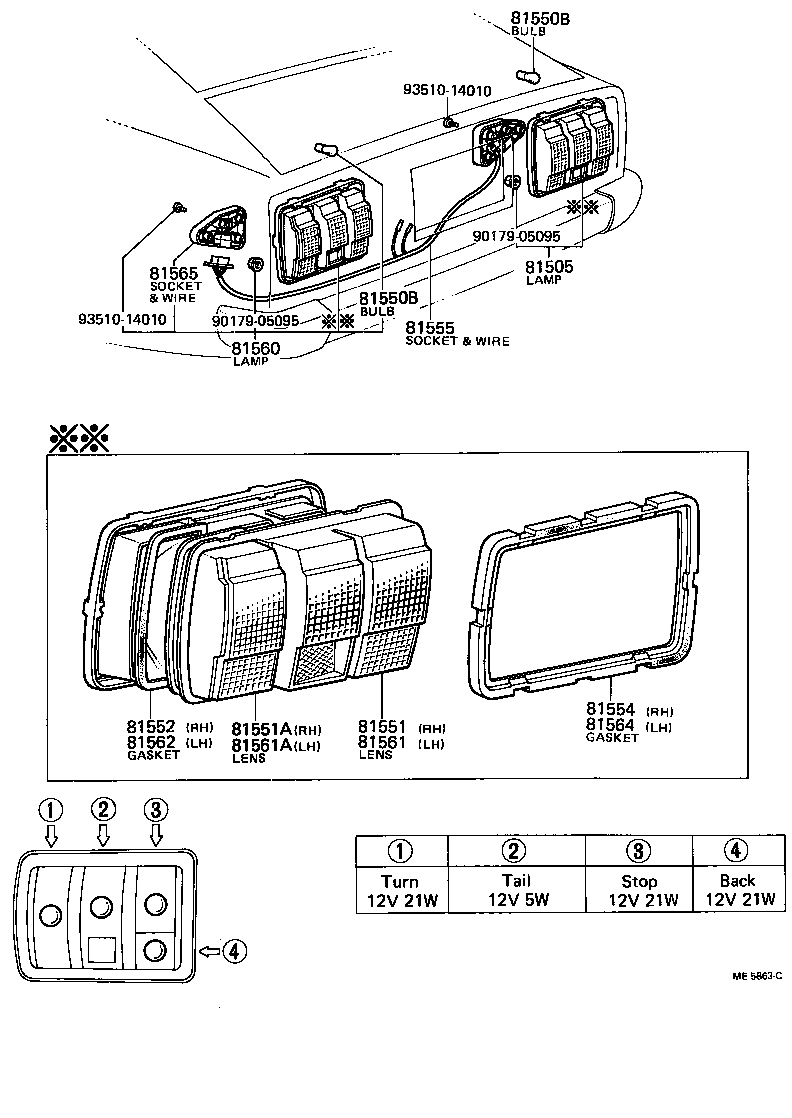

(7701-7902)TE47
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19135 |
TE47 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11050 |
TE47 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
KE3#,5#,TE3#,47,51 12V 21W,12V 21W |
6 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12350 |
TE47 |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81557-12350 |
TE47 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81554-12350 |
TE47 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-12350 |
TE47 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12431 |
TE47 |
1 | ||
| 81555-12430 |
TE47 |
1 | ||
| 81555-12432 |
TE47 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-19715 |
TE47 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12350 |
TE47 |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81567-12350 |
TE47 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81554-12350 |
TE47 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-12350 |
TE47 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12430 |
TE47 |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14010 | ||||
