TE47L-KZB (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Feb 1979
Engine
2TB
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)TE47

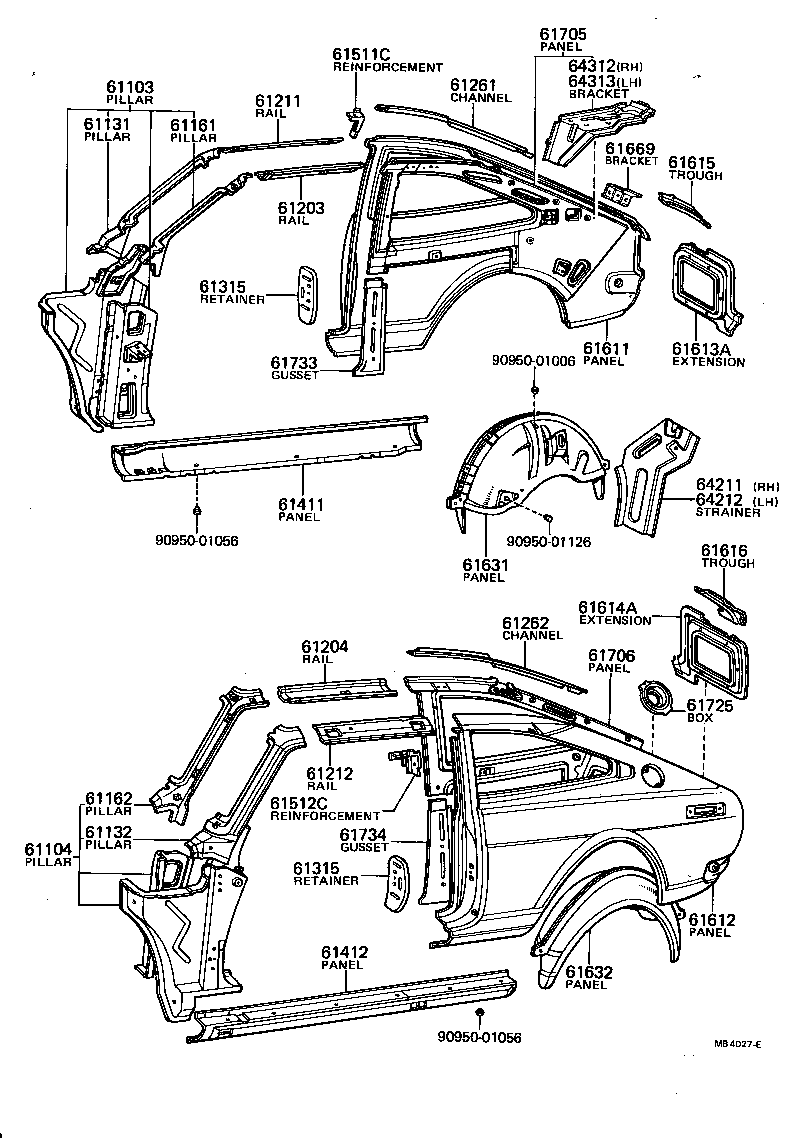

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-12160 |
KE50,TE47,51 |
1 | ||
| 61021-12060 |
TE47 |
1 | ||
| 61103-12161 |
KE50,TE47,51 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-12070 |
TE47 |
1 | ||
| 61104-12130 |
KE50,TE47,51 |
1 | ||
| 61104-12131 |
KE50,TE47,51 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12120 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12100 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-12070 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-12070 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-12120 |
TE47 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-12120 |
TE47 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12100 |
TE47 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12100 |
TE47 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-12090 |
TE47 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-12090 |
TE47 |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-20010 |
KE30,36,TE47 |
2 | ||
| 61309-12030 |
KE50,TE47,51 |
2 | ||
| 61309-12030 |
TE47 |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-20010 |
KE30,36,TE47 |
2 | ||
| 61309-12030 |
KE50,TE47,51 |
2 | ||
| 61309-12030 |
TE47 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12903 |
KE50,TE47,51 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12903 |
KE50,TE47,51 |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61623-12020 |
TE47 |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61624-12020 |
TE47 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-12070 |
TE47 |
1 | ||
| 61611-12190 |
TE47 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-12070 |
TE47 |
1 | ||
| 61612-12190 |
TE47 |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61625-12010 |
TE47 |
1 | ||
| 61614A - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-12010 |
TE47 |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12030 |
TE47 |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12030 |
TE47 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-12080 |
TE47 |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-12080 |
TE47 |
1 | ||
| 61669 - BRACKET, WASHER TANK INLET HOSE | ||||
| 61669-12010 |
TE47 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-12928 |
TE47 |
1 | ||
| 61705-12090 |
TE47 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-12928 |
TE47 |
1 | ||
| 61706-12090 |
TE47 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-12080 |
TE47 |
1 | ||
| 61733 - GUSSET, QUARTER, INNER RH | ||||
| 61733-12050 |
KE5#,TE47,51..CP,LB |
1 | ||
| 61734 - GUSSET, QUARTER, INNER LH | ||||
| 61734-12060 |
KE5#,TE47,51..CP,LB |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-12010 |
KE30,35,55,TE3#,47..CP,HT,SED |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-12010 |
KE30,35,55,TE3#,47..CP,HT,SED |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-12030 |
TE47 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-12030 |
TE47 |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
