TE37R-MDN (1975)
Toyota Corolla/Trueno
Production
Mar 1975
-
Jan 1977
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-8004)TE3#,47,51..RHD..MTM

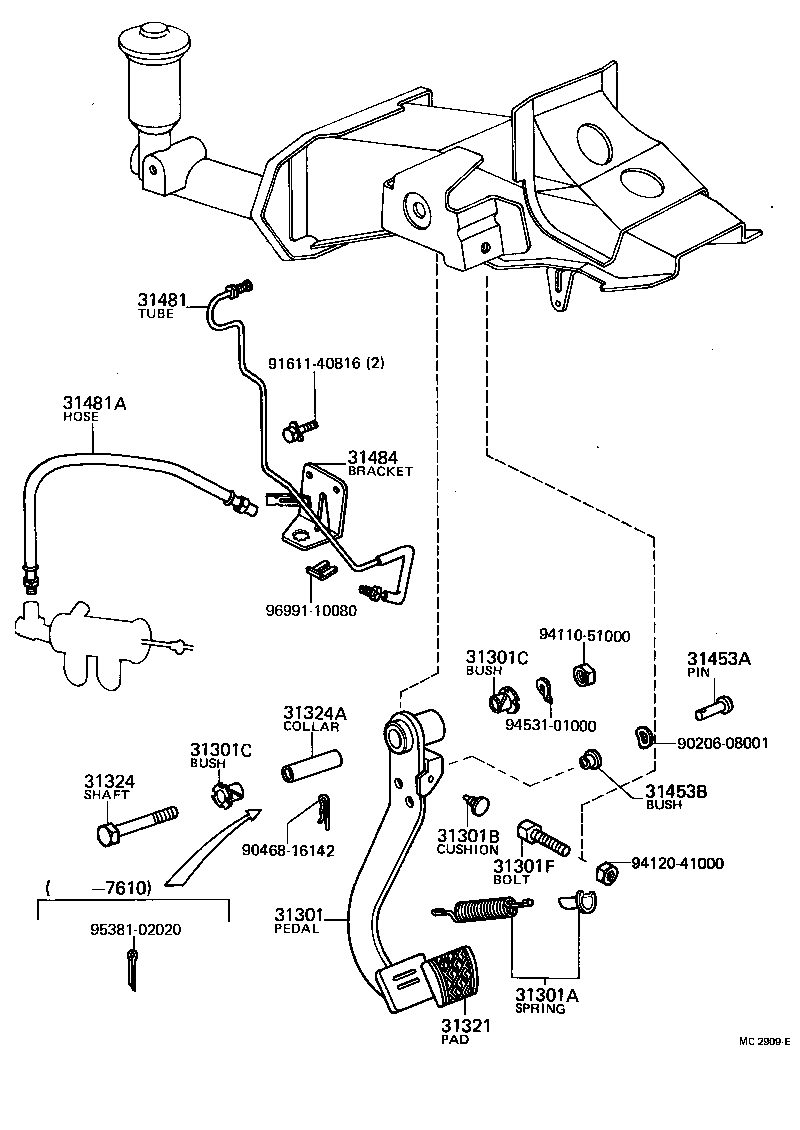

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12080 |
KE3#,5#..RHD..MTM |
1 | ||
| 31301-12090 |
TE3#,47,51..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-16477 |
KE3#,TE3#,47..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KE3#,5#,TE3#,47,51..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,5#,TE3#,47,51..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,5#,TE3#,47,51..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
KE3#,5#,TE3#,47,51..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
KE3#,5#,TE3#,47,51..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
KE3#,TE3#,47..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KE3#,5#,TE3#,47,51..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08040 |
TE3#,47,51..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12030 |
TE3#,47,51..RHD..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12010 |
TE3#,47,51..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91611-40816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 95381-02020 | ||||
| 96991-10080 | ||||
